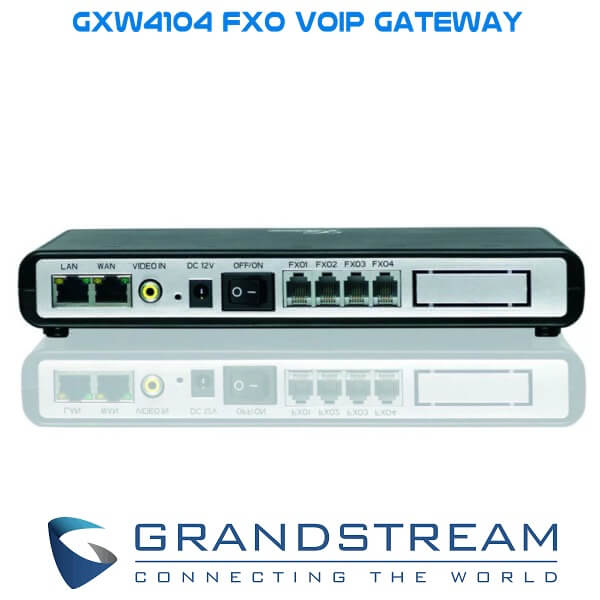

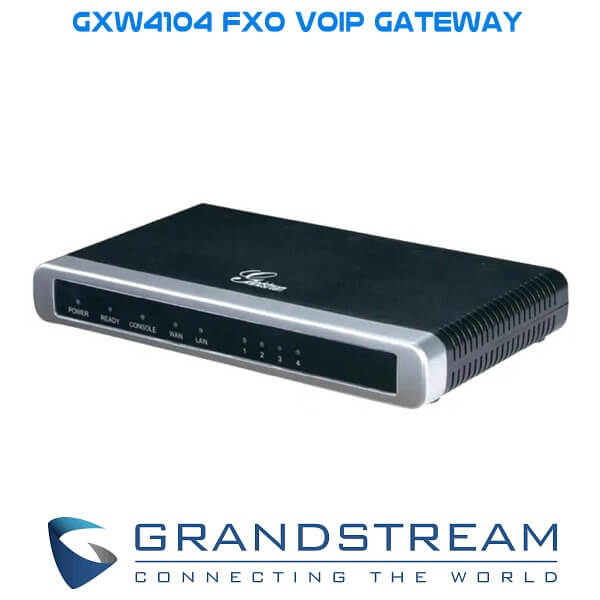

Grandstream GXW4104 Dubai
Grandstream GXW4104 Dubai - Image 2

Grandstream GXW4104 Dubai

Grandstream GXW4104 Dubai

The Grandstream GXW4104 Dubai is a 4-port FXO gateway that allows businesses to connect analog phone lines or fax machines to a digital VoIP network. It supports SIP and H.323 protocols and provides advanced features such as caller ID, call waiting, and call transfer.

Category:

Description

Grandstream GXW4104 Dubai

The Grandstream GXW4104 Dubai is a 4-port FXO gateway that provides a cost-effective solution for businesses that require integration of analog phone lines or fax machines into a digital VoIP network. The device is designed to be easy to install and configure, and it supports both SIP and H.323 protocols, making it compatible with a wide range of VoIP networks.

One of the key features of the Grandstream GXW4104 Dubai is its ability to provide advanced features such as caller ID, call waiting, and call transfer, which are essential for businesses that rely on analog lines. It also supports a wide range of voice codecs, including G.711, G.723, G.729A/B, G.726, and iLBC, to ensure superior audio quality.

The Grandstream GXW4104 Dubai is compact and lightweight, making it easy to install in small spaces. It can be easily mounted on a wall or placed on a desk, and it comes with a web-based interface for easy configuration and management.

The device also features advanced security features such as TLS and SRTP encryption to protect against unauthorized access and data breaches. It is compatible with a wide range of IP-PBX systems and can be used in conjunction with other Grandstream products to create a complete VoIP solution for businesses.

In addition to its advanced features, the Grandstream GXW4104 Dubai is also cost-effective, making it an ideal solution for small to medium-sized businesses that require a reliable and affordable way to integrate analog lines into a modern VoIP network.

Overall, the Grandstream GXW4104 Dubai is a powerful and reliable FXO gateway that provides businesses with a cost-effective solution for integrating analog phone lines or fax machines into a digital VoIP network. Its advanced features, superior audio quality, easy installation and management, and advanced security features make it an ideal choice for businesses of all sizes looking to upgrade their communication infrastructure.

Grandstream GXW4104 Specifications

Telephone Interfaces

  • GXW4104: 4RJ11 FXO ports
  • GXW4108: 8 RJ11 FXO ports

Network Interfaces 10M/100Mbps, dual RJ45 ports

LED indicators Power, Network and Line LEDs

Voice-over-Packet Capabilities G.168 compiant Echo Cancelation, Dynamic Jitter Buffer, Moderm detection & auto-switch

G.711

PTSN Fail-over Life Line PTSN failover on power failure

Voice Compression

  • G.711
  • G.723
  • G.726 (40/32/24/16)
  • G.729A/B/E
  • G.728
  • iLBC

DHCP Client Yes, Switched Mode or PPPoE

Fax over IP T.38 compliant Group 3 Fax Relay up to 14.4kpbs & auto-switch to G.711 for Fax Pass-through

QoS Diffserve, TOS, 802.1P/Q VLAN tagging

IP Transport RTP/RTCP

DTMF Method flexible DTMF transmission method, user interface of in-audio, RFC2833, and/or SIP info

IP Signaling SIP (RFC 3261)

SIP Server Profiles & Accounts Per

System Up to 2 distinct SIP server profiles per system and independent SIP account per port

Provisioning

  • TFTP
  • HTTP

Media SRTP

Management Syslog support, HTTPS, telnet, remote mamangement using web browser

Power Output: 12VDC Input: 100-240VAC / 50-60Hz

Environmental

  • Operational: 32-104°F or 0-40°C
  • Storage: 14-140°F or -10-60°C
  • Humidity: 10-90% Non-condensing

Dimensions (LxWxH) 230mm x 135mm x 35mm

Mounting Wall mount and desktop

Short & Long Haul REN3: Up to 150ft on 24AWG line

Caller ID Bellcore Type 1&2, ETSI, BT, NTT, and DTMF-based CID

Polarity Reversal/Wink Yes

EMC EN55022/EN5504 and FCC part 15 Class B

Safety UL
