Description

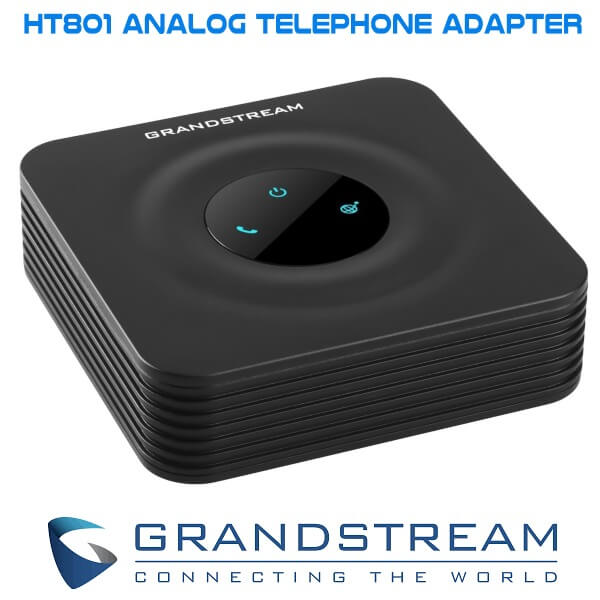

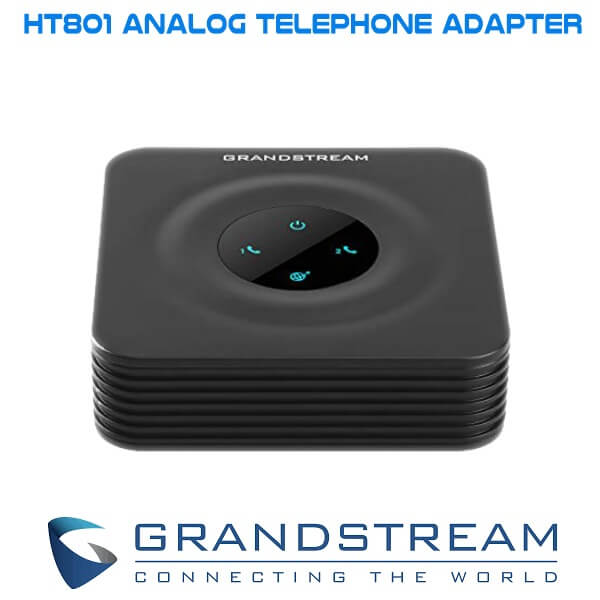

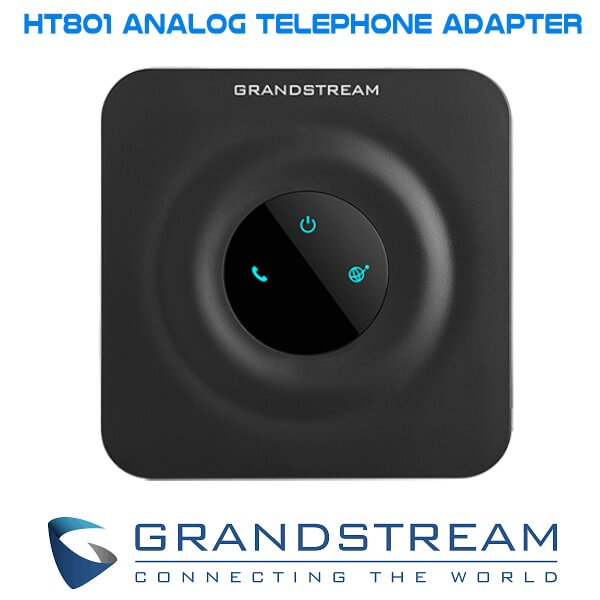

Grandstream HT801 Dubai
The Grandstream HT801 Dubai is a simple and cost-effective VoIP analog telephone adapter that allows you to connect analog devices, such as phones, faxes, and modems, to your VoIP network. It is designed for small businesses and home offices that want to extend the functionality of their existing analog equipment by integrating it with their VoIP communication system.
The device features a single FXS port, which enables you to connect one analog device to your VoIP network. It supports a range of voice codecs, including G.711, G.729A/B, G.723.1, and iLBC, ensuring high-quality audio for all types of calls.
The Grandstream HT801 Dubai is easy to install and configure, making it an ideal choice for businesses that don’t have a dedicated IT staff. It comes with an intuitive web interface that enables you to manage settings and troubleshoot issues quickly and easily. The device also supports auto-provisioning, which simplifies the deployment process and reduces the need for manual configuration.
The device features advanced security protocols, including TLS and SRTP, which provide encryption and authentication for your voice data. This ensures the safety and privacy of your communication, making it an ideal choice for businesses that deal with sensitive information.
The Grandstream HT801 Dubai is highly scalable, allowing you to add more units to your network as your business grows. It is also compatible with a range of third-party VoIP platforms and softswitches, making it a versatile choice for businesses that use multiple communication systems.
The device also features a range of advanced call features, including call waiting, caller ID, call transfer, and call forwarding. It also supports 3-way conference calling, which allows multiple parties to participate in a call simultaneously.
In summary, the Grandstream HT801 Dubai is a simple and cost-effective VoIP analog telephone adapter that provides a simple and effective solution for integrating analog devices into your VoIP network. Its single FXS port, advanced security protocols, and intuitive management tools make it an ideal choice for small businesses and home offices.
Grandstream HT801 Specifications

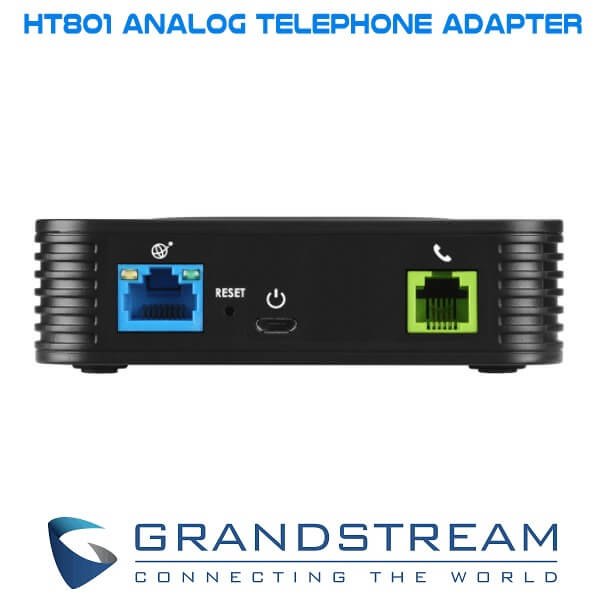

- Interfaces
- Telephone Interfaces One (1) FXS port
- Network Interfaces One (1) 10/100Mbps auto-sensing ethernet port (RJ45)
- LED Indicators POWER, INTERNET, PHONE
- Factory Reset Button Yes
- Voice, Fax, Modem
- Telephony Features Caller ID display or block, call waiting, flash, blind or attended transfer, forward, hold, do not disturb, 3-way conference
- Voice Codecs G.711 with Annex I (PLC) and Annex II (VAD/CNG), G.722, G.723.1, G.729A/B, G.726, iLBC, OPUS, dynamic jitter buffer, advanced line echo cancellation
- Fax Over IP T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-through
- Short/Long Haul Ring Load 5 REN: Up to 1km on 24 AWG
- Caller ID Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID
- Disconnect Methods Busy Tone, Polarity Reversal/Wink, Loop Current
- Signaling
- Network Protocols TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP, SSH, STUN, SIP (RFC3261), SIP over TCP/TLS, SRTP, TR-069
- QoS Layer 2 (802.1Q VLAN, SIP/RTP 802.1p) and Layer 3 (ToS, DiffServ, MPLS)
- DTMF Method In-audio, RFC2833 and/or SIP INFO
- Provisioning and Control HTTP, HTTPS, SSH, TFTP, TR-069, secure and automated provisioning using AES encryption, syslog
- Security
- Media SRTP
- Control TLS/SIPS/HTTPS
- Management Syslog support, SSH, remote management using web browser
- Physical
- Universal Power Supply Input: 100-240VAC, 50-60Hz Output: 5.0VDC/1.0A
- Environmental
- Operational: 32º – 104ºF or 0º – 40ºC
- Storage: 14º – 140ºF or -10º – 60ºC
- Humidity: 10 – 90% Non-condensing
- Dimension and Weight Dimensions: 100mm x 100mm x 29.5mm Weight: 102 g
- Compliance
- FCC: Part15B CE: EN55032, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1 RCM: AS/NZS CISPR22, AS/NZS60950.1, S003 K.21
