Description

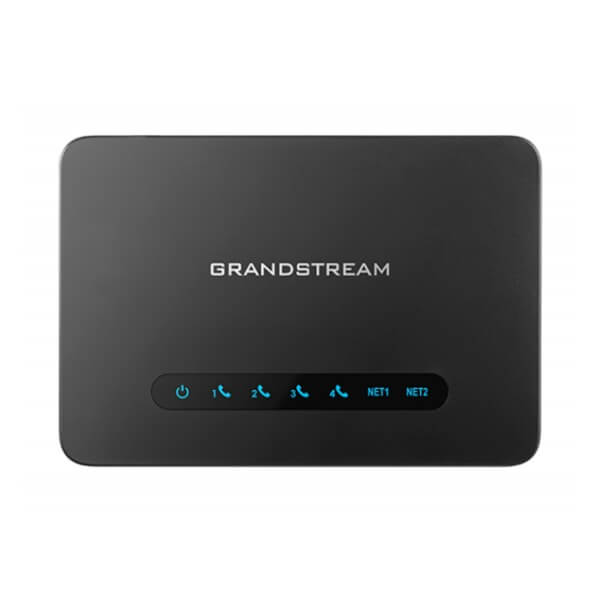

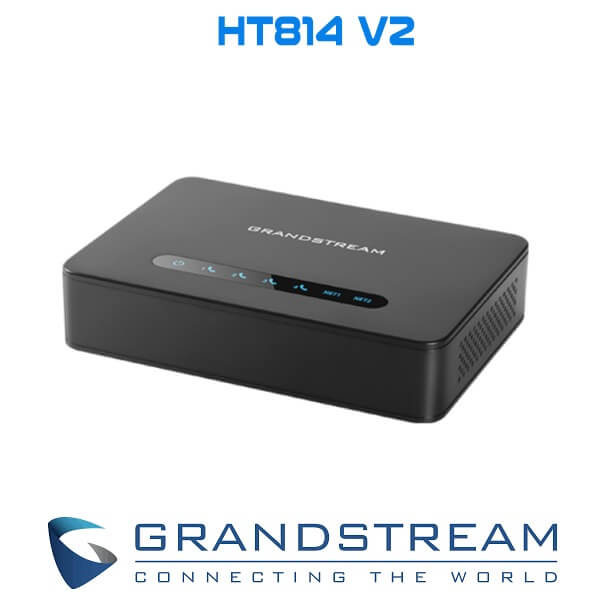

Grandstream HT814 v2 VoIP Gateway Dubai
The Grandstream HT814 v2 Dubai combines advanced features and high performance in a 4-port FXS VoIP gateway with an integrated Gigabit NAT router. Supporting two SIP profiles through its four FXS ports and dual Gigabit ports, it ensures efficient data handling with routing speeds reaching up to 100 Mbps. Prioritizing security, it employs TLS and SRTP encryption to safeguard calls and accounts. The Grandstream HT814 v2 Dubai includes LED indicators for POWER, NET1, NET2, PHONE1, PHONE2, PHONE3, and PHONE4, allowing users to monitor status effortlessly. Deployment and management are simplified with automated provisioning options such as TR-069 and XML configuration files. Its robust functionality extends to 3-way voice conferencing, T.38 Fax-over-IP support, and a failover SIP server that seamlessly switches to a secondary connection in case of disruptions. Designed to support multiple caller ID formats, the Grandstream HT814 v2 Dubai integrates effortlessly with Grandstream’s UCM series of IP PBXs, offering Zero Configuration provisioning for a hassle-free setup.
Features
- Supports 2 SIP profiles through 4 FXS ports and dual Gigabit ports
- Includes a built-in NAT router which can handle routing speeds up to 100MBps
- TLS and SRTP security encryption technology to protect calls and accounts
- LED Indicators – POWER, NET1, NET2, PHONE1, PHONE2, PHONE3, PHONE4
- Automated provisioning options include TR-069 and XML config files
- Supports 3-way voice conferencing
- Failover SIP server automatically switches to secondary server if main server loses connection
- Supports T.38 Fax for creating Fax-over-IP
- Supports a wide range of caller ID formats
- Use with Grandstream’s UCM series of IP PBXs for Zero Configuration provisioning
Specifications
| LINES | 4 lines |
| AUDIO CONFERENCING | 3-Way Voice Conferencing Per Port |

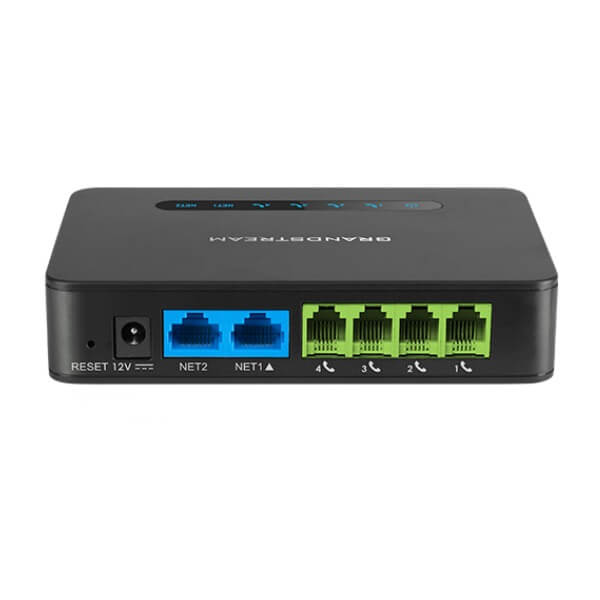

| TELEPHONE INTERFACES | Four(4) RJ11 FXS ports; can be expanded by peering with an FXS gateway |
| NETWORK INTERFACES | Two (2) 10/100/1000Mbps RJ45 ports |
| LED INDICATORS | POWER, NET1, NET2, PHONE1, PHONE2, PHONE3, PHONE4 |
| TELEPHONY FEATURES | Caller ID display or block, call waiting, flash, blind or attended transfer, forward, hold, do not disturb, 3-way conference |
| FAX OVER IP | T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-through |
