Description

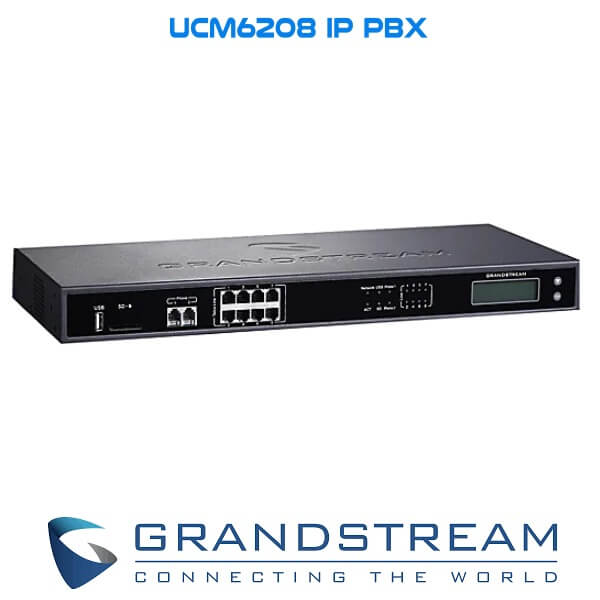

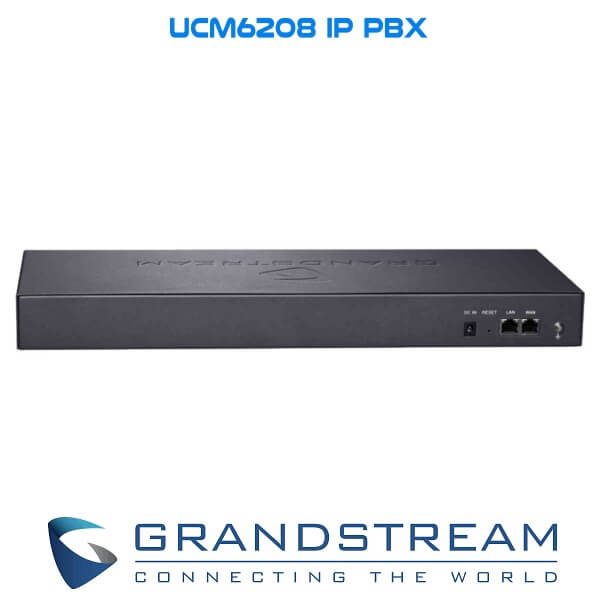

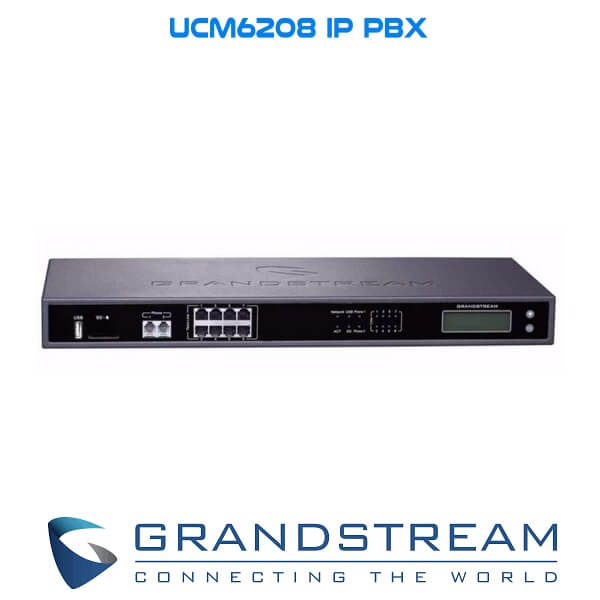

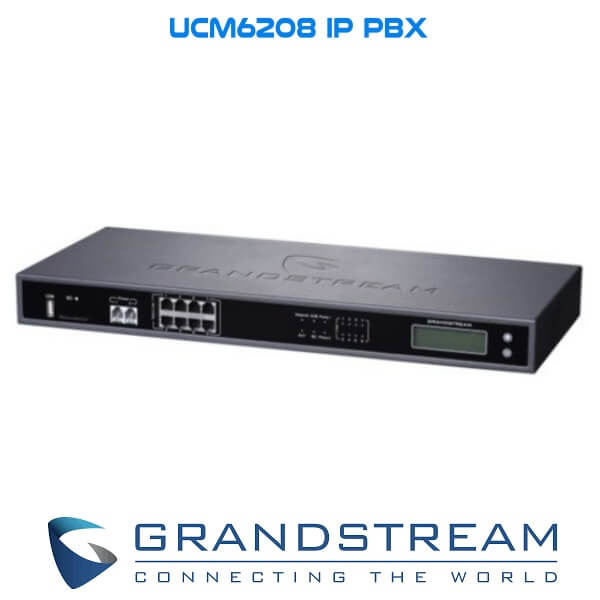

Grandstream UCM6208 Dubai
The Grandstream UCM6208 Dubai is an advanced IP PBX appliance designed for small and medium-sized businesses. It offers a range of features and capabilities that make it an ideal choice for businesses looking to upgrade their communication infrastructure. The Grandstream UCM6208 Dubai supports up to 800 users and 100 concurrent calls, making it a scalable solution that can grow with the business.
The appliance comes equipped with 2 FXS ports and 8 FXO ports, which enable businesses to connect to traditional phone lines and devices. It also supports a range of advanced features, including call routing, call recording, voicemail-to-email transcription, and conference bridges. The Grandstream UCM6208 Dubai also includes a range of security features, including TLS and SRTP encryption, which ensures that all communication between devices is secure and encrypted.
One of the key benefits of the Grandstream UCM6208 Dubai is its scalability. The appliance can be expanded to support additional users and concurrent calls, making it an ideal choice for growing businesses. The Grandstream UCM6208 Dubai also supports a range of third-party devices, including IP phones, gateways, and video conferencing systems, which means that businesses can customize their communication system to meet their specific needs.
The Grandstream UCM6208 Dubai is easy to set up and manage, and it provides a user-friendly web interface that makes it easy to configure and manage the system. The appliance also supports a range of third-party apps, including Grandstream’s own Wave app, which allows users to make and receive calls from their mobile devices.
In addition to its advanced features and capabilities, the Grandstream UCM6208 Dubai is also a cost-effective solution for businesses. It offers a range of features and capabilities at a competitive price point, making it an ideal choice for businesses that need to upgrade their communication infrastructure without breaking the bank.
In summary, the Grandstream Grandstream UCM6208 Dubai is a powerful and feature-rich IP PBX appliance that offers a scalable, reliable, and cost-effective solution for small and medium-sized businesses. Its advanced features, user-friendly interface, and range of security features make it an ideal choice for businesses that need to improve their communication processes.
Grandstream UCM6208 Specifications
- Analog Telephone FXS Ports 2 ports (both with lifeline capability in case of power outage)
- PSTN Line FXO Ports 2 ports (UCM6202); 4 ports (UCM6204); 8 ports (UCM6208)
- Network Interfaces Dual Gigabit RJ45 ports with integrated PoE Plus (IEEE 802.3at-2009)
- NAT Router Yes (supports router mode and switch mode)
- Peripheral Ports USB, SD
- LED Indicators Power/Ready, Network, PSTN Line, USB, SD
- LCD Display 128×32 graphic LCD with DOWN & OK button
- Reset Switch Yes
- Voice-over-Packet Capabilities LEC with NLP Packetized Voice Protocol Unit, 128ms-tail-length carrier grade Line Echo Cancellation,Dynamic Jitter Buffer, Modem detection & auto-switch to G.711
- Voice and Fax Codecs G.711 A-law/U-law, G.722, G.723.1 5.3K/6.3K, G.726, G.729A/B, iLBC, GSM, AAL2-G.726-32, ADPCM; T.38
- Video Codecs H.264, H.263, H263+
- QoS Layer 3 QoS, Layer 2 QoS
- DTMF Methods In Audio, RFC2833, and SIP INFO
- Provisioning Protocol &
- Plug-and-Play
- TFTP/HTTP/HTTPS, auto-discovery & auto-provisioning of Grandstream IP endpoints via Zero-Config (DHCP Option 66 multicast SIP SUBSCRIBE mDNS), eventlist between local and remote trunk
- Network Protocols TCP/UDP/IP, RTP/RTCP, ICMP, ARP, DNS, DDNS, DHCP, NTP, TFTP, SSH, HTTP/HTTPS, PPPoE,SIP (RFC3261), STUN, SRTP, TLS, LDAP
- Disconnect Methods Call Progress Tone, Polarity Reversal, Hook Flash Timing, Loop Current Disconnect, Busy Tone
- Media Encryption SRTP, TLS, HTTPS, SSH
- Universal Power Supply Output: 12VDC, 1.5A; Input: 100 ~ 240VAC, 50 ~ 60Hz
- Dimensions UCM6202/6204: 226mm L x 155mm W x 34.5mm H UCM6208: 440mm L x 185mm W x 44mm H
- Weight UCM6202/6204: Unit weight 0.51kg, Package weight 0.94kg UCM6208: Unit weight 2.23kg, Package weight 3.09kg
- Environmental Operating: 32 ~ 104ºF / 0 ~ 40ºC, 10 ~ 90% (non-condensing); Storage: 14 ~ 140ºF / -10 ~ 60ºC
- Mounting Wall mount & Desktop (UCM6202/6204); Rack mount & Desktop (UCM6208)
- Multi-Language Support
- English/Simplified Chinese/Traditional Chinese/Spanish/French/Portuguese/German/Russian/Italian/Polish/Czech for Web UI; Customizable IVR/voice prompts for English, Chinese, British English, German, Spanish, Greek, French, Italian, Dutch, Polish, Portuguese, Russian, Swedish, Turkish, Hebrew, Arabic; Customizable language pack to support any other languages
- Caller ID Bellcore/Telcordia, ETSI-FSK, ETSI-DTMF, SIN 227 – BT
- Polarity Reversal/Wink Yes, with enable/disable option upon call establishment and termination
- Call Center Multiple configurable call queues, automatic call distribution (ACD) based on agent skills/availability/busy level, in-queue announcement
- Customizable Auto Attendant Up to 5 layers of IVR (Interactive Voice Response)
- Maximum Call Capacity
- Registered SIP devices: supports up to 800 registered SIP devices/users (for UCM6208) and 500 registered SIP devices/users (for UCM6202/6204)
- Concurrent SIP calls: Up to 30 (UCM6202), 45 (UCM6204), or 100 (UCM6208), or 66% performance if calls are SRTP encrypted
- Conference Bridges Up to 3 (UCM6202/6204) or 6 (UCM6208) password-protected conference bridges allowing up to 25 (UCM6202/6204) or 32 (UCM6208) simultaneous PSTN or IP participants
- Call Features Call park, call forward, call transfer, DND, ring/hunt group, paging/intercom etc.
