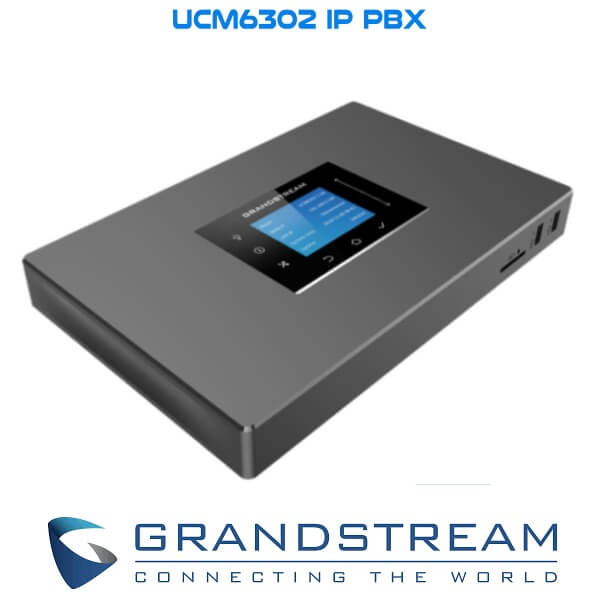

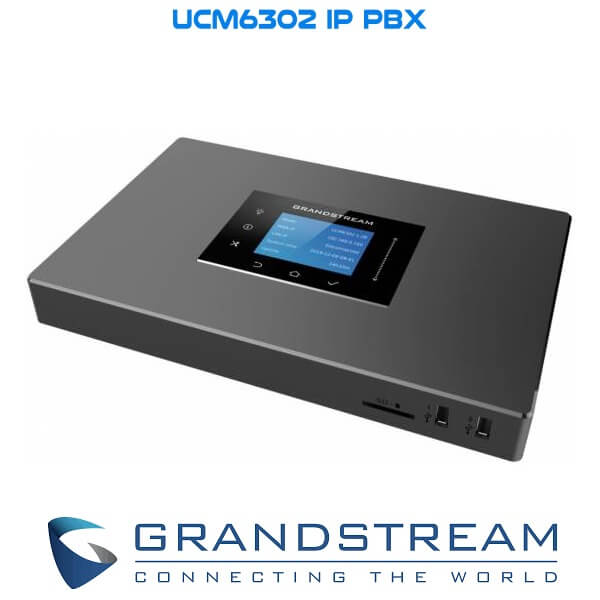

Grandstream UCM6302 Dubai
The Grandstream UCM6302 Dubai is a powerful IP PBX appliance designed for medium to large-sized businesses with high communication needs. It supports up to 1000 users and 150 concurrent calls, making it an ideal choice for businesses that require a high-performance communication system.
The Grandstream UCM6302 Dubai is equipped with advanced features that help businesses streamline their communication processes. It supports call routing, call recording, voicemail-to-email transcription, and conference bridges, which can help businesses improve their productivity and efficiency. It also includes a range of security features, such as TLS and SRTP encryption, which ensure that all communication between devices is secure and encrypted.
The Grandstream UCM6302 Dubai is easy to set up and manage, and it provides a user-friendly web interface that makes it easy to configure and manage the system. It also supports a range of third-party devices, including IP phones, gateways, and video conferencing systems, which means that businesses can customize their communication system to meet their specific needs.
One of the key benefits of the Grandstream UCM6302 Dubai is its scalability. It can support up to 1000 users and 150 concurrent calls, making it an ideal choice for growing businesses. The Grandstream UCM6302 Dubai is also a cost-effective solution for businesses, as it offers a range of features and capabilities at a competitive price point.
In addition to its advanced features and capabilities, the Grandstream UCM6302 Dubai also includes a range of management and monitoring tools that help businesses keep track of their communication system. It includes a built-in call detail records (CDR) system, which allows businesses to analyze call data and improve their communication processes. It also includes a built-in call quality monitoring system, which can help businesses identify and resolve call quality issues.
Overall, the Grandstream Grandstream UCM6302 Dubai is a powerful and feature-rich IP PBX appliance that offers a scalable, reliable, and cost-effective solution for medium to large-sized businesses with high communication needs. Its advanced features, user-friendly interface, and range of security features make it an ideal choice for businesses that need to improve their communication processes.
Grandstream UCM6302 Specifications
|
PSTN Line FXO Ports |
2 RJ11 Ports |
| All ports have lifeline capability in case of power outage; number of ports can be expanded by peering with an FXO gateway | |

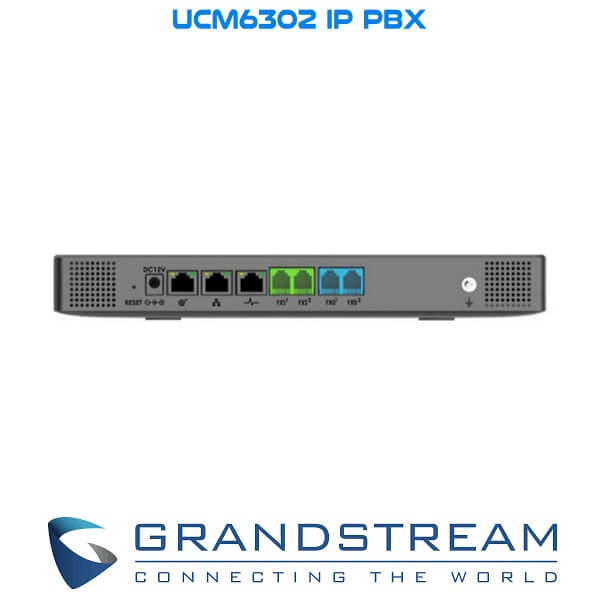

| Network Interfaces | Three self-adaptive Gigabit ports (switched, routed or dual mode) with PoE+ |
| NAT Router | Yes (supports router mode and switch mode) |

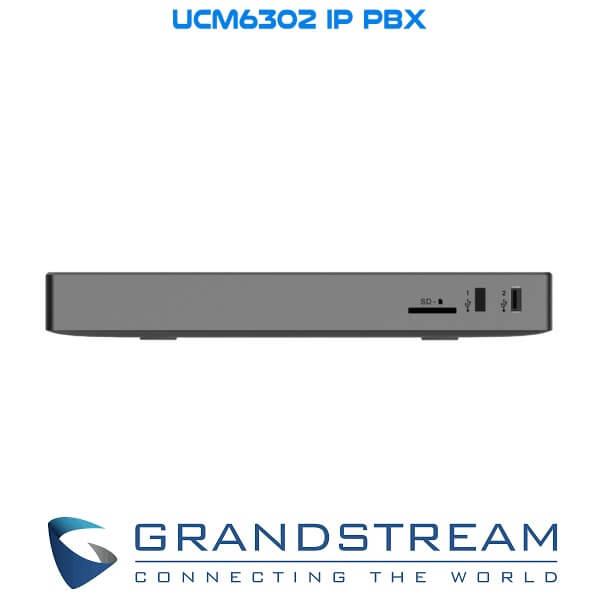

| Peripheral Ports | 1*USB 2.0, 1*USB 3.0, 1*SD card
interface
|
| LED Indicators | None |

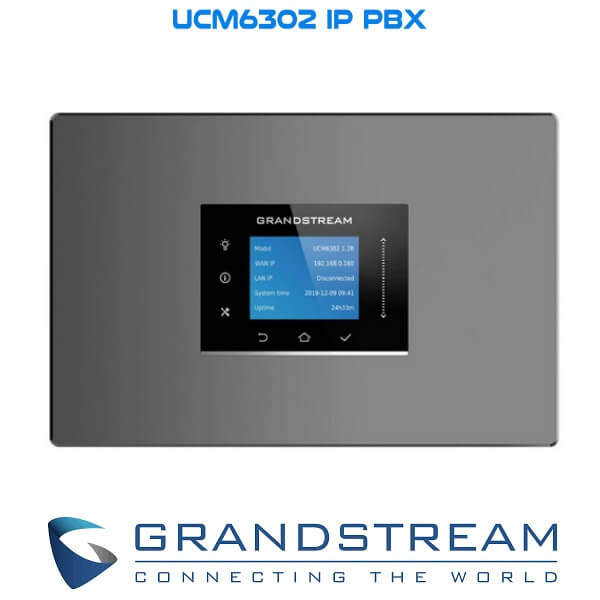

| LCD Display | 320×240 color LCD with touch screen for Shortcut Keys and Scroll Bar |
| Reset Switch | Yes, long press for factory reset and short press for reboot |
|
Voice-over-Packet Capabilities |
LEC with NLP Packetized Voice Protocol Unit, 128ms-tail-length carrier grade Line Echo Cancellation, Dynamic Jitter Buffer, Modem detection & auto-switch to G.711, NetEQ, FEC 2.0, jitter resilience up to 50% audio packet loss |
| Voice and Fax Codecs | Opus, G.711 A-law/U-law, G.722, G722.1 G722.1C, G.723.1 5.3K/6.3K, G.726-32, G.729A/B, iLBC, GSM; T.38 |
| Video Codecs | H.264, H.263, H263+, VP8 |
| QoS | Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS |
| API | Full API available for third-party platform and application integration |
| Telephony Operating System | Based on Asterisk version 16 |
| DTMF Methods | In-band audio, RFC2833, and SIP INFO |
| Provisioning Protocol &
Plug-and-Play |
Mass provisioning using AES encrypted XML configuration file, auto-discovery & auto-provisioning of Grandstream IP endpoints via ZeroConfig (DHCP Option 66 multicast SIP SUBSCRIBE mDNS), eventlist between local and remote trunk |
|
Network Protocols |
SIP, TCP/UDP/IP, RTP/RTCP, IAX, ICMP, ARP, DNS, DDNS, DHCP, NTP, TFTP, SSH, HTTP/HTTPS, PPPoE, STUN, SRTP, TLS, LDAP, HDLC, HDLC-ETH, PPP,Frame Relay (pending), IPv6, OpenVPN® |
| Disconnect Methods | Busy/Congestion/Howl Tone, Polarity Reversal, Hook Flash Timing, Loop Current Disconnect |
| Media Encryption | SRTP, TLS, HTTPS, SSH, 802.1X |
|
Universal Power Supply |
Input: 100 ~ 240VAC, 50/60Hz; Output: DC 12V, 1.5A |
| Dimensions | 270mm(L) x 175mm(W) x 36mm(H) |
|
Weight |
Unit Weight: 725g;
Package Weight: 1221g |
|
Temperature & Humidity |
Operating: 32 – 113ºF / 0 ~ 45ºC, Humidity 10 – 90% (non-condensing)
Storage: 14 – 140ºF / -10 ~ 60ºC, Humidity 10 – 90% (non-condensing) |
| Mounting | Wall mount & Desktop |
|
Multi-Language Support |
|
| Caller ID | Bellcore/Telcordia, ETSI-FSK, ETSI-DTMF, SIN 227 – BT, NTT |
| Polarity Reversal/Wink | Yes, with enable/disable option upon call establishment and termination |
|
Call Center |
Multiple configurable call queues, automatic call distribution (ACD) based on agent skills/availability/ work-load, in-queue announcement |
| Customizable Auto Attendant | Up to 5 layers of IVR (Interactive Voice Response) in multiple languages |
|
Maximum Call Capacity |
Users: 1000
Concurrent calls (G.711): 150 Max concurrent SRTP calls (G.711):100 |
|
Maximum Attendees of Conference Bridges |
6 Video Conference rooms and up to 30 parties with 1080p,
assuming 4 video feeds + 1 screen sharing (H.264 & Opus) Voice Conference: Up to 150 parties (G.711) |
|
Wave App |
Free; Available for desktop (Windows 10+, Mac OS 10+), web (Firefox and Chrome Browsers) and mobile (Android & iOS), allows users to join UCM- hosted meetings/conferences, communicate with other users/solutions and make/receive calls using SIP accounts registered to a UCM6300 series IP PBX |
|
Call Features |
Call park, call forward, call transfer, call waiting, caller ID, call record, call history, ringtone, IVR, music on hold, call routes, DID, DOD, DND, DISA, ring group, ring simultaneously, time schedule, PIN groups, call queue, pickup group, paging/intercom, voicemail, call wakeup, SCA, BLF, voicemail to email, fax to email, speed dial, call back, dial by name, emergency call, call follow me, blacklist/whitelist, voice conference, video conference, eventlist, feature codes, busy camp-on/ call completion, voice control, post-meeting reports, virtual fax sending/receiving, email to fax |
|
Firmware Upgrade |
Supported by Grandstream Device Management System (GDMS), a zero-touch cloud provisioning and management system, It provides a centralized interface to provision, manage, monitor and troubleshoot Grandstream products |
|
Internet Protocol Standards |
RFC 3261, RFC 3262, RFC 3263, RFC 3264, RFC 3515, RFC 3311, RFC 4028. RFC 2976, RFC 3842, RFC 3892, RFC 3428, RFC 4733, RFC 4566, RFC 2617, RFC 3856, RFC 3711, RFC 4582, RFC 4583, RFC 5245, RFC 5389, RFC 5766, RFC 6347, RFC 6455, RFC 8860, RFC 4734, RFC 3665, RFC 3323, RFC 3550 |
