Description

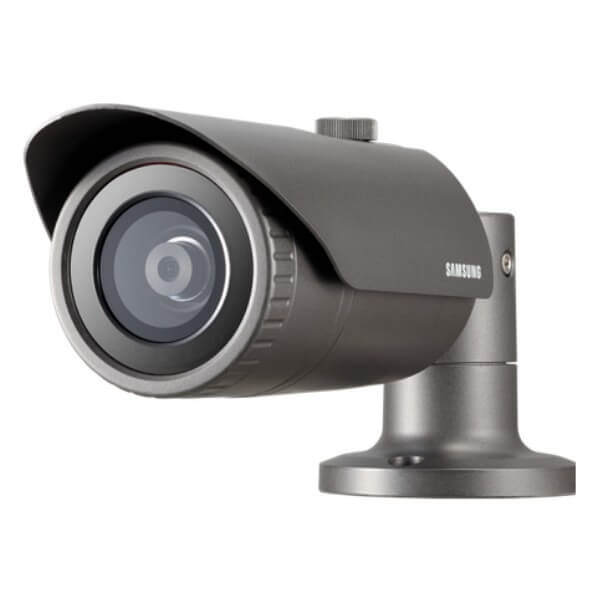

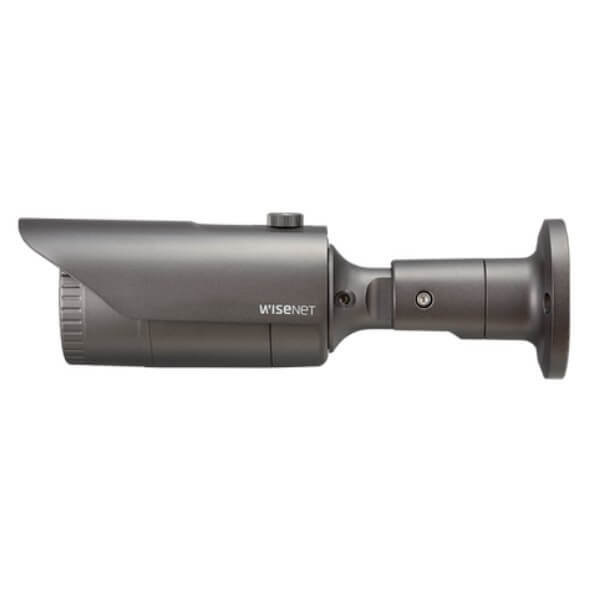

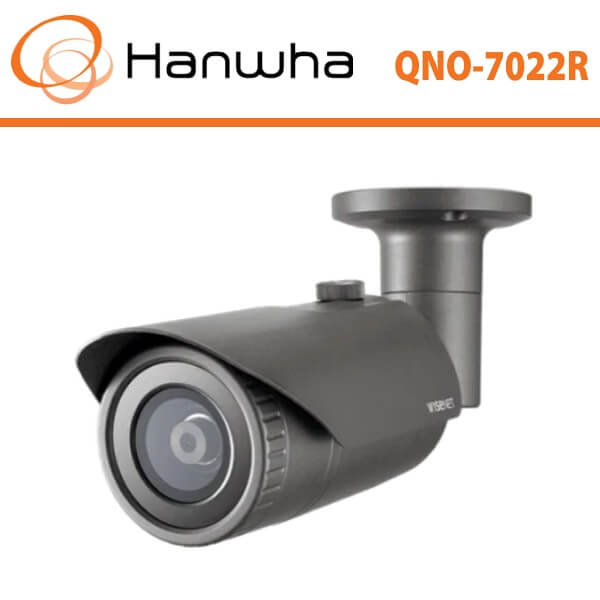

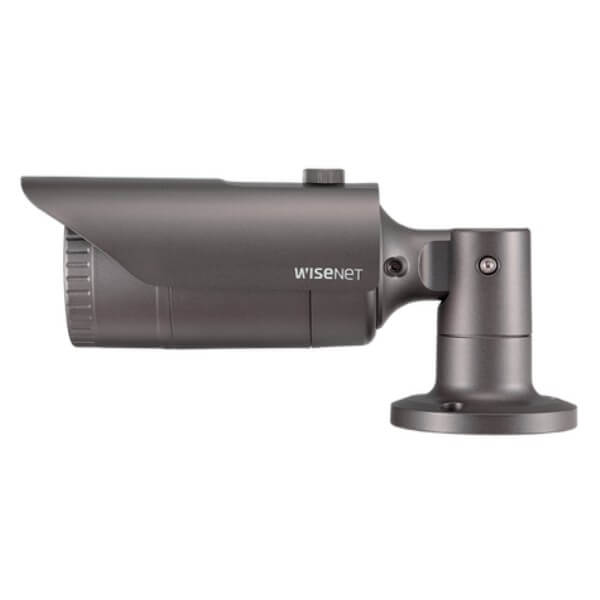

Hanwha QNO7022R CCTV Camera
As security threats continue to evolve, businesses and organizations need high-performance surveillance cameras that deliver precision, reliability, and intelligent monitoring. The Hanwha QNO7022R is a state-of-the-art security camera designed to meet the growing demands of modern surveillance systems. With its high-resolution imaging, smart video analytics, and advanced compression technology, this camera ensures comprehensive security coverage across various applications.
Crystal-Clear High-Resolution Imaging
At the core of the QNO7022R is a powerful 4-megapixel (MP) 1/3″ CMOS sensor, capable of capturing ultra-clear images with a maximum resolution of 2560×1440 pixels. This high-definition output enables precise identification of individuals, objects, and movements, ensuring superior surveillance quality. Additionally, the camera supports multiple resolution settings, including 1920×1080, 1280×960, and 1280×720, allowing users to customize video quality based on bandwidth and storage requirements.
Wide-Angle Fixed Lens for Expansive Coverage
The QNO7022R is equipped with a 4mm fixed focal lens and a maximum aperture of F1.6, offering exceptional coverage with:
-
79° horizontal field of view
-
42° vertical field of view
-
92° diagonal field of view
This broad viewing angle makes it an ideal solution for securing large areas such as office buildings, parking lots, warehouses, and public spaces. With its fixed focal length, the camera ensures sharp image quality across the entire field of view, capturing crucial details needed for effective monitoring.
Advanced Video Compression for Efficient Storage
To maximize storage efficiency and bandwidth optimization, the QNO7022R supports industry-leading video compression formats, including H.265, H.264, and MJPEG.
-
H.265: Reduces bandwidth usage by up to 50% compared to H.264, ensuring efficient data transmission
-
H.264: A widely supported format providing a balance between quality and storage efficiency
-
MJPEG: Maintains superior clarity for frame-by-frame analysis
By utilizing these compression standards, the QNO7022R minimizes storage costs without sacrificing video quality, making it ideal for long-term surveillance applications.
24/7 Surveillance with Day & Night Functionality
Designed for round-the-clock monitoring, the QNO7022R features an automatic IR cut filter (ICR) that seamlessly switches between day and night modes.
During the day, the camera captures vibrant, full-color footage in well-lit environments. At night or in low-light conditions, the infrared (IR) sensitivity activates, producing clear monochrome images for enhanced nighttime security. This adaptive functionality ensures that businesses and security professionals receive high-quality footage at any time of the day, making it suitable for both indoor and outdoor applications.
Intelligent Video Analytics for Proactive Security
Beyond traditional video recording, the QNO7022R is equipped with AI-powered video analytics, helping security teams detect and respond to threats in real-time.
-
Motion Detection: Identifies unauthorized movement within the surveillance area, triggering alerts
-
Tampering Detection: Sends alerts if the camera is blocked, moved, or tampered with
-
Defocus Detection: Notifies users if the camera loses focus, ensuring continuous image clarity
-
Virtual Area Detection: Monitors specific zones for intrusions, unauthorized entry, or exits
-
Virtual Line Detection: Detects objects crossing predefined security boundaries, ideal for perimeter protection
These intelligent surveillance features help minimize security risks, reduce response times, and enhance overall safety, making the QNO7022R a powerful tool for proactive monitoring.
Why Choose the Hanwha QNO7022R?
The Hanwha QNO7022R is a high-performance surveillance camera that combines crystal-clear imaging, AI-driven analytics, and advanced video compression for maximum security and efficiency. Whether you need to monitor commercial buildings, industrial sites, public spaces, or residential areas, this camera delivers superior protection, reliability, and cost-effectiveness.
With seamless day-and-night functionality, expansive field of view, and intelligent threat detection, the QNO7022R is the ideal choice for organizations seeking a robust, future-ready surveillance solution. Invest in top-tier security technology today and safeguard your assets with Hanwha’s cutting-edge surveillance innovation.
SPECIFICATION
| Video | |
| Imaging Device | 1/3″ CMOS |
| Resolution | 2560×1440, 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps (@4MP Max. 2fps) |
| Min. Illumination | Color : 0.15Lux (F1.6, 1/30sec) B/W : 0Lux (IR LED On) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 4.0mm fixed focal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H: 79°, V: 42°, D: 92° |
| Focus Control | Fixed |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~360° / 0°~100° / 0°~360° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum/Maximum/Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Motion detection, Tampering, Defocus detection , Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing/Direction) |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover(PTZ preset) |
| Audio In | Selectable(mic in/line in) |
| Light Type | IR LED (850nm) |
| Light Viewable Length | 25m (82.02ft) |
| Network | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression | H.265/H.264 : Main/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps |
| Smart Codec | Manual (5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Application Programming Interface | ONVIF Profile S/G/T, SUNAPI (HTTP API) |
| Security | |
| OS / Firmware Protect | Firmware encryption |
| User authentication | Digest Authentication, Prevent brute-force attack |
| Network authentication | 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) |
| Secure Communication | HTTPS, SRTP, WSS(Websocket secure) |
| Access Control | Access control based on IP address |
| Data Protect | Authentication information encryption, ZIP compression encryption |
| Audit | User Access/System/Event log management |
| Device ID | Device Certificate(Hanwha Private Root CA) |
| Secure Storage | SDcard partition encrypt |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Memory | 512MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C~+55°C (-40°F ~ +131°F) / 0~95% RH ＊Start up should be done at -30°C or above |
| Storage Temperature / Humidity | -40°C~+60°C (-40°F~+140°F) / 0~95% RH |
| Certification | IP66, IK10 |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE: Max 10.7W, typical 8W 12VDC: Max 9.1W, typical 6.8W |
| Mechanical | |
| Color / Material | Dark grey / Aluminum |
| Product Dimensions / Weight | ø70.0×246.0mm(ø2.76×9.69″), 700g(1.54 lb) |
| Compatible Conduit hole / Gangbox | Single, Double, 4″Octagon |
| Backbox | SBO-100B1, SBO-147B |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | 63.0m(206.70ft) |
| Observe (63PPM/ 19PPF) | 25.2m(82.68ft) |
| Recognize (125PPM/ 38PPF) | 12.6m(41.34ft) |
| Identify (250PPM/ 76PPF) | 6.3m(20.67ft) |
