Description

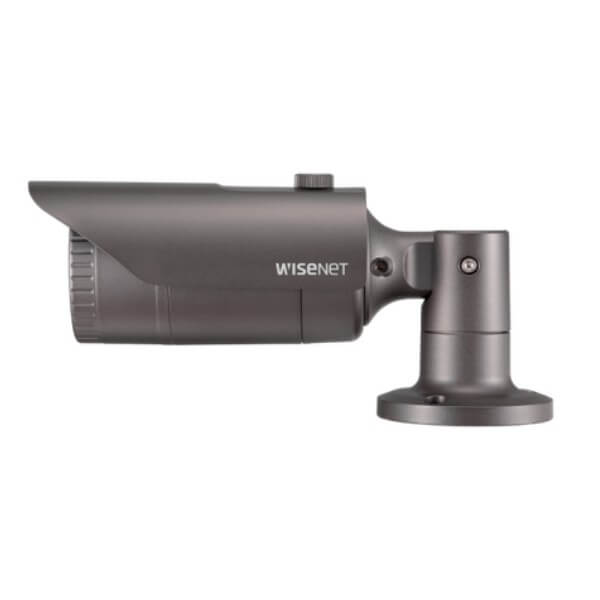

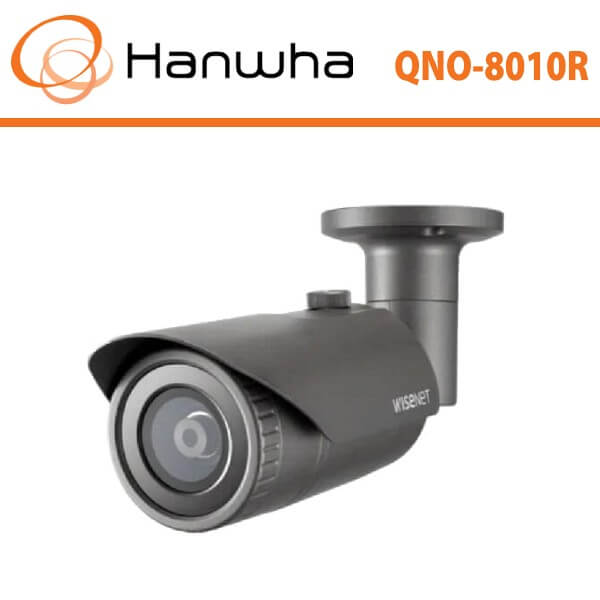

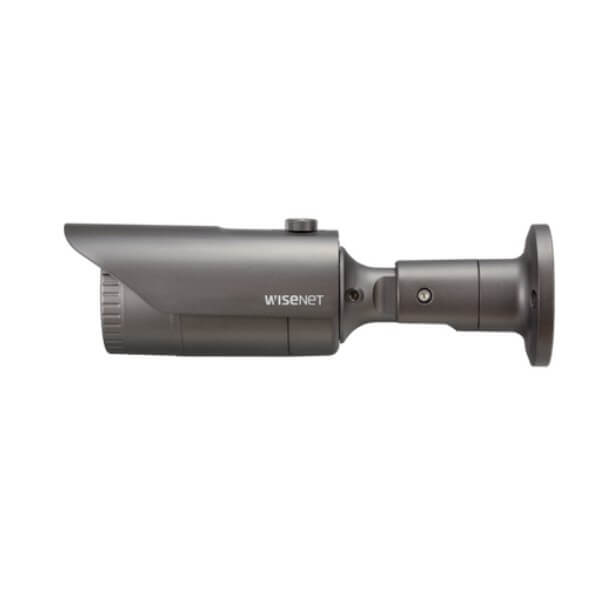

Hanwha QNO8010R IR Bullet Camera

The Hanwha QNO8010R Bullet Camera is a cutting-edge security solution designed for those who need high-definition surveillance without a hefty price tag. As part of Hanwha’s budget-friendly product lineup, this 5MP security camera offers exceptional image clarity, advanced night vision, and intelligent analytics, making it a top choice for both business and residential security applications.

Equipped with a 5-megapixel CMOS sensor (2592×1944 pixels), the Hanwha QNO8010R captures ultra-clear video footage, allowing for precise identification of people, vehicles, and objects. Compared to standard Full HD cameras, its higher resolution ensures sharper details, making it ideal for high-risk areas such as commercial properties, retail stores, and office buildings.

With a 2.8mm fixed lens, this wide-angle security camera offers an extensive field of view, effectively reducing blind spots and enhancing area coverage. This feature is particularly beneficial for monitoring large spaces such as parking lots, warehouses, and entry points, eliminating the need for multiple cameras.

Night-time security is seamless with the Hanwha QNO8010R’s Smart IR night vision technology. Its powerful infrared LEDs provide clear surveillance up to 20 meters (65 feet) in complete darkness, ensuring round-the-clock visibility. The Intelligent IR feature automatically adjusts brightness, preventing overexposure for balanced and detailed nighttime footage.

Built to withstand harsh environmental conditions, the Hanwha QNO8010R is housed in an IP66-rated weatherproof casing, protecting it from rain, dust, and extreme temperatures. This durable outdoor security camera is engineered for long-term reliability, making it a great investment for properties requiring constant surveillance in unpredictable weather conditions.

Lighting challenges are no longer an issue with the 120dB Wide Dynamic Range (WDR) feature, which optimizes image quality in high-contrast environments. Whether dealing with glare, deep shadows, or fluctuating lighting conditions, the Hanwha QNO8010R ensures a clear and balanced video output, making it perfect for areas with bright storefronts, entryways, and parking garages.

The camera also features H.265 video compression technology, significantly reducing bandwidth usage and storage requirements without compromising video quality. Businesses can benefit from longer recording retention times and lower storage costs, making this an efficient surveillance solution for organizations managing multiple security cameras.

Installation is quick and hassle-free thanks to Power over Ethernet (PoE) support, which allows both power and data transmission through a single cable. This simplifies the setup process, reducing installation time and costs, making it an ideal solution for both professional and DIY security installations.

Enhancing security further, the Hanwha QNO8010R is equipped with intelligent video analytics, including motion detection, tampering detection, and defocus detection. These proactive features send real-time alerts, allowing security teams to respond quickly to potential threats.

For those seeking a high-resolution, weatherproof security camera with smart surveillance capabilities, the Hanwha QNO8010R is a top choice. Its combination of advanced features, durability, and affordability makes it a standout option for home security, business surveillance, and industrial monitoring.

Upgrade your security today with the Hanwha QNO8010R Bullet Camera—a reliable, high-performance surveillance solution designed to meet your safety needs!

SPECIFICATIONS

Show > Ver	1
Show > Imaging Device	1/2.8″ CMOS
Show > Resolution	5MP mode : 2592×1944, 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 4MP mode : 2560×1440, 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
Hide > Max. Resolution	2592×1944
Hide > Max. Resolution(MP)	5MP
Show > Max. Framerate	H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps (@5MP Max. 2fps)
Show > NETD	None
Show > Pixel Size	None
Show > Min. Illumination	Color: 0.15Lux(F2.0, 1/30sec) BW: 0Lux(IR LED on)
Show > Video Out	CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation
Show > Video Transmission Distance	None
Show > Focal Length (Zoom Ratio)	2.8mm fixed focal
Hide > Max. Focal Length	2.8
Hide > Min. Focal Length	2.8
Hide > Zoom Ratio	None
Hide > Focal Type	Fixed
Show > Max. Aperture Ratio	F2.0
Show > Angular Field of View	H: 105°/ V: 77°/ D: 136°
Hide > Max. Horizontal Angle	105
Hide > Min. Horizontal Angle	105
Hide > Max. Vertical Angle	77
Hide > Min. Vertical Angle	77
Show > Min. Object Distance	None
Show > Focus Control	Fixed
Show > Lens Type	None
Show > Mount Type	None
Show > Optional Lens	None
Show > Pan / Tilt / Rotate Range	0°~360° / 0°~100° / 0°~360°
Hide > Max. Tilt Angle	100
Hide	Min. Tilt Angle
Show > Pan Range	None
Show > Pan Speed	None
Show > Tilt Range	None
Show > Tilt Speed	None
Show > Rotate Range	None
Show > Sequence	None
Show > Preset Accuracy	None
Show > Camera Title	Displayed up to 85 characters
Show > Direction Indicator	None
Show > Day & Night	Auto(ICR)
Show > Backlight Compensation	BLC, WDR, SSDR
Show > Wide Dynamic Range	120dB
Show > Digital Noise Reduction	SSNR
Show > Digital Image Stabilization	None
Show > Defog	None
Show > Motion Detection	4ea, polygonal zones
Show > Privacy Masking	6ea, rectangular zones
Show > Gain Control	Low / Middle / High
Show > White Balance	ATW / AWC / Manual / Indoor / Outdoor
Show > LDC	Support
Show > Electronic Shutter Speed	Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
Hide > Digital PTZ	None
Show > Video Rotation	Flip, Mirror, Hallway view(90°/270°)
Hide > Hallway view	Support
Show > Analytics	Motion detection, Tampering, Defocus detection , Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing/Direction)
Show > Business Intelligence	None
Hide > People Counting	None
Hide > Vehicle Counting	None
Hide > Queue Management	None
Hide > Heat Map	None
Show > Serial Interface	None
Show > Alarm I/O	Input 1ea / Output 1ea
Show > Alarm Triggers	Analytics, Network disconnect, Alarm input
Show > Alarm Events	File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover(PTZ preset)
Show > Audio Streaming	None
Show > Audio In	None
Hide > Built-in MIC	None
Show > Audio Out	None
Hide > Audio Line	None
Show > Light Type	IR LED (850nm)
Show > Light Viewable Length	20m(65.62ft)
Show > IR Viewable Length	None
Show > IR Illuminator (Optional)	None
Show > IR Radiation angle	None
Show > IR LED	None
Show > IR Wavelength	None
Show > IR Operation	None
Show > Water Removal	None
Show > Auto Tracking	None
Show > Coaxial Protocol	None
Show > Color Palettes	None
Show > Temperature Detect Range	None
Show > Temperature Accuracy	None
Show > Temperature Detection	None
Show > Additional	None
Show > Ethernet	RJ-45(10/100BASE-T)
Show > Video Compression	H.265/H.264: Main/High, MJPEG
Show > Audio Compression	None
Show > Smart Codec	WiseStreamⅡ
Hide > AI Codec	None
Hide > Video Quality Adjustment	H.264/H.265: Target bitrate level control MJPEG: Quality level control
Show > Bitrate Control	H.264/H.265: CBR or VBR MJPEG: VBR
Show > Streaming	Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles)
Show > Protocol	IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
Show > SIP support (VoIP, Peer-to-peer, SIP/PBX integration)	None
Show > Security	None
Show > Application Programming Interface	ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
> Security
Show > OS / Firmware Protect	Firmware encryption
Show > User authentication	Digest Authentication, Prevent brute-force attack
Show > Network authentication	802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
Show > Secure Communication	HTTPS, SRTP, WSS(Websocket secure)
Show > Access Control	Access control based on IP address
Show > Data Protect	Authentication information encryption, ZIP compression encryption
Show > Audit	User Access/System/Event log management
Show > Device ID	Device Certificate(Hanwha Private Root CA)
Show > Secure Storage	SDcard partition encrypt
Show > Security Certificate	None
Show > Webpage Language	English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch
Show > Web Viewer	None
Show > Edge Storage	Micro SD/SDHC/SDXC 1slot 128GB
Hide > Storage slot	SD 1slot
Show > Memory	512MB RAM, 256MB Flash
Show > Operating Temperature / Humidity	-30°C~+55°C(-22°F ~ +131°F) / 0~90% RH * Start up should be done at above -20°C
Show > Storage Temperature / Humidity	-30°C~+60°C(-22°F ~ +140°F) / 0~90% RH
Show > Certification	IP66, IK10
Hide > IK Rating	IK10
Show > Input Voltage	PoE(IEEE802.3af, Class3)
Show > Power Consumption	PoE: Max 7.50W, typical 6.10W
Show > Color / Material	Dark grey / Aluminum
Hide > Color	Dark grey
Hide > Material	Aluminum
Show > RAL Code	None
Show > Product Dimensions / Weight	ø70.0×246.0mm(ø4.33×3.39″), 680g(1.50 lb)
Show > Compatible Conduit hole / Gangbox	None
Show > Hanging Mount (Dome)	None
Hide > Skin Cover	None
Hide > Skin Cover (Dome)	None
Hide > Weather Cap (Dome)	None
Hide > Power Module	None
Show > Backbox	SBO-100B1
Show > Network	None
Show > EMC	None
Show > Safety	None
Show > Environment	None
Show > Video	None
Show > Detect (25PPM/ 8PPF)	40.0m(131.20ft)
Show > Observe (63PPM/ 19PPF)	16.0m(52.48ft)
Show > Recognize (125PPM/ 38PPF)	8.0m(26.24ft)
Show > Identify (250PPM/ 76PPF)	4.0m(13.12ft)
Show > Speed Description	None
Show > Speed limit	None
Show > Min. Forward Distance	None
Show > Max. Forward Distance	None
Show > Max. Horizontal Angle	None
Show > Max. Vertical Angle	None
Show > Horizontal Offset	None
Show > Camera Height	None
Show > Lane Coverage	None
Show > Vehicle Recognition	None
Show > Available Countries	None
Show > Solution	None
Show > Speed Description	None
Show > Lane Coverage	None
Show > Speed limit	None
Show > Min. Forward Distance	None
Show > Max. Forward Distance	None
Show > Max. Horizontal Angle	None
Show > Max. Vertical Angle	None
Show > Horizontal Offset	None
Show > Camera Height	None
Show > Vehicle Recognition	None
Show > Available Countries	None
