Description

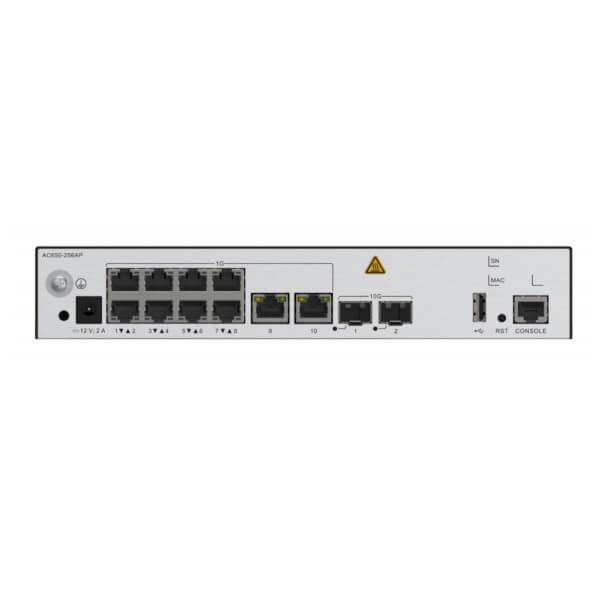

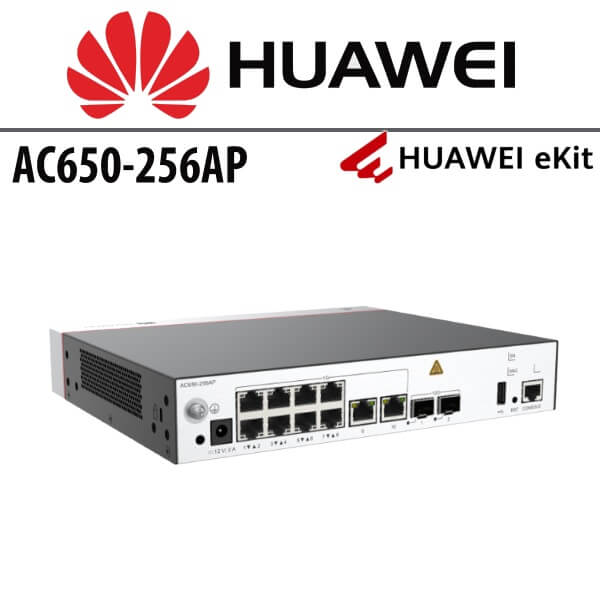

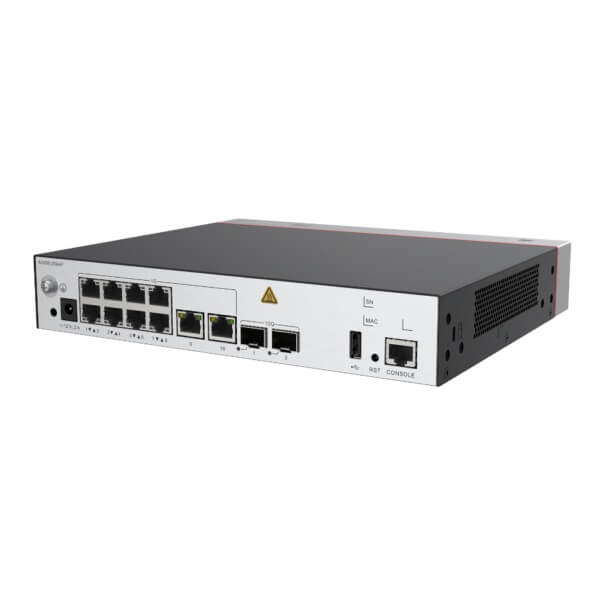

Huawei AC650-256AP Wireless Access Controller Dubai
The Huawei AC650-256AP Dubai is an advanced wireless access controller (AC) engineered by Huawei, tailored specifically to address the demands of small and medium-sized enterprises (SMEs) in the networking market. This cutting-edge device is designed to integrate seamlessly with Huawei access points (APs), facilitating the creation of stable and dependable wireless networks. It is particularly well-suited for environments such as small campus networks, office networks of smaller enterprises, and areas requiring extensive hotspot coverage.
With the capacity to manage up to 256 access points, the Huawei AC650-256AP Dubai ensures exceptional network performance and strong, uninterrupted connectivity. Moreover, it is capable of supporting access for up to 2048 simultaneous stations (STAs), delivering broad coverage and consistent, reliable connections for a vast number of devices. This makes it an ideal solution for businesses seeking to maintain a robust and efficient wireless network infrastructure.
Technical Specifications
| Description | AC650-256AP mainframe (10*GE ports, 2*10GE SFP+ ports, with the AC/DC adapter) |
| Part Number | 02355NCH |
| Model | AC650-256AP |
| First supported version | V200R022C10 |
| Installation Type |
|
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic: 43.6 mm x 250 mm x 210 mm (1.72 in. x 9.84 in. x 8.27 in.)
Maximum: 43.6 mm x 250 mm x 215 mm (1.72 in. x 9.84 in. x 8.46 in.) |
| Weight without packaging [kg(lb)] | 1.9kg |
| Storage | Nand FLASH 1GB |
| Console port | RJ45 |
| Maximum power consumption [W] | 23.58 W |
| Maximum heat dissipation [BTU/hour] | 80.45 BTU/hour |
| Power supply mode | DC adapter |
| Service port surge protection | 6 kV in common mode |
| Types of fans | None |
| Maximum number of physical ports on the entire device | 2 x 10GE (SFP+) + 10 x GE (RJ45) |
| Long-term operating temperature [°C(°F)] | 0°C to 45°C (32°F to 113°F) (If the altitude is in the range of 1800 m to 5000 m, the temperature decreases by 1°C or 1.8°F every time the altitude increases by 300 m.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa – 106kPa ETSI 300 019-2-3 |
| Ground | Ground |
| USB | 1 x USB 2.0 (host type A) port |
| MTBF [year] | 50 year |
| MTTR [hour] | 2 hour |
