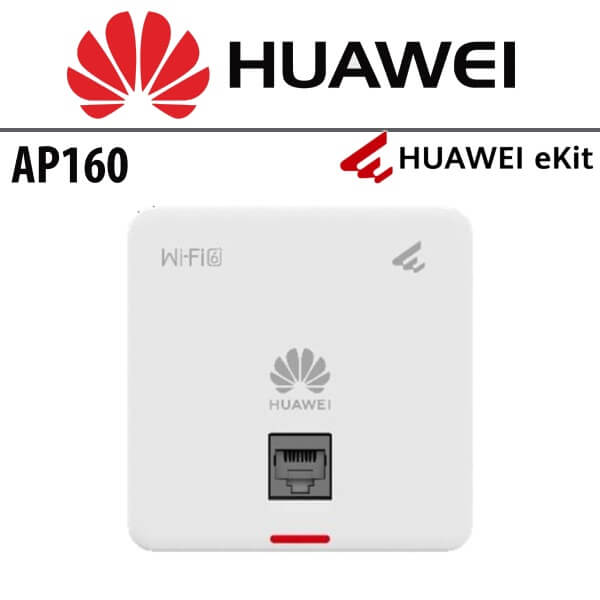

Huawei AP160 Access Point Dubai
The Huawei AP160 Dubai is a state-of-the-art Wi-Fi 6 (802.11ax) wall plate access point engineered to deliver high-speed, reliable wireless connectivity. This advanced device operates on both the 2.4 GHz (2×2) and 5 GHz (2×2) frequency bands simultaneously, ensuring optimal performance and stable connections across a wide range of devices.
With its high bandwidth capabilities, the Huawei AP160 Dubai supports a significant number of concurrent connections, making it particularly well-suited for environments with heavy network traffic, such as small- to medium-sized offices, homes, and hotels. Its compact and sleek design not only allows for versatile installation options but also helps minimize customer investment by reducing the need for additional equipment.
In scenarios requiring indoor coverage, the Huawei AP160 Dubai excels in providing robust and consistent Wi-Fi coverage. Whether used to enhance wireless networks in business settings or to ensure seamless internet access in residential and hospitality environments, this access point is an ideal solution for delivering reliable and comprehensive wireless connectivity.
Features
- Working simultaneously on the 2.4 GHz (2×2) + 5 GHz (2×2) frequency bands
- Uplink: 1 x GE electrical port; downlink: 1 x GE electrical port
- Standard dimensions of 86 mm x 86 mm, allowing for junction box (86 mm) mounting and facilitating deployment
- Built-in smart antennas to provide precise coverage for STAs, reduce interference, and improve signal quality
- Working modes: Fit, Fat, and cloud management
Technical Specifications
| Description | AP160(11ax indoor,2+2 dual bands,smart antenna) |
| Part Number | 50086816 |
| Model | AP160 |
| First supported version | V200R023C00 |
| Installation Type | Junction Box |
| Dimensions without packaging (H x W x D) [mm(in.)] | 86 mm x 86 mm x 42.5 mm (3.39 in. x 3.39 in. x 1.67 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 98 mm x 117 mm x 73 mm (3.86 in. x 4.61 in. x 2.87 in.) |
| Weight without packaging [kg(lb)] | 0.14 kg (0.31 lb) |
| Weight with packaging [kg(lb)] | 0.24 kg (0.53 lb) |
| Storage | NAND Flash 256 MB |
| Console port | None |
| Maximum power consumption [W] | 9.1 W |
| Maximum heat dissipation [BTU/hour] | 29.5 BTU/hour |
| Power supply mode | PoE |
| Input voltage range [V] | PoE: 802.3af |
| Service port surge protection | PoE port:
|
| Maximum number of physical ports on the entire device | GE (RJ45) x 2, 10M/100M/1000M auto-sensing |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa – 106kPa ETSI 300 019-2-3 |
| Ground | floating ground |
| BLE | Not supported |
| Radio number | 2 |
| Operating frequency band |
|
| MIMO spatial streams | Radio 0 (2.4 GHz): 2×2
Radio 1 (5 GHz): 2×2 |
| Wi-Fi standard |
|
| Radio interface | Built-in smart antennas |
| Antenna gain | 2.4 GHz:
5 GHz:
|
| Maximum transmit power | 2.4G:
5G:
|
| Singal radio transmit power [dBm] |
|
| MTBF [year] | 446 year |
| MTTR [hour] | 2 hour |
| Frequency stability [ppm] | +/-20 |
| 802.3bt power supply description | No function is limited. |
| 802.3at power supply description | No function is limited. |
| 802.3af power supply description | No function is limited. |
| DC power supply description | Not supported |
