Description

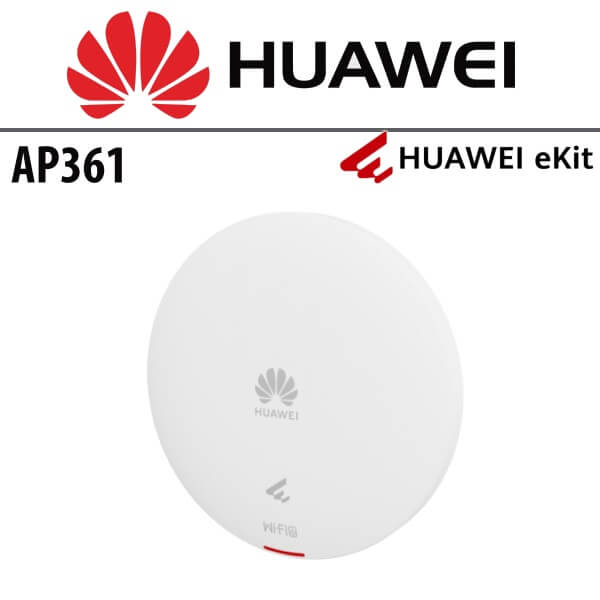

Huawei AP361 Access Point Dubai
The Huawei AP361 Dubai is a state-of-the-art indoor Wi-Fi 6 (802.11ax) access point engineered to provide exceptional wireless connectivity. This access point operates on both the 2.4 GHz (2×2) and 5 GHz (2×2) frequency bands simultaneously, guaranteeing strong and reliable wireless service. What sets the Huawei AP361 Dubai apart is its remarkable high bandwidth and high concurrency capabilities, all housed within a compact design that allows for flexible deployment while minimizing customer expenses. These features make the Huawei AP361 Dubai an excellent choice for indoor coverage, particularly in small to medium-sized enterprise (SME) markets. This access point is ideally suited for a range of environments, including enterprise offices, small- to medium-sized hospitals, commercial real estate properties, budget chain hotels, and primary and secondary educational institutions. By delivering efficient and scalable Wi-Fi solutions, the Huawei AP361 Dubai not only ensures seamless connectivity but also enhances the overall user experience across a variety of applications.
Features
- Working simultaneously on the 2.4 GHz (2×2) + 5 GHz (2×2) frequency bands
- 1 x GE electrical port
- Built-in smart antennas that automatically adjust the coverage direction and signal strength based on the intelligent switchover algorithm to adapt to the changing application environment, providing accurate and stable coverage as STAs move
- Working modes: Fit, Fat, and cloud management
Technical Specifications
| Description | AP361(11ax indoor,2+2 dual bands,smart antenna) |
| Part Number | 50086871 |
| Model | AP361 |
| First supported version | V200R023C00 |
| Installation Type |
|
| Dimensions without packaging (H x W x D) [mm(in.)] | Diameter x depth: 180 mm x 35 mm (7.09 in. x 1.38 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 200 mm x 231 mm x 61 mm (7.87 in. x 9.09 in. x 2.40 in.) |
| Weight without packaging [kg(lb)] | 0.45 kg (0.99 lb) |
| Weight with packaging [kg(lb)] | 0.75 kg (1.65 lb) |
| Storage | NAND Flash 256 MB |
| Console port | None |
| Maximum power consumption [W] | 8.8 W |
| Maximum heat dissipation [BTU/hour] | 28.5 BTU/hour |
| Power supply mode | PoE |
| Rated input voltage [V] | NA |
| Input voltage range [V] | PoE: 802.3af |
| Service port surge protection | PoE port:
|
| Maximum number of physical ports on the entire device | GE (RJ45) x 1, 10M/100M/1000M auto-sensing |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa – 106kPa ETSI 300 019-2-3 |
| Ground | floating ground |
| BLE | Not supported |
| Radio number | 2 |
| Operating frequency band |
|
| MIMO spatial streams | Radio 0 (2.4 GHz): 2×2
Radio 1 (5 GHz): 2×2 |
| Wi-Fi standard |
|
| Radio interface | Built-in smart antennas |
| Antenna gain | 2.4G:
5G:
|
| Maximum transmit power | 2.4G:
5G:
|
| Singal radio transmit power [dBm] |
|
| MTBF [year] | 440.3 year |
| MTTR [hour] | 2 hour |
| Frequency stability [ppm] | +/-20 |
| 802.3bt power supply description | No function is limited. |
| 802.3at power supply description | No function is limited. |
| 802.3af power supply description | No function is limited. |
| DC power supply description | DC power supply is not supported. |
