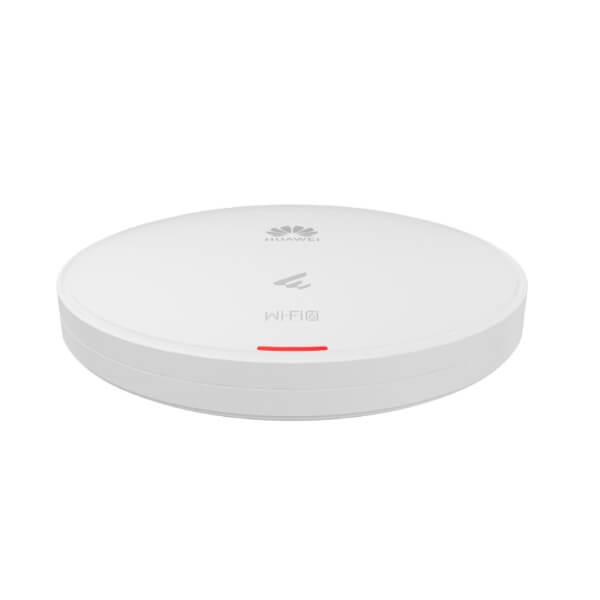

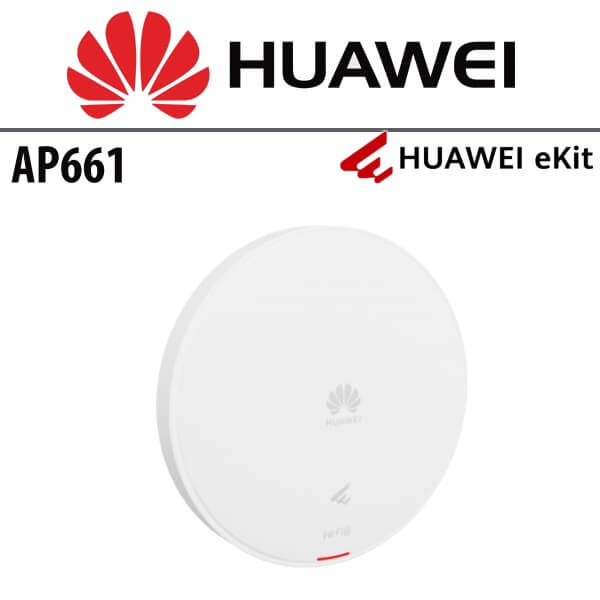

Huawei AP661 Access Point Dubai

The Huawei AP661 Dubai is an exceptionally advanced wireless access point (AP) that aligns with the cutting-edge Wi-Fi 6 standard, ensuring top-tier performance and reliability. This sophisticated AP is engineered to deliver services across three different frequency bands simultaneously. It operates on the 2.4 GHz band with 2×2 MIMO, the 5 GHz band with 2×2 MIMO, and an additional 5 GHz band featuring 4×4 MIMO, providing versatile and powerful connectivity options. The integration of built-in smart antennas further enhances the Wi-Fi signals, maintaining their strength and stability to offer a seamless and uninterrupted wireless experience. This robust capability makes the Huawei AP661 Dubai particularly well-suited for high-density environments, including mobile offices, educational institutions, and expansive venues such as stadiums, where reliable and consistent network performance is crucial.

Features

1 x 2.5GE electrical port + 1 x GE electrical port
Built-in smart antennas that automatically adjust the coverage direction and signal strength based on the intelligent switchover algorithm to adapt to the application environment change, and provide accurate and stable coverage as STAs move
USB port for IoT expansion (such as ZigBee and RFID)
Bluetooth serial interface-based O&M through the built-in Bluetooth module by collaborating with CloudCampus APP; collaboration with a location server to accurately locate Bluetooth terminals and tags
Working modes: Fit, Fat, and cloud management

Technical Specifications

Description	AP661(11ax indoor,2+2+4 tri bands,smart antenna,USB,BLE)
Part Number	02355VFC
Model	AP661
First supported version	V200R023C10
Installation Type	Wall Ceiling T-Rail
Dimensions without packaging (H x W x D) [mm(in.)]	Diameter x depth: 220 mm x 50 mm (8.66 in. x 1.97 in.)
Weight without packaging [kg(lb)]	1.08 kg (2.38 lb)
Storage	NAND Flash 512 MB
Console port	BLE console
Maximum power consumption [W]	21.2 (excluding USB), 802.3at/af power supply
Power supply mode	DC adapter PoE
Rated input voltage [V]	12 V
Input voltage range [V]	DC: 12 V ± 10% PoE: 802.3at/af
Service port surge protection	PoE port: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B
Maximum number of physical ports on the entire device	2.5GE (RJ45) x 1, 100M/1000M/2.5G auto-sensing GE (RJ45) x 1, 10M/100M/1000M auto-sensing
Long-term operating temperature [°C(°F)]	–10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)]	–60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa]	53kPa – 106kPa ETSI 300 019-2-3
Ground	floating ground
USB	USB 2.0
BLE	BLE5.2
Radio number	3
Operating frequency band	2.4GHz 5GHz
MIMO spatial streams	Radio 0 (2.4 GHz): 2×2 Radio 1 (5 GHz): 2×2 (high frequency band) Radio 2 (5 GHz): 4×4 (low frequency band)
Wi-Fi standard	2.4 GHz: 802.11b/g/n/ax 5 GHz: 802.11a/n/ac/ac Wave 2/ax
Radio interface	Built-in smart antennas
Antenna gain	2.4G: 4 dBi/chain (peak value) 2 dBi (combined gain) 5G: 5 dBi/chain (peak value) 3 dBi (combined gain) BLE: 4 dBi
Maximum transmit power	2.4 GHz: 22 dBm/chain 25 dBm (combined power) 5 GHz (2×2): 20 dBm/chain 23 dBm (combined power) 5 GHz (4×4): 20 dBm/chain 26 dBm (combined power) BLE: < 10 dBm
Singal radio transmit power [dBm]	2.4G: -10 dBm to 22 dBm/chain 5G: -10 dBm to 20 dBm/chain
MTBF [year]	96 year
MTTR [hour]	0.5 hour
Frequency stability [ppm]	+/-20
802.3at power supply description	No function is limited.
802.3af power supply description	Wi-Fi: 2.4 GHz (2×2) + 5 GHz (1×1, high band) + 5 GHz (1×1, low band). The maximum combined power is adjusted to 21 dBm (2.4 GHz radio) and 18 dBm (5 GHz radio). Wired network port: The 2.5GE/PoE_IN electrical port is used as a GE port, and the GE electrical port is unavailable. Other ports: The USB port is unavailable.
DC power supply description	No function is limited.
