Description

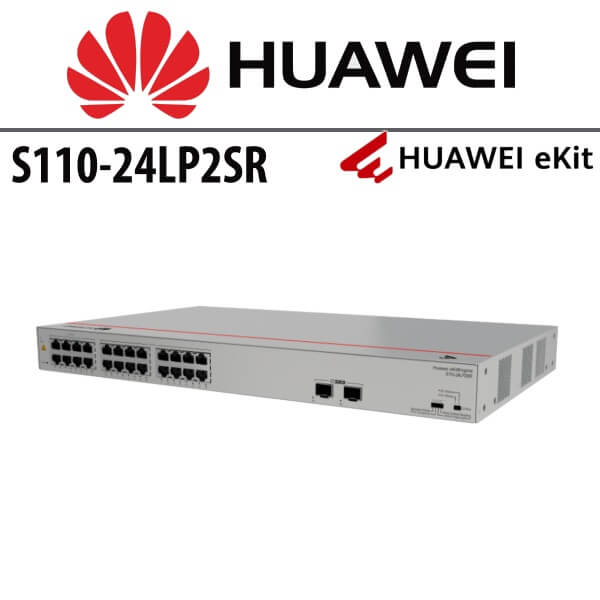

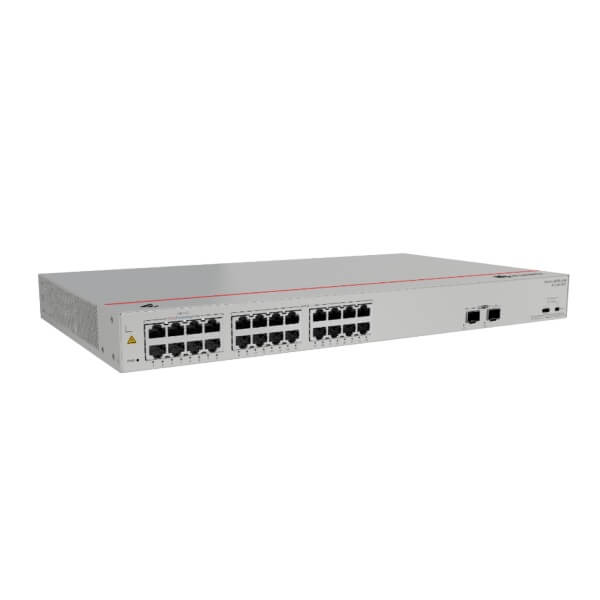

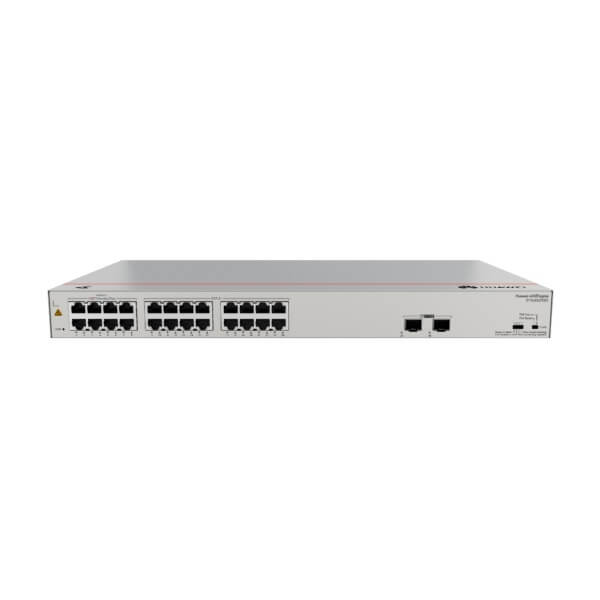

Huawei S110-24LP2SR Network Switch Dubai
The Huawei S110-24LP2SR Dubai fixed Ethernet switches are meticulously designed to integrate both access and transmission functions seamlessly within enterprise networks. Renowned for their reliable access and superior transmission capabilities, these switches are an excellent choice for businesses that require a network solution that is both efficient and robust. Built on a unified hardware platform, they include a complete system that consists of the chassis, power module, fan module, and Switch Control Unit (SCU), ensuring consistent performance and reliability.
As unmanaged switches, the Huawei S110-24LP2SR Dubai models are intentionally designed without web-based management interfaces or Simple Network Management Protocol (SNMP) capabilities, which are typically used for remote administration. This design emphasizes simplicity and ease of use, making these switches particularly suitable for straightforward network configurations that do not demand complex management. They provide a practical, efficient, and reliable solution tailored for enterprises that prioritize ease of installation and operation. For users seeking a hassle-free experience, these switches offer a dependable and straightforward network solution, eliminating the need for advanced management features. In essence, they deliver a reliable, efficient, and user-friendly networking option, perfectly suited for the demands of modern businesses.
Technical Specifications
| Description | S110-24LP2SR (24*10/100/1000BASE-T ports, 2*GE SFP ports, PoE+, AC power) |
| Part Number | 98012198 |
| Model | S110-24LP2SR |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 260.0 mm (1.72 in. x 17.40 in. x 10.24 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 267.0 mm (1.72 in. x 17.40 in. x 10.51 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 555.0 mm x 400.0 mm (3.54 in. x 21.85 in. x 15.75 in.) |
| Chassis height [U] | 1 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 3.2 kg (7.05 lb) |
| Weight with packaging [kg(lb)] | 3.7 kg (8.16 lb) |
| Typical power consumption [W] | 24 W |
| Typical heat dissipation [BTU/hour] | 81.89 BTU/hour |
| Maximum power consumption [W] | Without PoE: 24 W
Full PoE load: 165 W (PoE: 124 W) |
| Maximum heat dissipation [BTU/hour] | Without PoE: 81.89
Full PoE load: 563 |
| Static power consumption [W] | 13 W |
| MTBF [years] | 42.92 years |
| MTTR [hours] | 2 hours |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | Noise-free (no fans), < 30 |
| Noise at normal temperature (acoustic pressure) [dB(A)] | Noise-free (no fans), < 20 |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 0 |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Packet forwarding rate | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Uplink ports | 2 x GE SFP ports |
| Downlink ports | 24 x 10/100/1000BASE-T ports (124 W PoE+) |
| Working mode |
|
| MAC address entry | 8K |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | AC input: 100–240 V AC; 50/60 Hz |
| Input voltage range [V] | AC input: 90 V AC to 300 V AC; 47 Hz to 63 Hz |
| Maximum input current [A] | 3 A |
| Memory | – |
| Flash memory | – |
| Console port | Not supported |
| Eth Management port | Not supported |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±4 kV |
| Power supply surge protection [kV] | Differential mode: ±6 kV; common mode: ±6 kV |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | None |
| Heat dissipation mode | Natural heat dissipation |
| Airflow direction | – |
| PoE | Supported |
| Certification |
|
