Description

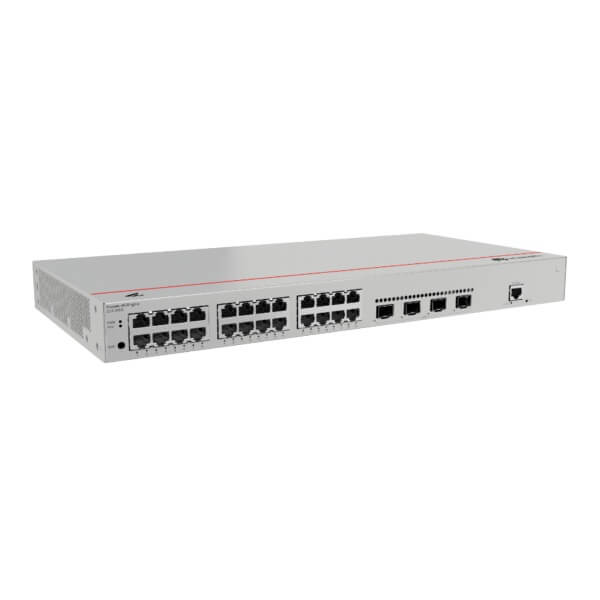

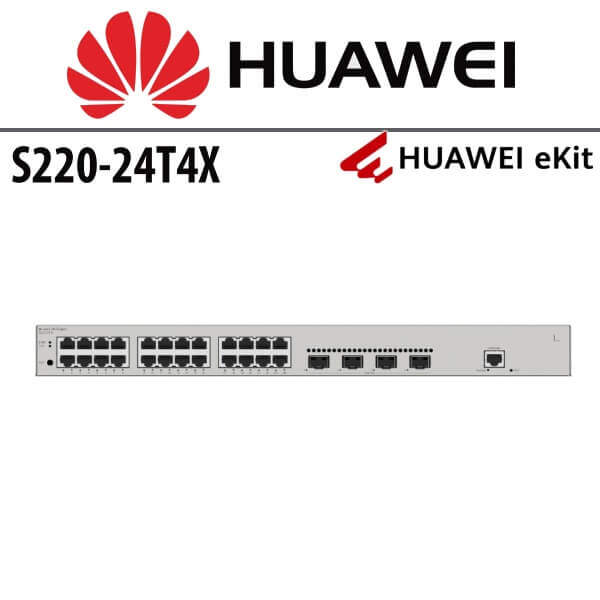

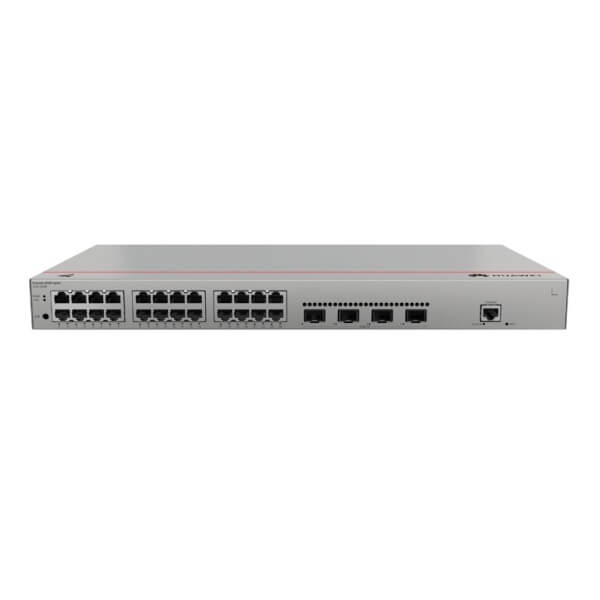

Huawei S220-24T4X Network Switch Dubai
The Huawei S220-24T4X Dubai fixed Ethernet switches are meticulously engineered to seamlessly integrate access and transmission functions within enterprise networks. These switches are highly regarded for their dependable access and superior transmission quality, making them an ideal choice for businesses seeking robust and efficient network solutions. Built on a unified hardware platform, the Huawei S220-24T4X includes a fully integrated system featuring the chassis, power module, fan module, and Switch Control Unit (SCU). This cohesive design ensures reliable performance and consistent operation across the network.
As unmanaged switches, the Huawei S220-24T4X Dubai models are purposefully designed without web-based management interfaces or Simple Network Management Protocol (SNMP) capabilities for remote administration. This deliberate design choice highlights their simplicity and user-friendliness, making them an excellent option for straightforward network setups that do not require complex management features. These switches offer a practical, efficient, and reliable networking solution for enterprises that prioritize ease of installation and operation.
For users seeking a hassle-free experience, the Huawei S220-24T4X Dubai switches are particularly advantageous, delivering a dependable and straightforward network solution without the need for advanced management capabilities. These switches are tailored to meet the demands of modern businesses, ensuring seamless integration and high performance in enterprise environments. With their focus on reliability and efficiency, the Huawei S220-24T4X Dubai switches stand out as an effective networking option for businesses looking to simplify their network infrastructure while maintaining excellent performance.
Technical Specifications
| Description | S220-24T4X (24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, built-in AC power) |
| Part Number | 98012375 |
| Model | S220-24T4X |
| First supported version | V600R023C00 |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) |
| Chassis height [U] | 1 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 2.32 kg (5.11 lb) |
| Weight with packaging [kg(lb)] | 3.44 kg (7.58 lb) |
| Typical power consumption [W] | 27.27 W |
| Typical heat dissipation [BTU/hour] | 93.05 BTU/hour |
| Maximum power consumption [W] | 35.04 W |
| Maximum heat dissipation [BTU/hour] | 119.56 BTU/hour |
| Static power consumption [W] | 19.00 W |
| MTBF [years] | 70.75 years |
| MTTR [hours] | 2 hours |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 47 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 35 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 1 |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Packet forwarding rate | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Uplink ports | 4 x 10GE SFP+ ports |
| Downlink ports | 24 x 10/100/1000BASE-T ports |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Devices cannot start when the temperature is lower than 0°C (32°F). |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | AC input: 100–240 V AC; 50/60 Hz |
| Input voltage range [V] | AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz |
| Maximum input current [A] | 0.8 A |
| Memory | 2 GB |
| Flash memory | Physical space: 1 GB |
| Console port | RJ45 |
| Eth Management port | Not supported |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±7 kV |
| Power supply surge protection [kV] | Differential mode: ±6 kV; common mode: ±6 kV |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | Built-in |
| Heat dissipation mode | Air cooling for heat dissipation, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and front, air exhaustion from right |
| PoE | Not supported |
| Certification |
|
