Description

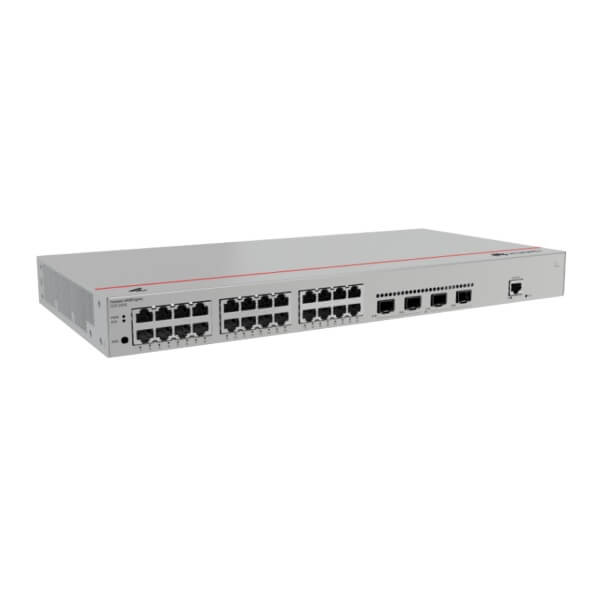

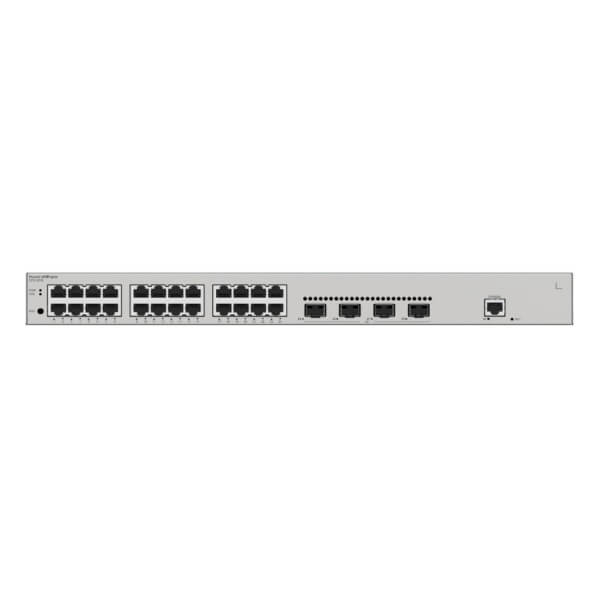

Huawei S310-24T4S Network Switch Dubai
The Huawei S310-24T4S Dubai fixed Ethernet switches are carefully engineered to seamlessly integrate both access and transmission functionalities, delivering reliable access, aggregation, and high-quality service transmission for enterprise networks. These switches are constructed on a solid, unified hardware platform, incorporating essential components such as the chassis, power module, fan module, and Switch Control Unit (SCU). Designed specifically as unmanaged switches, the Huawei S310-24T4S Dubai models are intentionally built without support for web-based management interfaces or SNMP-based management systems. This intentional design choice prioritizes simplicity, ease of use, and straightforward deployment, catering to users who value minimal configuration and low maintenance.
These switches are ideal for environments where ease of use and reliability are crucial, offering a hassle-free experience for network administrators. The design ensures that these switches can be quickly deployed and efficiently managed without the need for complex configurations. By focusing on these key aspects, the Huawei S310-24T4S Dubai switches ensure that network operations remain smooth, efficient, and dependable, meeting the needs of businesses that require robust, user-friendly, and reliable network solutions. With their emphasis on simplicity and reliability, these switches are an excellent choice for businesses seeking to enhance their network infrastructure with minimal effort and maximum performance.
Technical Specifications
| Description | S310-24T4S (24*10/100/1000BASE-T ports, 4*GE SFP ports, AC power) |
| Part Number | 98012202 |
| Model | S310-24T4S |
| First supported version | V600R022C10 |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) |
| Chassis height [U] | 1 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 2.32 kg (5.11 lb) |
| Weight with packaging [kg(lb)] | 3.44 kg (7.58 lb) |
| Typical power consumption [W] | 26.37 W |
| Typical heat dissipation [BTU/hour] | 89.98 BTU/hour |
| Maximum power consumption [W] | 34.04 W |
| Maximum heat dissipation [BTU/hour] | 116.15 BTU/hour |
| Static power consumption [W] | 19.00 W |
| MTBF [years] | 70.75 years |
| MTTR [hours] | 2 hours |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 47 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 35 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 1 |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Packet forwarding rate | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Uplink ports | 4 x GE SFP ports |
| Downlink ports | 24 x 10/100/1000BASE-T ports |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Devices cannot start when the temperature is lower than 0°C (32°F). |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | AC input: 100–240 V AC; 50/60 Hz |
| Input voltage range [V] | AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz |
| Maximum input current [A] | 0.8 A |
| Memory | 2 GB |
| Flash memory | Physical space: 1 GB |
| Console port | RJ45 |
| Eth Management port | Not supported |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±7 kV |
| Power supply surge protection [kV] | Differential mode: ±6 kV; common mode: ±6 kV |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | Built-in |
| Heat dissipation mode | Air cooling for heat dissipation, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and front, air exhaustion from right |
| PoE | Not supported |
| Certification |
|
