Description

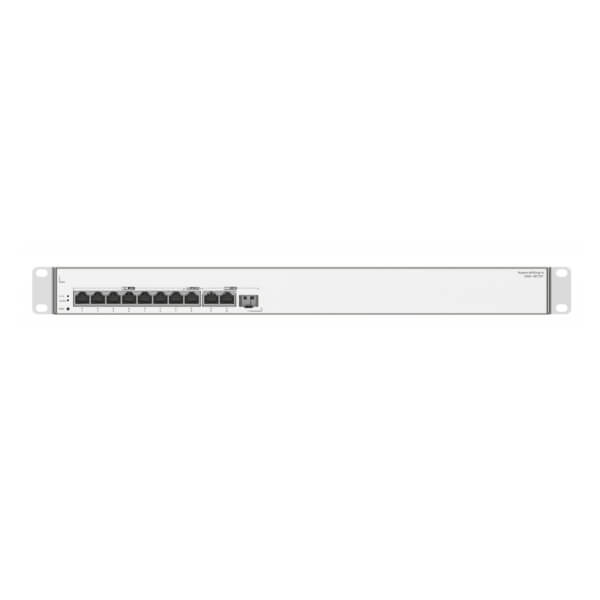

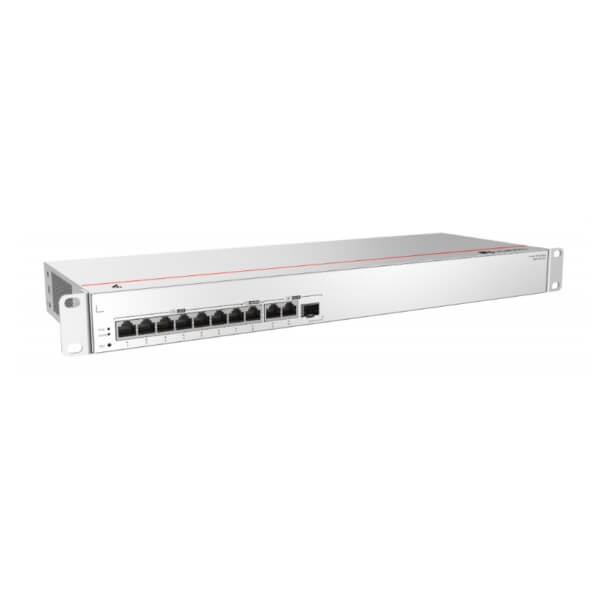

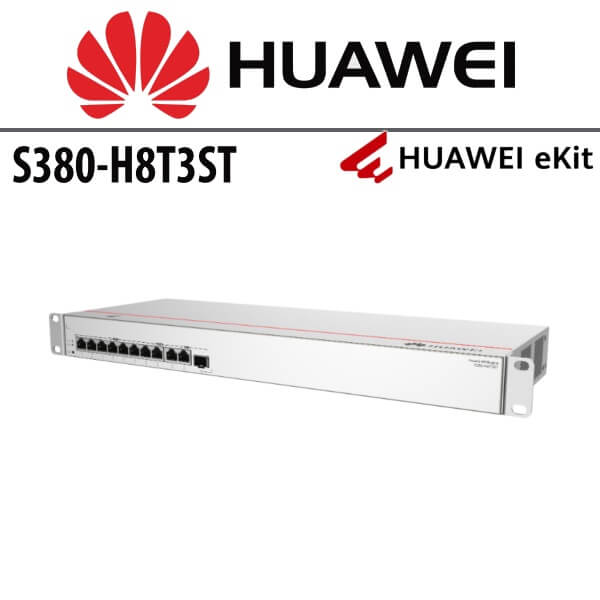

Huawei S380-H8T3ST Multi-Service Gateway Dubai
The Huawei S380-H8T3ST Dubai Multi-Service Gateways are cutting-edge devices that seamlessly combine routing, switching, and wireless access control (WAC) functionalities into a single, comprehensive unit. These advanced gateways are available in multiple configurations, designed to meet a wide range of network needs. The models feature either 4 or 8 downlink GE electrical ports, with options for both Power over Ethernet (PoE) and non-PoE ports, allowing users to choose the configuration that best suits their specific requirements. Additionally, certain models include GE uplink ports, providing enhanced network flexibility and boosting overall performance.
Engineered with ease of use in mind, the Huawei S380-H8T3ST Dubai Multi-Service Gateways support flexible Ethernet networking, significantly simplifying the installation and deployment processes. This user-centric design makes them ideal for a variety of indoor coverage applications. These gateways are especially well-suited for small and medium-sized enterprises (SMEs), including small office/home office (SOHO) environments, cost-sensitive hotels, manufacturing facilities, primary and secondary schools, and building security systems. Their exceptional versatility and adaptability make the Huawei S380-H8T3ST Dubai a powerful solution for addressing the diverse networking needs of various business sectors, ensuring efficient and reliable performance across a wide range of applications.
Furthermore, the Huawei S380-H8T3ST gateways are built to be highly scalable, allowing businesses to easily upgrade and expand their networks as their needs evolve. The inclusion of advanced security features provides robust protection against potential threats, safeguarding the network’s integrity and confidentiality. The combination of these features positions the Huawei S380-H8T3ST Dubai Multi-Service Gateways as an ideal solution for businesses in search of a reliable, high-performance networking device capable of adapting to their changing demands. With these gateways, businesses can confidently grow their network infrastructure, knowing they have a dependable and versatile solution to support their expansion and operational efficiency.
Technical Specifications
| Description | S380-H8T3ST, 2*GE WAN, 1*GE(SFP) WAN, 8*GE LAN |
| Part Number | 98012181 |
| Model | S380-H8T3ST |
| First supported version | V600R022C10 |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 160.0 mm (1.72 in. x 17.4 in. x 6.3 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 166.7 mm (1.72 in. x 17.4 in. x 6.56 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 260.0 mm (3.54 in. x 21.65 in. x 10.24 in.) |
| Chassis height [U] | 1 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 1.6 kg (3.53 lb) |
| Weight with packaging [kg(lb)] | 2.1 kg (4.63 lb) |
| Typical power consumption [W] | 11.25 W |
| Typical heat dissipation [BTU/hour] | 38.4 BTU/hour |
| Maximum power consumption [W] | 11.5 W |
| Maximum heat dissipation [BTU/hour] | 39.2 BTU/hour |
| Static power consumption | 6.49 |
| MTBF [years] | 63.71 years |
| MTTR [hours] | 2 hours |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | Noise-free (no fans), < 30 |
| Noise at normal temperature (acoustic pressure) [dB(A)] | Noise-free (no fans), < 20 |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 0 |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Packet forwarding rate | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| WAN ports | 2 x GE WAN, 1 x GE (SFP) WAN |
| LAN ports | 8 x GE LAN |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | AC input: 100–240 V AC; 50/60 Hz |
| Input voltage range [V] | AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz |
| Maximum input current [A] | 0.8 A |
| Memory | DDR4: 1 GB |
| Flash memory | NAND Flash: 512 MB |
| Console port | Not supported |
| Eth Management port | LAN port |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±4 kV |
| Power supply surge protection [kV] | Power adapter: ±6 kV in differential mode and ±6 kV in common mode |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | None |
| Heat dissipation mode | Natural heat dissipation |
| Airflow direction | – |
| PoE | Not supported |
| Certification |
|
