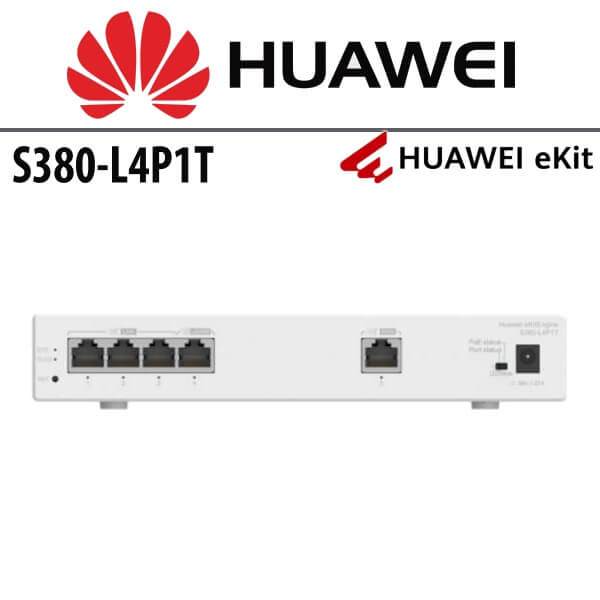

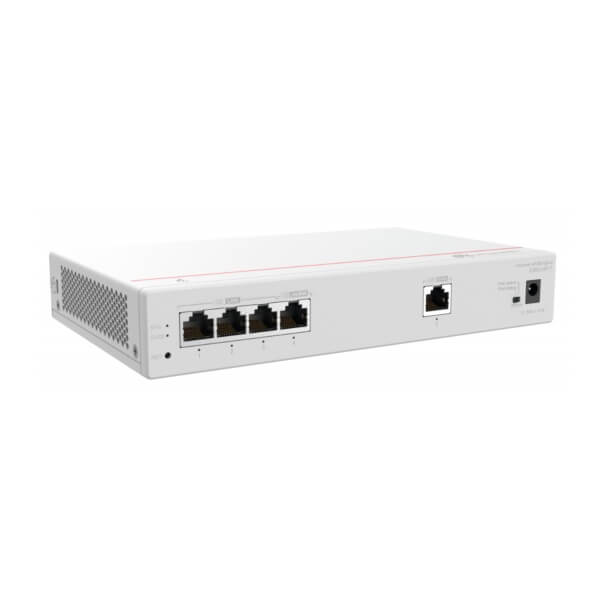

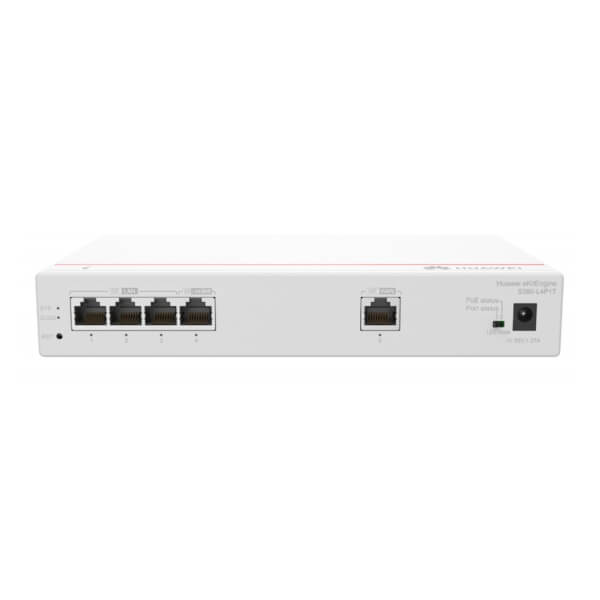

Huawei S380-L4P1T Multi-Service Gateway Dubai
The Huawei S380-L4P1T Dubai Multi-Service Gateways are advanced devices designed to integrate a range of critical networking functions—routing, switching, and wireless access control (WAC)—into one comprehensive and unified unit. These sophisticated gateways are available in multiple configurations to address the varying needs of diverse network environments. Among the options offered are models equipped with either 4 or 8 downlink GE electrical ports, with choices between PoE (Power over Ethernet) and non-PoE variants, catering to specific power delivery requirements. Additionally, certain models come with GE uplink ports, providing further enhancements to network scalability and flexibility.
Engineered for ease of use, the Huawei S380-L4P1T Dubai Multi-Service Gateways support flexible Ethernet networking, significantly simplifying both the installation and deployment processes. This makes them an excellent solution for a wide range of indoor coverage scenarios. These gateways are particularly ideal for small and medium-sized enterprises (SMEs), such as small office/home office (SOHO) setups, cost-sensitive hotels, manufacturing plants, primary and secondary educational institutions, and building security systems. The gateways’ versatility and adaptability allow them to effectively fulfill the diverse networking needs across various business sectors, ensuring efficient and reliable performance in multiple application contexts.
Technical Specifications
| Description | S380-L4P1T, 1*GE WAN, 4*GE LAN(PoE+, 50W) |
| Part Number | 98012178 |
| Model | S380-L4P1T |
| First supported version | V600R022C10 |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 35.0 mm x 210.0 mm x 130.0 mm (1.38 in. x 8.27 in. x 5.12 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 35.0 mm x 210.0 mm x 136.3 mm (1.38 in. x 8.27 in. x 5.37 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 285.0 mm x 180.0 mm (3.54 in. x 11.22 in. x 7.09 in.) |
| Chassis height [U] | 0.8 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 0.9 kg (1.98 lb) |
| Weight with packaging [kg(lb)] | 1.1 kg (2.43 lb) |
| Typical power consumption [W] | 7.19 W |
| Typical heat dissipation [BTU/hour] | 24.5 BTU/hour |
| Maximum power consumption [W] | 61.65 W (PoE: 50 W) |
| Maximum heat dissipation [BTU/hour] | 210.4 BTU/hour |
| Static power consumption [W] | 4.54 W |
| MTBF [years] | 75.89 years |
| MTTR [hours] | 2 hours |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | Noise-free (no fans), < 30 |
| Noise at normal temperature (acoustic pressure) [dB(A)] | Noise-free (no fans), < 20 |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 0 |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Packet forwarding rate | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Uplink ports | 1 x GE WAN |
| Downlink ports | 1 x GE WAN, 4 x GE LAN (50 W PoE+) |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | Power adapter |
| Rated input voltage [V] | Power adapter input: 100–240 V AC; 50/60 Hz
Power adapter output: 56 V DC |
| Input voltage range [V] | Power adapter input: 90–290 V AC; 47–63 Hz |
| Maximum input current [A] | 1.07 A |
| Memory | DDR4: 512 MB |
| Flash memory | NAND Flash: 512 MB |
| Console port | Not supported |
| Eth Management port | LAN port |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±4 kV |
| Power supply surge protection [kV] | Power adapter: ±6 kV in differential mode and ±6 kV in common mode |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | None |
| Heat dissipation mode | Natural heat dissipation |
| Airflow direction | – |
| PoE | Supported |
| Certification |
|
