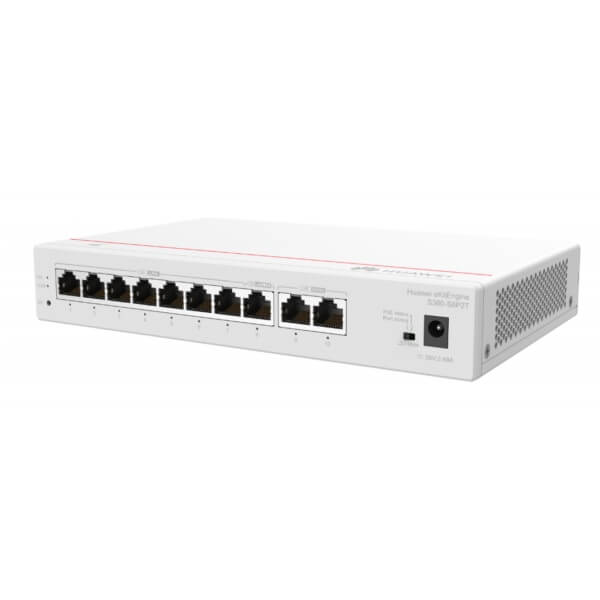

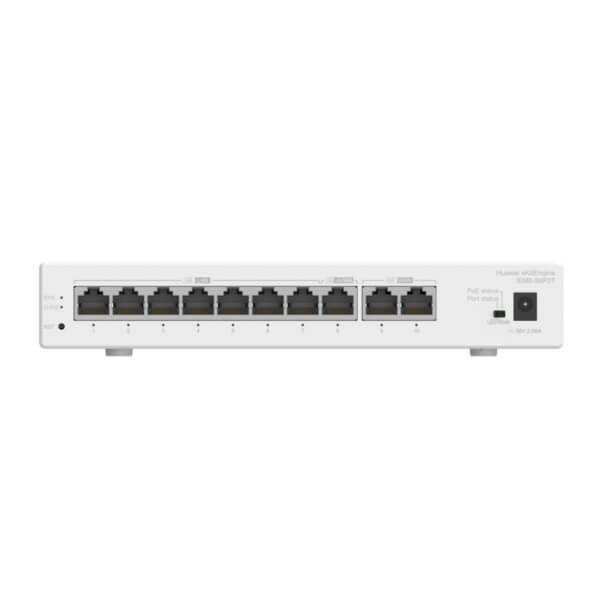

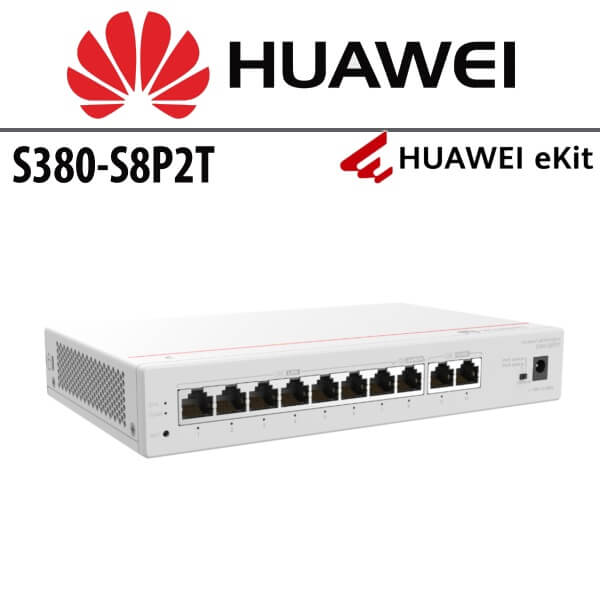

Huawei S380-S8P2T Multi-Service Gateway Dubai
The Huawei S380-S8P2T Dubai Multi-Service Gateways represent a sophisticated blend of routing, switching, and wireless access control (WAC) capabilities, all encapsulated within a single, versatile unit. These state-of-the-art gateways are available in a variety of configurations, meticulously designed to cater to a wide spectrum of network requirements. Depending on the model, they offer either 4 or 8 downlink GE electrical ports, with the flexibility to choose between Power over Ethernet (PoE) and non-PoE options, allowing users to tailor the device to their specific needs. Some models also feature GE uplink ports, which further enhance network performance and adaptability.
With a focus on user convenience, the Huawei S380-S8P2T Dubai Multi-Service Gateways are engineered for flexible Ethernet networking, greatly simplifying both installation and deployment. This user-centric design makes them an excellent choice for various indoor coverage applications. They are particularly well-suited for small and medium-sized enterprises (SMEs), including small office/home office (SOHO) setups, budget-conscious hotels, manufacturing facilities, primary and secondary educational institutions, and building security systems. Their remarkable versatility and adaptability enable the Huawei S380-S8P2T Dubai to meet the diverse networking needs of various business sectors, providing efficient and reliable performance across a broad range of applications.
In addition, the Huawei S380-S8P2T gateways are built with scalability in mind, ensuring that as businesses grow and their networking demands evolve, these gateways can be easily upgraded and expanded to meet new challenges. The inclusion of advanced security features offers robust protection against potential threats, safeguarding the network’s integrity and confidentiality. This combination of scalability, security, and high performance makes the Huawei S380-S8P2T Dubai Multi-Service Gateways an ideal solution for businesses seeking a reliable networking device capable of adapting to their changing needs.
Technical Specifications
| Description | S380-S8P2T, 2*GE WAN, 8*GE LAN(PoE+, 124W) |
| Part Number | 98012180 |
| Model | S380-S8P2T |
| First supported version | V600R022C10 |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 35.0 mm x 210.0 mm x 130.0 mm (1.38 in. x 8.27 in. x 5.12 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 35.0 mm x 210.0 mm x 136.3 mm (1.38 in. x 8.27 in. x 5.37 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 150.0 mm x 275.0 mm x 200.0 mm (5.91 in. x 10.83 in. x 7.87 in.) |
| Chassis height [U] | 0.8 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 1.5 kg (3.31 lb) |
| Weight with packaging [kg(lb)] | 1.8 kg(lb) |
| Typical power consumption [W] | 12.4 W |
| Typical heat dissipation [BTU/hour] | 42.3 BTU/hour |
| Maximum power consumption [W] | 145.8 W (PoE: 124 W) |
| Maximum heat dissipation [BTU/hour] | 497.5 BTU/hour |
| Static power consumption | 7.53 |
| MTBF [years] | 65.36 years |
| MTTR [hours] | 2 hours |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | Noise-free (no fans), < 30 |
| Noise at normal temperature (acoustic pressure) [dB(A)] | Noise-free (no fans), < 20 |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 0 |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Packet forwarding rate | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| WAN ports | 2 x GE WAN |
| LAN ports | 8 x GE LAN (124 W PoE+) |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | Power adapter |
| Rated input voltage [V] | Power adapter input: 100–240 V AC; 50/60 Hz
Power adapter output: 56 V DC |
| Input voltage range [V] | Power adapter input: 90–290 V AC; 47–63 Hz |
| Maximum input current [A] | 2.68 A |
| Memory | DDR4: 512 MB |
| Flash memory | NAND Flash: 512 MB |
| Console port | Not supported |
| Eth Management port | LAN port |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±4 kV |
| Power supply surge protection [kV] | Power adapter: ±6 kV in differential mode and ±6 kV in common mode |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | None |
| Heat dissipation mode | Natural heat dissipation |
| Airflow direction | – |
| PoE | Supported |
| Certification |
|
