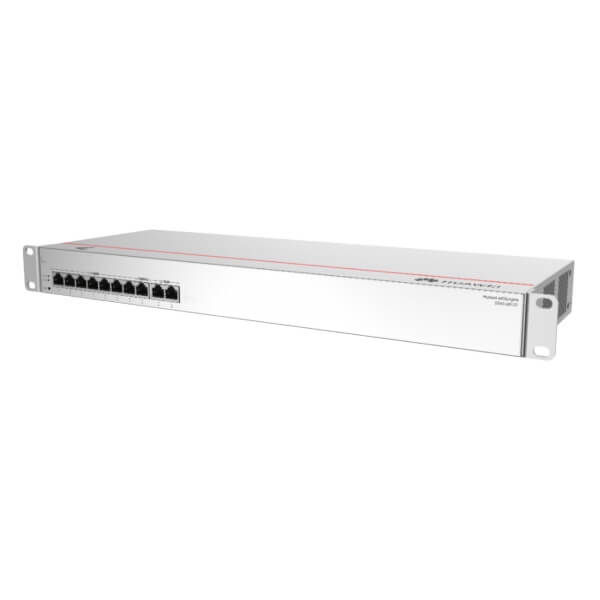

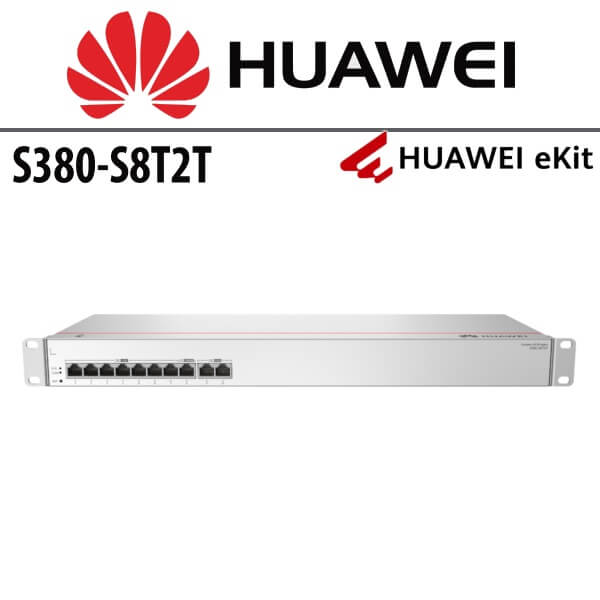

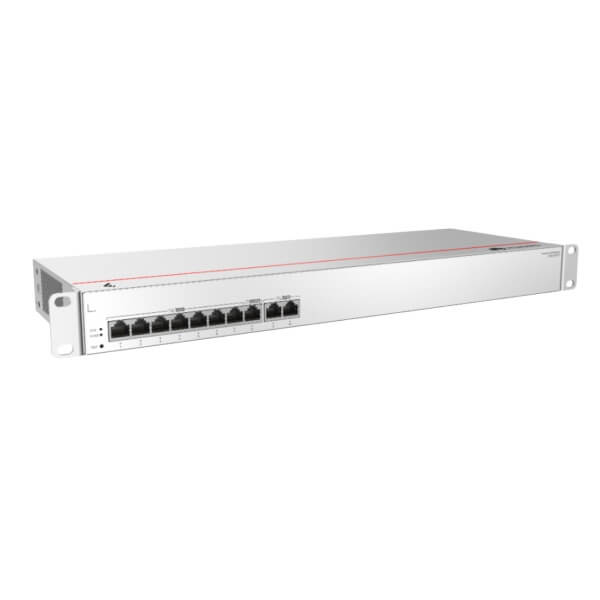

Huawei S380-S8T2T Multi-Service Gateway Dubai
The Huawei S380-S8T2T Dubai Multi-Service Gateways are advanced devices that seamlessly combine routing, switching, and wireless access control (WAC) functionalities into one comprehensive, all-in-one unit. These innovative gateways are available in multiple configurations, each carefully designed to cater to a broad spectrum of network demands. Depending on the model, they are equipped with either 4 or 8 downlink GE electrical ports, providing users with the flexibility to choose between Power over Ethernet (PoE) and non-PoE options, tailored to their specific requirements. Additionally, select models are equipped with GE uplink ports, further enhancing network flexibility and overall performance.
Designed with user convenience at the forefront, the Huawei S380-S8T2T Dubai Multi-Service Gateways support versatile Ethernet networking, which greatly simplifies the installation and deployment process. This user-centric design makes these gateways an ideal solution for a wide range of indoor coverage applications. Their features are particularly beneficial for small and medium-sized enterprises (SMEs), including small office/home office (SOHO) setups, budget-conscious hotels, manufacturing facilities, educational institutions at the primary and secondary levels, and building security systems. The Huawei S380-S8T2T Dubai Gateways are not only highly versatile and adaptable, but they also ensure that various business sectors can effectively meet their diverse networking needs. As a result, these gateways deliver efficient and reliable performance across a wide array of applications, making them an invaluable asset in today’s fast-paced, technology-driven environment.
Technical Specifications
| Description | S380-S8T2T, 2*GE WAN, 8*GE LAN |
| Part Number | 98012179 |
| Model | S380-S8T2T |
| First supported version | V600R022C10 |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 160.0 mm (1.72 in. x 17.4 in. x 6.3 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 165.2 mm (1.72 in. x 17.4 in. x 6.5 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 260.0 mm (3.54 in. x 21.65 in. x 10.24 in.) |
| Chassis height [U] | 1 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 1.6 kg (3.53 lb) |
| Weight with packaging [kg(lb)] | 2.1 kg (4.63 lb) |
| Typical power consumption [W] | 10.4 W |
| Typical heat dissipation [BTU/hour] | 35.5 BTU/hour |
| Maximum power consumption [W] | 10.55 W |
| Maximum heat dissipation [BTU/hour] | 36 BTU/hour |
| Static power consumption [W] | 5.82 W |
| MTBF [years] | 67.79 years |
| MTTR [hours] | 2 hours |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | Noise-free (no fans), < 30 |
| Noise at normal temperature (acoustic pressure) [dB(A)] | Noise-free (no fans), < 20 |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 0 |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Packet forwarding rate | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| Uplink ports | 2 x GE WAN |
| Downlink ports | 8 x GE LAN |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | AC input: 100–240 V AC; 50/60 Hz |
| Input voltage range [V] | AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz |
| Maximum input current [A] | 0.8 A |
| Memory | DDR4: 512 MB |
| Flash memory | NAND Flash: 512 MB |
| Console port | Not supported |
| Eth Management port | LAN port |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±4 kV |
| Power supply surge protection [kV] | Power adapter: ±6 kV in differential mode and ±6 kV in common mode |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | None |
| Heat dissipation mode | Natural heat dissipation |
| Airflow direction | – |
| PoE | Not supported |
| Certification |
|
