Description

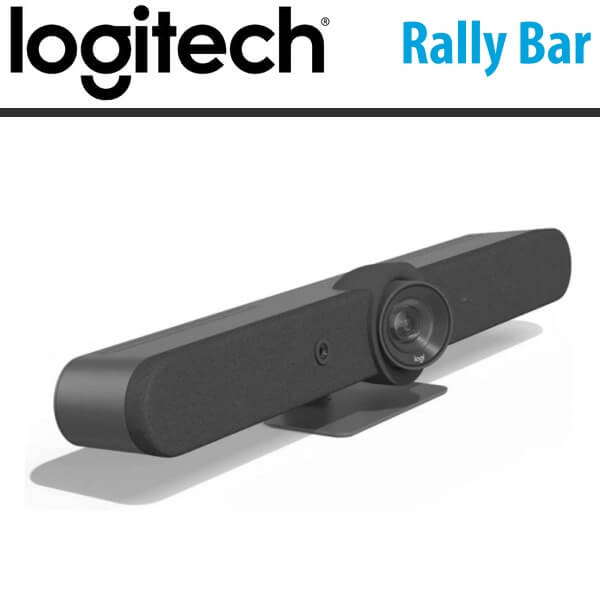

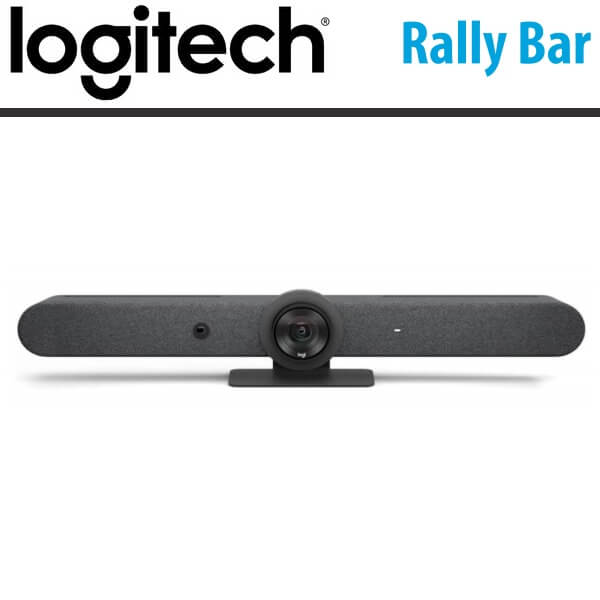

Logitech Rally Bar Dubai

The Logitech Rally Bar Dubai is designed to provide exceptional meeting experiences with high-quality audio and video. Its multi-element lens assembly, powerful low distortion speakers, and advanced microphone system ensure that meetings sound as good as they look. Additionally, a dedicated AI camera enhances the RightSight auto-framing feature and provides valuable insights about room usage, all conveniently accessible through the Logitech Sync dashboard. Elevate your video collaboration with the Logitech Rally Bar, offering a sleek, all-in-one design that delivers cinema-quality video and audio. It’s incredibly user-friendly, easy to manage, and scalable. You can seamlessly connect and use the Rally Bar with any PC or Mac, or leverage its built-in computing capabilities to run video conferencing applications directly on the device. The Logitech Rally Bar is the ideal solution for midsize meeting rooms, offering automated PTZ (pan, tilt, zoom), brilliant optics, and high-performance audio. With the Rally Bar, video meetings can be as natural and productive as in-person collaboration.

Logitech Rally Bar Features

SIMPLE TO SET UP

USB Plug and Play Easily connects to virtually any PC or Mac®, with no additional software required Appliance Mode. Built-in compute allows you to run supported video conferencing applications such as Zoom directly on the device. All-in-One Design Sleek, minimal footprint expedites setup and reduces clutter. Streamlined, Flexible Installs Confidently deploy at scale with smart cable management and multiple mounting options

SIMPLE TO MANAGE

Logitech Sync Single platform to monitor room health and keep devices up to date, plus insights on room occupancy Deploy Updates at Scale Easily propagate upgrades and bug fxes to Rally Bar and your other supported Logitech devices Forward-Looking Architecture Sync API is a robust foundation for new insights and integrations Partner Dashboard Support Fully integrated with partner solutions like Microsoft Teams, Zoom, and others for a simplifed device management experience

RightSense Technologies

RightSight Detects meeting participants, automatically moves the lens and adjusts the zoom so no one is left out of the picture. RightLight Intelligently adjusts video settings in all light conditions so everyone always looks their best. RightSound AI-driven voice leveling and unwanted noise suppression deliver outstanding clarity.

AI VIEWFINDER

A second built-in camera lens has the ability to detect meeting participants, amplifying RightSight autoframing. All meeting participants, even late arrivals, are automatically seen and included. AI Viewfinder uses scene awareness to keep the camera on the action

Audio Features

Room-flling Sound large, Ultra low distortion speakers with RightSound™ convey every word with outstanding clarity Adaptive Beamforming Mic Array Beamforming mics pick up voices at every seat and focus on the active talker while suppressing ambient noise Expansion Ready Add up to three Rally mic pods for even greater coverage in larger setting

Video Features

Ultra-HD Video brilliantly sharp video, outstanding color, and exceptional optical accuracy at resolutions up to 4K. Expansive Room Coverage Motorized lens covers rooms 130° across by 80° high, with lossless image quality up to 5X optical zoom. Logitech RightLight™ technology captures natural-looking skin tones, even in dim or backlit conditions.

Logitech Rally Bar Specifications

Camera

Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
Pan: Motorized ±25°
Tilt: Motorized ±15°
Zoom: 15X HD zoom (5X optical, 3X digital available with upcoming software update)
Diagonal field of view (dFoV): 90°
Horizontal Field of View: 82.1°
Vertical Field of View: 52.2°
Total Room Coverage: 132.1° Horizontal x 82.2° Vertical

Speakers

Drivers: 2x 70 mm
Output: 90dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter
Sensitivity: 90+/-3dB SPL at 1W, ½ meter
THD: 1kHz < 2%
Speaker Sampling Rate: 48 kHz

Microphones

Frequency response: 90Hz – 16kHz
Sensitivity: >-36dBFS +/-1 dB @ 1Pa
Microphone data rate output: 48 kHz
Pickup Range: 4.5 m
Beamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams
Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
Noise suppression: AI filter
Add-on Mics: Supports up to 3 additional Rally Mic Pods for larger conference rooms

RightSense™ Technologies

RightLight™: Renders natural skin tones for each participant.
RightSight: Maintains persistent room awareness and detects human figures to auto-frame participants.
RightSound: Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo

Interfaces

HDMI Out: 2
HDMI In: 1
USB 3.0: 3x Type A, 1x Type C
Network: 10/100/1G Ethernet
WiFi: 802.11a/b/g/n/ac (MIMO)
External Mic Input: Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)
Remote Control: Bluetooth® Low Energy

Power & Cables

Power supply: Auto-sensing
Operating Voltage/Power: 100-240V, 19V, 4.74A
Power Supply Dimensions: 127 mm x 51 mm x 30 mm
DC Cable: 1.5 m
AC Cable: 1 m
HDMI 1.4 Cable: 2 m
USB A to USB C 3.0 Cable: 2.2 m

Environmental

Operating Temperature: 0 to 40°C
Storage Temperature: -40 to 70 °C
Humidity: 10 to 95%
BTU/hr: 57 idle, 64 in meeting

Security

Full Disk Encryption: AES-128
Data Encryption: Symmetric Keys, PKI
Device Identity: Protected by device attestation
Device Access: Authenticated using API
Key Protection: Arm TrustZone, RPMP
