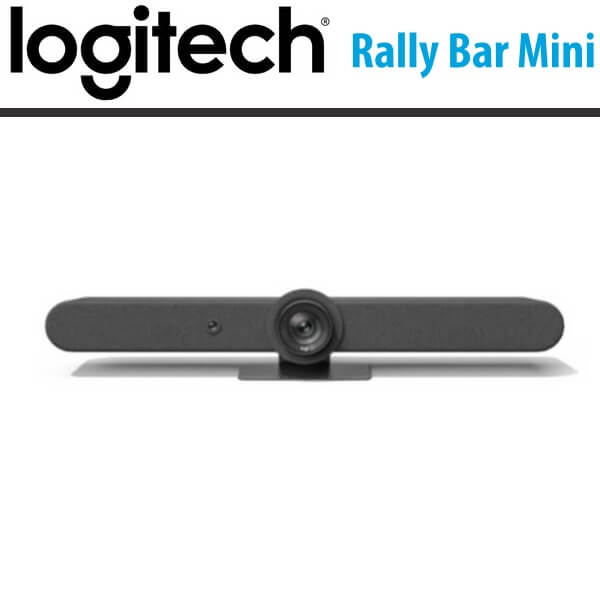

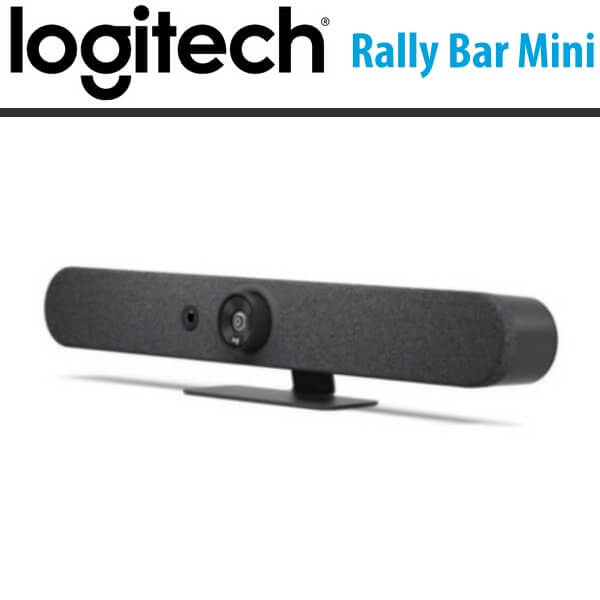

Logitech Rally Bar Mini Dubai

The Logitech Rally Bar Mini Dubai offers a straightforward, scalable, and compact solution, packing the capabilities of larger video bars like the Logitech Rally Bar into smaller spaces. It boasts studio-quality audio and video, motorized pan and tilt functionality, and AI-powered performance, setting new benchmarks for video collaboration. Rally Bar Mini is designed for scalability, suitable for numerous rooms, and it features cable management that keeps things clutter-free. It offers multiple mounting options and flexible deployment modes. You can easily plug and play with almost any PC or Mac, or run supported video conferencing applications directly on the device without the need for a separate computer. Additionally, Rally Bar Mini provides a one-touch join option and can be optionally deployed with Tap for quick and convenient meeting initiation across various cloud services, including Zoom and Microsoft Teams.

Logitech Rally Bar Mini Features

SIMPLE TO SET UP

USB Plug and Play Easily connects to virtually any PC or Mac®, with no additional software required Appliance Mode. Built-in compute allows you to run supported video conferencing applications such as Zoom directly on the device. All-in-One Design Sleek, minimal footprint expedites setup and reduces clutter. Streamlined, Flexible Installs Confidently deploy at scale with smart cable management and multiple mounting options

SIMPLE TO MANAGE

Logitech Sync Single platform to monitor room health and keep devices up to date, plus insights on room occupancy Deploy Updates at Scale Easily propagate upgrades and bug fxes to Rally Bar and your other supported Logitech devices Forward-Looking Architecture Sync API is a robust foundation for new insights and integrations Partner Dashboard Support Fully integrated with partner solutions like Microsoft Teams, Zoom, and others for a simplified device management experience

STAYS FOCUSED

Using AI, human perception, and motorized pan and tilt, Rally Bar Mini adapts to meeting dynamics and keeps the camera on the action.

RightSense Technologies

RightSight Detects meeting participants, automatically moves the lens and adjusts the zoom so no one is left out of the picture. RightLight Intelligently adjusts video settings in all light conditions so everyone always looks their best. RightSound AI-driven voice leveling and unwanted noise suppression deliver outstanding clarity.

AI VIEWFINDER

A second built-in camera lens has the ability to detect meeting participants, amplifying RightSight autoframing. All meeting participants, even late arrivals, are automatically seen and included. AI Viewfinder uses scene awareness to keep the camera on the action

Audio Features

Room-flling Sound Ultra low distortion speakers with RightSound™ convey every word with outstanding clarity Adaptive Beamforming Mic Array Beamforming mics pick up voices at every seat and focus on the active talker while suppressing ambient noise

Video Features

Ultra-HD Video, Brilliantly sharp video, outstanding colour, and exceptional optical accuracy at resolutions up to 4K Expansive. Room Coverage Mechanical pan and tilt cover rooms 163° across by 110° high, with exceptional image quality. Logitech RightLight™ technology captures natural-looking skin tones, even in dim or backlit conditions

Logitech Rally Bar Mini Specifications

Camera

Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
Pan: Motorized ±25°
Tilt: Motorized ±15°
Zoom: 4X HD digital zoom
Diagonal Field of View: 120°
Horizontal Field of View: 113°
Vertical Field of View: 80.7°
Total Room Coverage (field of view + pan and tilt): 163° horizontal x 110° vertical

Dimensions

Height: 91.4 mm
Width: 719 mm
Depth: 101 mm 2Camera adds 28.8mm to the depth.
Weight: 4.03 kgs

Speakers

Woofer: 70 mm
Mid-range: 2x / 1.5 in
Output: 90 dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter
Sensitivity: 86+/-2 dB SPL at 1W, ½ meter
THD: 1kHz < 2%
Speaker Sampling Rate: 48 kHz

Microphones

Frequency response: 90Hz – 16kHz
Sensitivity: >-36dBFS +/-1 dB @ 1Pa
Microphone data rate output: 48 kHz
Pickup Range: 4.5 m
Beamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams
Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
Noise suppression: AI filter
Add-on Mics: Supports up to 2 additional Rally Mic Pods

RightSense™ Technologies

RightLight™: Renders natural skin tones for each participant
RightSight: Maintains persistent room awareness and detects human figures to auto-frame participants.
RightSound: Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo

Interfaces

HDMI Out: 2
HDMI In: 1
USB 3.0: 3x Type A, 1x Type C
Network: 10/100/1G Ethernet
WiFi: 802.11a/b/g/n/ac (MIMO)
External Mic Input: Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)
Remote Control: Bluetooth® Low Energy

Power & Cables

Power supply: Auto-sensing
Operating Voltage/Power: 100-240V, 19V, 4.74A
Power Supply Dimensions: 127 mm x 51 mm x 30 mm
DC Cable: 1.5 m
AC Cable: 1 m
HDMI 1.4 Cable: 2 m
USB A to USB C 3.0 Cable: 2.2 m

Environmental

Operating Temperature: 0 to 40°C
Storage Temperature: -40 to 70°C
Humidity: 10 to 95%
BTU/hr: 57 idle, 64 in meeting

Security

Full Disk Encryption: AES-128
Data Encryption: Symmetric Keys, PKI
Device Identity: Protected by device attestation
Device Access: Authenticated using API
Key Protection: Arm TrustZone, RPMP
