Description

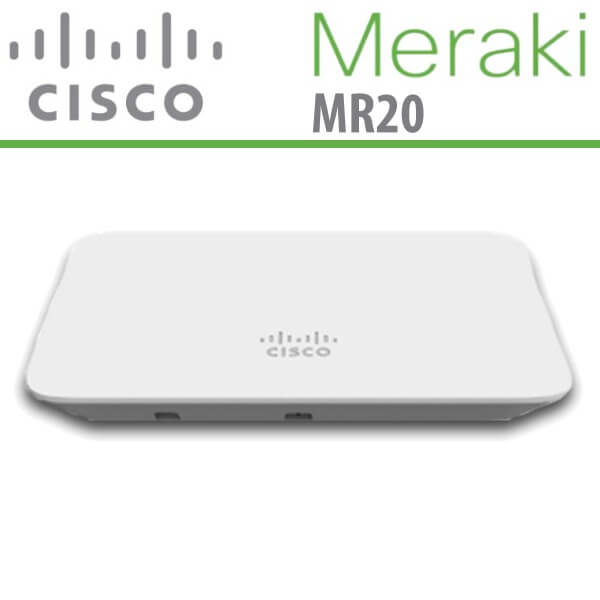

Cisco Meraki MR20 Dubai

The Cisco Meraki MR20 Dubai offers a maximum aggregate frame rate of 1.3 Gbps* through its concurrent 2.4 GHz and 5 GHz radios. This wireless access point, the Cisco Meraki MR20 Dubai , is equipped with dual-band, 802.11ac Wave 2 technology and supports MU-MIMO. It is specifically designed for basic, low-density deployments, providing enterprise-grade security and simple management. By combining intuitive cloud management, 802.11ac Wave 2 wireless, and top-notch security features, Cisco’s Wi-Fi solution in Dubai ensures a safe and reliable connectivity experience for small businesses and home offices that primarily require basic connectivity. Additionally, the management of the Meraki wifi AP in Dubai is facilitated through the Meraki cloud, which offers a user-friendly browser-based interface. This allows for quick deployment without the need for any training or certifications. With continuous monitoring by the Meraki cloud, the Cisco Meraki MR20 Dubai can promptly provide real-time alerts in case of any network issues. Furthermore, the access point offers diagnostic tools that enable troubleshooting over the web in real-time. The Cisco Meraki MR20 Dubai is firmware is regularly updated from the cloud, ensuring that users receive new features, bug fixes, and enhancements seamlessly without the hassle of manual software downloads or concerns about missing security patches.

Meraki MR20 Features

• 2×2 MU-MIMO 802.11ac Wave 2
• 3 Gbps* aggregate dual-band frame rate
• Integrated enterprise security and guest access
• Built-in WIPS for threat detection and remediation
• Application-aware traffic shaping
• Self-configuring, plug-and-play deployment
• Integrated location analytics and heat map

Multi User Multiple Input Multiple Output (MU-MIMO)

With support for the 802.11ac Wave 2 standard, the Cisco Meraki MR20 Dubai provides MU-MIMO for more efficient transmission to multiple clients. This increases the total network performance and the improves the end user experience

Integrated enterprise security and guest access

The Meraki-MR20-Dubai features integrated, easy-to-use security technologies to provide secure connectivity for employees and guests alike. Advanced security features such as AES hardware-based encryption and WPA2-Enterprise authentication with 802.1X provide wire-like security while still being easy to configure. One-click guest isolation provides secure, Internet-only access for visitors. Our policy firewall (Identity Policy Manager) enables group or device-based, granular access policy control.

Secure wireless environments using Air Marshal

The Cisco Meraki MR20 Wireless Dubai comes equipped with Air Marshal, a built-in wireless intrusion prevention system (WIPS) for threat detection and attack remediation. MR20 access points will scan their environment opportunistically based on user-defined preferences. Alarms and auto-containment of malicious rogue APs are configured via flexible remediation policies, ensuring optimal security and performance in even the most challenging wireless environments.

Application-aware traffic shaping

The Cisco Meraki Dubai packs an  integrated Layer 7 packet inspection, classification, and control engine, enabling you to set QoS policies based on traffic type. Prioritize your mission critical applications, while setting limits on recreational traffic, e.g., peer-to-peer and video streaming

Self-configuring, self-optimizing, self-healing

When plugged in, the Cisco Meraki MR20 Wireless automatically connects to the Meraki cloud, downloads its configuration, and joins the appropriate network. It self-optimizes, determining the ideal channel, transmit power, and client connection parameters. And it self-heals in the event of a switch or cable failure by meshing with nearby Meraki access points, providing continued gateway

Integrated analytics

Drill down into the details of your network usage with highly granular traffic analytics. Extend your visibility into the physical world with built-in location analytics that enables you to view visitor numbers, dwell time, repeat visit rates, and track foot traffic trends.

Meraki MR20 Specifications

Radios

• 2.4 GHz 802.11b/g/n/ac client access radio
• 5 GHz 802.11a/n/ac Wave 2 client access radio

Operating bands

• 2.412-2.484 GHz
• 5.150-5.250 GHz (UNII-1)
• 5.250-5.350 GHZ (UNII-2)
• 5.470-5.600, 5.660-5.725 GHz (UNII-2e)
• 5.725-5.825 GHz (UNII-3)

802.11ac and 802.11n Capabilities

• 2×2 multiple input, multiple output (MIMO) with two spatial streams
• Maximal ratio combining (MRC)
• Beamforming
• 20 and 40 MHz channels (802.11n), 20, 40, and 80 MHz channels (802.11ac)
• Up to 256-QAM on both 2.4 GHz and 5 GHz bands
• Packet aggregation

Power

• Power over Ethernet : 37-57 V (802.3af compatible)
• Alternative 12 V DC input
• Power consumption : 11 W max (802.3af)
• Power over Ethernet injector and DC adapter sold separately

Mounting

• All standard mounting hardware included
• Desktop, ceiling, and wall mount capable

Physical Security

• Two security screw options included
• Kensington lock hard point
• Concealed mount plate with anti-tamper cable bay

Environment

• Operating temperature : 32 °F to 104 °F (0 °C to 40 °C)
• Humidity : 5% to 95% non-condensing

Physical Dimensions

• 7.95” x 4.88” x 1.02” (202 mm x 124 mm x 25.8 mm), not including deskmount feet or mount plate
• Weight : 9.6 oz (272 g)

Antenna

• Integrated omni-directional antennae (5.6 dBi gain at 2.4 GHz, 5.3 dBi gain at 5 GHz)

Interfaces

• 1x 10/100/1000 BASE-T Ethernet (RJ45)
• 1x DC power connector (5.5 mm x 2.5 mm, center positive

Security

• Integrated Layer 7 firewall with mobile device policy management
• Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal
• Flexible guest access with device isolation
• VLAN tagging (802.1Q) and tunneling with IPSec VPN
• PCI compliance reporting
• WEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X
• EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM
• TKIP and AES encryption
• Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration

Quality of Service

• Advanced Power Save (U-APSD)
• WMM Access Categories with DSCP and 802.1p support
• Layer 7 application traffic identification and shaping

Mobility

• PMK, OKC, and 802.11r for fast Layer 2 roaming
• Distributed or centralized Layer 3 roaming

LED Indicators

• 2 Ethernet status for Ethernet port
• 1 power/booting/firmware upgrade status
