Description

Meraki MR36 Dubai

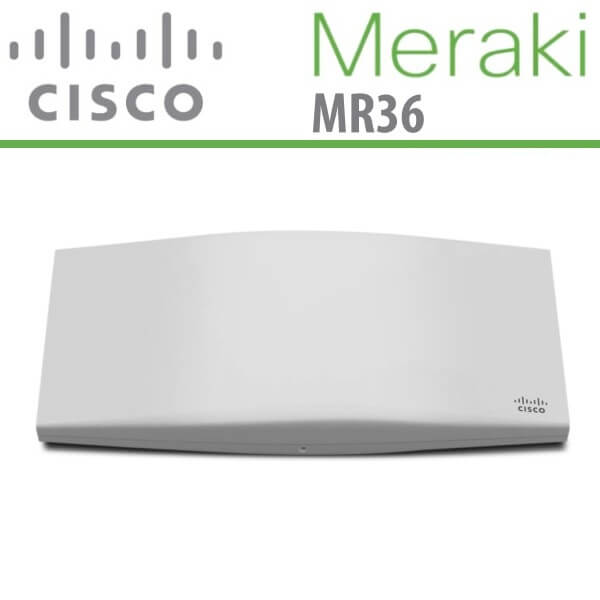

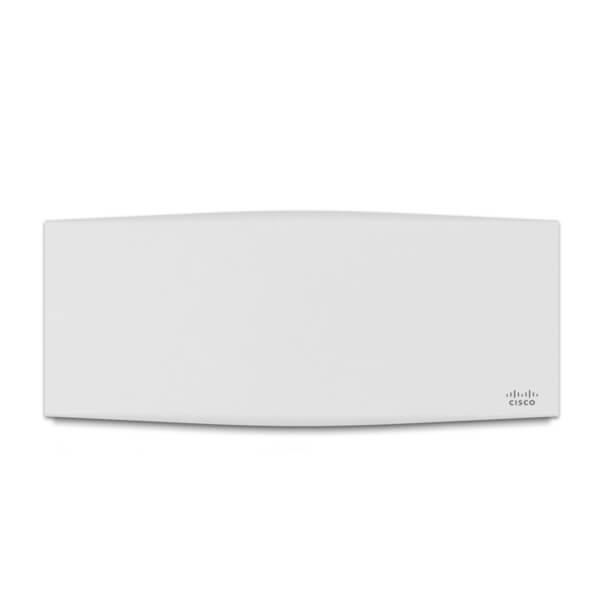

The Meraki MR36 Dubai is a cloud-managed access point that enhances wireless performance and efficiency. It is designed for modern deployments in various settings such as offices, schools, hospitals, shops, and hotels. The Meraki MR36 Dubai offers high data throughput, top-notch security, and easy management. Management of the Meraki MR36 Dubai is done through the Meraki cloud, using a user-friendly web-based interface. This allows for quick deployment without the need for extensive training or expensive certifications. The device can be self-configured and remotely managed, making it possible to set up in a remote location within minutes, even without on-site IT personnel. The Meraki cloud provides 24×7 monitoring, ensuring real-time alerts in case of network issues. Additionally, remote diagnostic tools enable immediate troubleshooting over the web, simplifying the management of distributed networks. The firmware of the Meraki MR36 Dubai is automatically updated via the cloud, eliminating
the need for manual software downloads. This guarantees both the availability of new features, bug fixes, and security enhancements.

Meraki MR36 Features

Dual–radio aggregate frame rate of up to 1.7 Gbps
Meraki Wi-Fi Dubai boasts of 5 GHz 2×2:2 radio and 2.4 GHz 2×2:2 radio offer a combined dual–radio aggregate frame rate of 1.7 Gbps*, with up to 1,201 Mbps in the 5 GHz band and 573 Mbps in the 2.4 GHz band. Technologies like transmit beamforming and enhanced receive sensitivity allow the MR36 to support a higher client density than typical enterprise-class access points, resulting in better performance for more clients, from each Access Point.

Multi User Multiple Input Multiple Output (MU-MIMO)
With support for features of 802.11ax, the Wi-Fi Dubai provides MU-MIMO and OFDMA for more efficient transmission to multiple clients. Especially suited to environments with numerous mobile devices, MU-MIMO enables multiple clients to receive data simultaneously. This increases the total network performance and improves the end user experience.

Dedicated third radio delivers 24×7 wireless security and RF analytics
The Cisco Meraki MR36 Wireless has a dedicated dual-band scanning and security radio that continually assesses the environment, characterizing RF interference and containing wireless threats like rogue access points. There’s no need to choose between wireless security, advanced RF analysis, and serving client data – a dedicated third radio means that all functions occur in real-time, without any impact to client traffic or Access Point throughput.

Bluetooth Low Energy Beacon and scanning radio
An integrated fourth Bluetooth radio provides seamless deployment of BLE Beacon functionality and effortless visibility of Bluetooth devices. The MR36 enables the next generation of location-aware applications while future proofing deployments, ensuring it’s ready for any new customer engagement strategies.

Automatic cloud-based RF optimization
The MR36’s sophisticated and automated RF optimization means that there is no need for the dedicated hardware and RF expertise typically required to tune a wireless network. The RF data collected by the dedicated third radio is continuously fed back to the Meraki cloud. This data is then used to automatically tune the channel selection, transmit power, and client connection settings for optimal performance under even the most challenging RF conditions.

Integrated enterprise security and guest access
The Cisco Meraki MR36 Access Point Dubai features integrated, easy-to-use security technologies to provide secure connectivity for employees and guests alike. Advanced security features such as AES hardware-based encryption and Enterprise authentication with 802.1X and Active Directory integration provide wired-like security while still being easy to configure. One-click guest isolation provides secure, Internet-only access for visitors. PCI compliance reports check network settings against PCI requirements to simplify secure retail deployments.

Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration
Meraki Systems Manager natively integrates with the Meraki MR36 Wi-Fi Dubai to offer automatic, context-aware security. Systems Manager’s self-service enrollment helps to rapidly deploy MDM without installing additional equipment, and then dynamically tie firewall and traffic shaping policies to client posture

Application-aware traffic shaping
Cisco Meraki MR36 Dubai includes an integrated layer 7 packet inspection, classification, and control engine, enabling the configuration of QoS policies based on traffic type, helping to prioritize mission-critical applications while setting limits on recreational traffic like peer-to-peer and video streaming. Policies can be implemented per network, per SSID, per user group, or per individual user for maximum flexibility and control

Voice and video optimizations
Industry standard QoS features are built-in and easy to configure. Wireless MultiMedia (WMM) access categories, 802.1p, and DSCP standards support all ensure important applications get prioritized correctly, not only on the MR36, but on other devices in the network. Unscheduled Automatic Power Save Delivery (U-Access PointSD) and new Target Wait Time features in 802.11ax clients ensure minimal battery drain on wireless VoIP phones.

Self-configuring, self-maintaining, always up-to-date
When plugged in, the Cisco Meraki MR36 Wireless automatically connects to the Meraki cloud, downloads its configuration, and joins the appropriate network. If new firmware is required, this is retrieved by the Access Point and updated automatically. This ensures the network is kept up-to-date with bug fixes, security updates, and new features.

Advanced analytics
Drilling down into the details of network usage provides highly granular traffic analytics. Visibility into the physical world can be enhanced with journey tracking through location analytics. Visitor numbers, dwell time, repeat visit rates, and track trends can all be easily monitored in the dashboard and deeper analysis is enabled with raw data available via simple Access PointIs.

Technical Specifications

Radios	2.4 GHz 802.11b/g/n/ax client access radio 5 GHz 802.11a/n/ac/ax client access radio 2.4 GHz & 5 GHz dual-band WIDS/WIPS, spectrum analysis, & location analytics radio 2.4 GHz Bluetooth Low Energy (BLE) radio with Beacon and BLE scanning support Concurrent operation of all four radios Supported frequency bands (country-specific restrictions apply) Supported frequency bands (country-specific restrictions apply): 2.412-2.484 GHz 5.150-5.250 GHz (UNII-1) 5.250-5.350 GHZ (UNII-2) 5.470-5.600, 5.660-5.725 GHz (UNII-2e) 5.725 -5.825 GHz (UNII-3)
Antenna	Internal Antenna (5.4 dBi gain at 2.4 GHz, 6 dBi gain at 5 GHz)
802.11ax, 802.11ac Wave 2 and 802.11n Capabilities	DL-OFDMA, UL-OFDMA, TWT support, BSS Coloring 2 x 2 multiple input, multiple output (MIMO) with two spatial streams SU-MIMO, UL MU-MIMO** and DL MU-MIMO support Maximal ratio combining (MRC) & beamforming 20 and 40 MHz channels (802.11n); 20, 40, and 80 MHz channels (802.11ac Wave 2); 20, 40 and 80 MHz channels (802.11ax) Up to 1024-QAM on both 2.4 GHz & 5 GHz bands Packet aggregation
Power	Power over Ethernet : 37 – 57 V (802.3af compatible) Alternative : 12 V DC input Power consumption : 15W max (802.3af). Note: actual power consumption may vary depending on the Access Point usage. Power over Ethernet injector and DC adapter sold separately Note: Actual power consumption may vary depending on the Access Point usage.
Interfaces	1x 10/100/1000 BASE-T Ethernet (RJ45) 1x DC power connector (5.5 mm x 2.5 mm, center positive)
Mounting	All standard mounting hardware included Desktop, ceiling, and wall mount capable Ceiling tile rail (9/16, 15/16 or 1 1⁄2” flush or recessed rails), assorted cable junction boxes Bubble level on mounting cradle for accurate horizontal wall mounting
Physical Security	Two security screw options (included) (10 mm long and 2.5 mm diameter and 4.7 mm head) Kensington lock hard point Concealed mount plate with anti-tamper cable bay
Environment	Operating temperature : 32 °F to 104 °F (0 °C to 40 °C) Humidity : 5 to 95% non-condensing Operating altitude : Up to 40,000 feet (12,192 meters)
Reliability	Mean Time Between Failure (MTBF): 257,215hrs at +25°C operating temperature
Physical Dimensions	9.84” x 4.72” x 1.42” (25 cm x 12 cm x 3.6 cm), not including desk mount feet or mount plate Weight : 17.35 oz (492 g)
Security	Integrated Layer 7 firewall with mobile device policy management Real-time WIDS/WIPS with alerting and automatic rogue Access Point containment with Air Marshal Flexible guest access with device isolation VLAN tagging (802.1q) and tunneling with IPsec VPN PCI compliance reporting WEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X, WPA3 – Personal**, WPA3 – Enterprise, WPA3 – Enhanced Open (OWE) EAccess Point-TLS, EAccess Point-TTLS, EAccess Point-MSCHAccess Pointv2, EAccess Point-SIM TKIP and AES encryption Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration Cisco ISE integration for Guest access and BYOD Posturing
Quality of Service	Advanced Power Save (U-Access PointSD) WMM Access Categories with DSCP and 802.1p support Layer 7 application traffic identification and shaping
Mobility	PMK, OKC, & 802.11r for fast Layer 2 roaming Distributed or centralized layer 3 roaming
Analytics	Embedded location analytics reporting and device tracking Global L7 traffic analytics reporting per network, per device, & per application
LED Indicators	1 power/booting/firmware upgrade status
Regulatory	RoHS For additional country-specific regulatory information, please contact Meraki sales
