Description

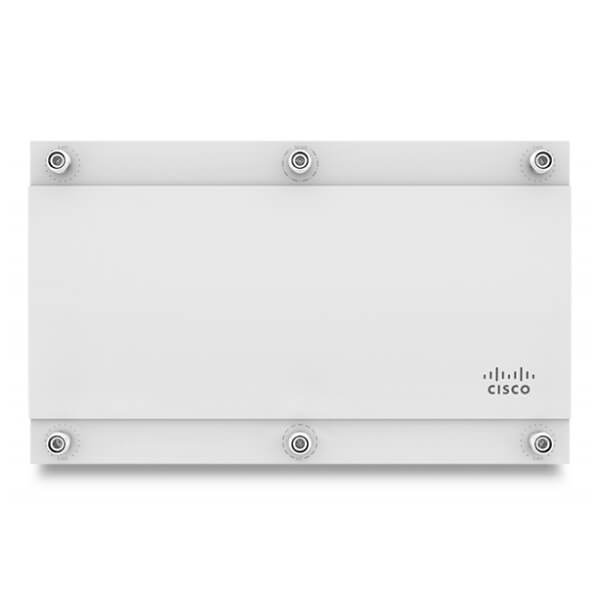

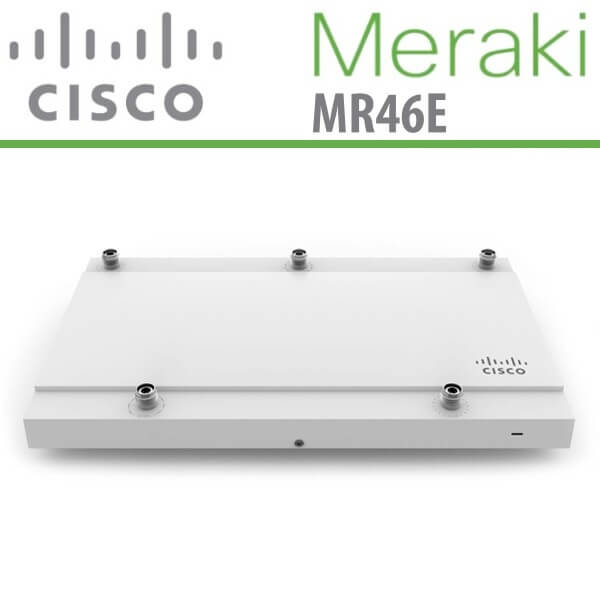

Meraki MR46E Dubai
The Meraki MR46E Dubai is an advanced wireless access point that redefines wireless performance and efficiency. It is specifically designed for modern deployments in various settings such as offices, schools, hospitals, shops, and hotels. The Meraki MR46E Dubai offers impressive throughput, enterprise-grade security, and easy management. The Meraki MR46E Dubai in Kenya boasts a maximum aggregate frame rate of 3.5 Gbps*, thanks to its concurrent 2.4 GHz and 5 GHz radios.
Additionally, it features a dedicated third radio that enables real-time WIDS/WIPS with automated RF optimization. Moreover, the Meraki MR46E Dubai includes a fourth integrated radio for Bluetooth scanning and beaconing. With its cloud management capabilities, powerful hardware, multiple radios, and advanced software features, the Meraki Wi-Fi Access Point in Dubai is an exceptional choice for demanding scenarios. It can handle high-density deployments and bandwidth-intensive applications such as voice and high-definition video with ease.
Meraki MR46E Specifications
| Radios |
- 2.4 GHz 802.11b/g/n/ax client access radio
- 5 GHz 802.11a/n/ac/ax client access radio
- 2.4 GHz and 5 GHz dual-band WIDS/WIPS, spectrum analysis, and location analytics radio
- 2.4 GHz Bluetooth Low Energy (BLE) radio with beacon and scanning support
- Concurrent operation of all four radios
- Supported frequency bands (country-specific restrictions apply)
- Supported frequency bands (country-specific restrictions apply):
- 2.412-2.484 GHz
- 5.150-5.250 GHz (UNII-1)
- 5.250-5.350 GHZ (UNII-2)
- 5.470-5.600, 5.660-5.725 GHz (UNII-2e)
- 5.725 -5.825 GHz (UNII-3)
|
| Antenna |
- Internal antenna (5.4 dBi gain at 2.4 GHz, 6 dBi gain at 5 GHz)
|
| 802.11ax, 802.11ac Wave 2 and 802.11n Capabilities |
- DL-OFDMA**, UL-OFDMA**, TWT support**, BSS coloring**
- 4 x 4 multiple input, multiple output (MIMO) with four spatial streams
- SU-MIMO, UL MU-MIMO**, and DL MU-MIMO support
- Maximal ratio combining (MRC) & beamforming
- 20 and 40 MHz channels (802.11n); 20, 40, and 80 MHz channels (802.11ac Wave 2); 20, 40 and 80 MHz channels (802.11ax)
- Up to 1024-QAM on both 2.4 GHz and 5 GHz bands
- Packet aggregation
** Feature is automatically enabled via firmware update to MR 27+ |
| Power |
- Power over Ethernet : 42.5 – 57 V (802.3at compliant)
- Alternative : 12 V DC input
- Power consumption : 30W max (802.3at required)
- Power over Ethernet injector and DC adapter sold separately
Note: Actual power consumption may vary depending on the Access Point usage. |
| Interfaces |
- 1x 100/1,000/2.5G BASE-T Ethernet (RJ45)
- 1x DC power connector (5.5 mm x 2.5 mm, center positive)
|
| Mounting |
- All standard mounting hardware included
- Desktop, ceiling, and wall mount capable
- Ceiling tile rail (9/16, 15/16 or 1 1⁄2” flush or recessed rails), assorted cable junction boxes
- Bubble level on mounting cradle for accurate horizontal wall mounting
|
| Physical Security |
- Two security screw options (included) (13.5 mm long, 2.5 mm diameter, 5 mm head)
- Kensington lock hard point
- Concealed mount plate with anti-tamper cable bay
|
| Environment |
- Operating altitude : Up to 40,000 feet (12,192 meters)
- Operating temperature : 32 °F to 104 °F (0 °C to 40 °C)
- Humidity : 5% to 95% non-condensing
|
| Reliability |
- Mean time between failure (MTBF): 1,406,652 hrs at +25°C operating temperature
|
| Physical Dimensions |
- 12.05” x 5.06” x 1.74” (30.6 cm x 12.84 cm x 4.43 cm), not including desk mount feet or mount plate
- Weight : 28.22 oz (800 g)
|
| Security |
- Integrated layer 7 firewall with mobile device policy management
- Real-time WIDS/WIPS with alerting and automatic rogue Access Point containment with Air Marshal
- Flexible guest access with device isolation
- VLAN tagging (802.1q) and tunneling with IPsec VPN
- PCI compliance reporting
- WEP*, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X, WPA3 – Personal**, WPA3 – Enterprise**, WPA3 – Enhanced Open (OWE)***
- EAccess Point-TLS, EAccess Point-TTLS, EAccess Point-MSCHAccess Pointv2, EAccess Point-SIM
- TKIP and AES encryption
- Enterprise mobility management (EMM) and Mobile device management (MDM) integration
- Cisco ISE integration for guest access and BYOD posturing
|
| Quality of Service |
- Advanced power save (U-Access PointSD)
- WMM access categories with DSCP and 802.1p support
- Layer 7 application traffic identification and shaping
|
| Mobility |
- PMK, OKC, and 802.11r for fast layer 2 roaming
- Distributed or centralized layer 3 roaming
|
| Analytics |
- Embedded location analytics reporting and device tracking
- Global layer 7 traffic analytics reporting per network, per device, and per application
|
| LED Indicators |
- 1 power/booting/firmware upgrade status
|
