Description

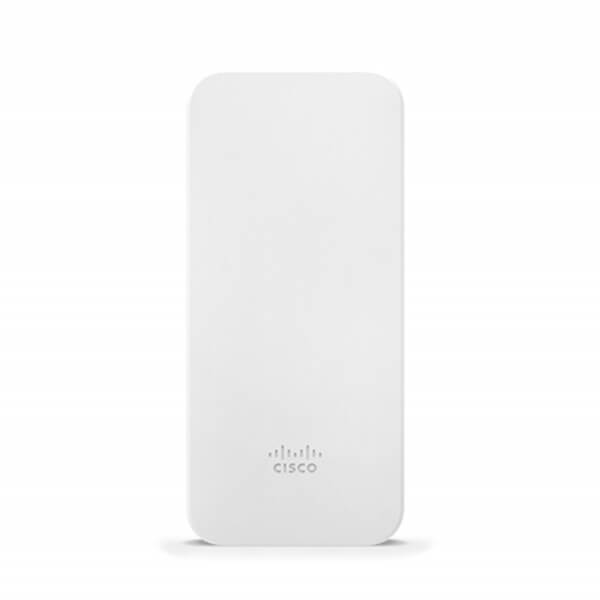

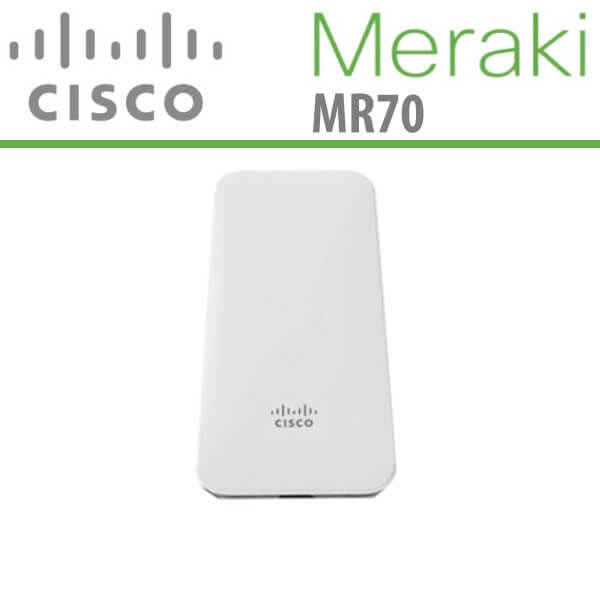

Meraki MR70 Dubai
The Meraki MR70 Dubai is an outdoor access point that operates on dual-band 802.11ac technology. It is a cloud-managed device with MU-MIMO support, making it ideal for basic deployments that require quick setup. This access point offers enterprise-grade security and easy management. The Meraki wifi AP Dubai is specifically designed for various outdoor settings such as municipal athletic fields, garages, public gardens, and space-constrained areas. It can even be used in emergency situations to rapidly provide wireless connectivity in disaster-struck areas. With its concurrent 2.4 GHz and 5 GHz radios, the Meraki MR70 Dubai offers a maximum aggregate frame rate of 1.3 Gb/s. Please note that the Power-over-Ethernet injector is sold separately. The Cisco wifi Dubai access point is managed through the Meraki cloud, which features an intuitive browser-based interface. This allows for quick deployment without the need for specialized training or certifications. Additionally, the Meraki MR70 Dubai is continuously monitored by the Meraki cloud, enabling real-time alerts for any network issues. Troubleshooting can be done remotely using the diagnostic tools available on the web interface. Furthermore, the access point’s firmware is regularly updated through the cloud, ensuring that it remains up to date with the latest features,bug fixes, and security patches.
Meraki MR70 Specifications
Wireless
| Wireless Frequency Bands |
2.4 GHz, 5 GHz Dual-Band |
| MU-MIMO Support |
2 x 2 |
| WLAN Mode |
Wi-Fi 5 (802.11ac) |
| Sensitivity |
-99 to -62 dBm |
| Antenna Gain |
4.5 to 4.7 dBi |
| Transmit Power |
11 to 19 dBm |
| Supported Protocols |
WMM |
| Antenna Placement |
Internal |
| Bluetooth |
None |
| Throughput |
1300 Mb/s Total
2.4 GHz: 400 Mb/s
5 GHz: 866 Mb/s |
Interface
| Ports |
1 x 10/100 Mb/s Ethernet (RJ45) PoE |
| USB Sharing Support |
No |
Security
| Guest Network Support |
Yes |
| Wireless Security |
AES, TKIP, WEP, WPA, WPA2-PSK, WPA2-Enterprise |
Management
| Operation Modes |
Access Point, Mesh |
Hardware
| Supported IEEE Standards |
802.11a, 802.11ac, 802.11b, 802.11g, 802.11n, 802.11r, 802.1p, 802.1q, 802.1x, 802.3af, 802.3at |
Electrical
| DC Input Power |
12 VDC |
| Power Consumption |
11 W |
Environmental
| Operating Temperature |
-4 to 131°F / -20 to 55°C |
| Operating Humidity |
5 to 95% |
General
| IP Rating |
IP67 |
| Certifications |
EN 60950-1, RoHS, as per Manufacturer |
| Mount Options |
Pole, Wall |
| Dimensions |
9.6 x 4.5 x 1.2″ / 245 x 115 x 30 mm |
| Weight |
15.87 oz / 0.45 kg |
