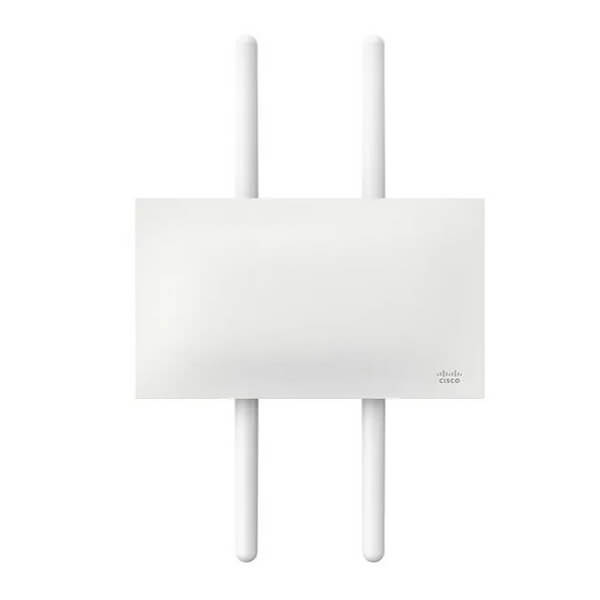

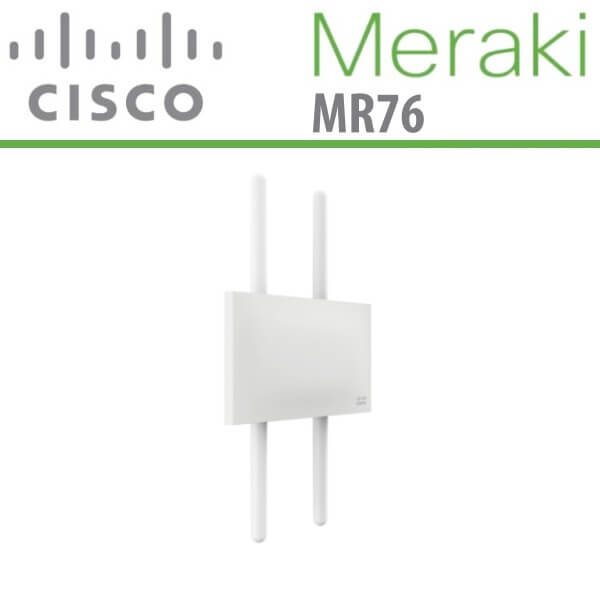

Meraki MR76 Dubai
The Meraki MR76 Dubai is an advanced 802.11ax access point that is managed through the cloud. It sets a new standard for wireless performance and efficiency. This access point is specifically designed for modern deployments in various settings such as offices, schools, hospitals, shops, and hotels. The Meraki MR76 Dubai offers impressive throughput, enterprise-grade security, and easy management. The Meraki MR76 Dubai is capable of providing a maximum aggregate frame rate of 1.7 Gbps with its 2.4 GHz and 5 GHz radios working simultaneously. Additionally, it has a dedicated third radio that enables real-time WIDS/WIPS with automated RF optimization. Moreover, it features a fourth integrated radio that facilitates Bluetooth scanning and beaconing. Thanks to its cloud management, high-performance hardware, multiple radios, and advanced software features, the Meraki MR76 Dubai is an exceptional platform for demanding use cases. It excels in high-density deployments and can efficiently handle bandwidth or performance-intensive applications like voice and high-definition video.
MR76 – Technical Specifications
Radios
- 2.4 GHz 802.11b/g/n/ax client access radio
- 5 GHz 802.11a/n/ac/ax client access radio
- 2.4 GHz and 5 GHz dual-band WIDS/WIPS, spectrum analysis, and location analytics radio
- 2.4 GHz Bluetooth Low Energy (BLE) radio with Beacon and BLE scanning support
- Max data rate 1.7 Gbit/s
Operating Bands (country-specific restrictions apply)
- 2.412-2.484 GHz
- 5.150-5.250 GHz (UNII-1)
- 5.250-5.350 GHZ (UNII-2)
- 5.470-5.600 GHz, 5.650-5.725 GHz (UNII-2e)
- 5.725-5.825 GHz (UNII-3)
802.11ax, 802.11ac Wave 2, and 802.11n Capabilities
- UL/DL OFDMA, TWT support, BSS coloring
- 2×2 multiple input, multiple output (MIMO) with 2 spatial streams
- UL/DL SU-MIMO and MU-MIMO Support
- Maximal ratio combining (MRC)
- Beamforming
- 20, 40, and 80 MHz (802.11ac), 20 and 40 MHz channels (802.11n)
- 160 MHz (80+80); 20, 40 and 80MHz channels (802.11ax), 160 MHz (80+80)
- Up to 1024 QAM on both 2.4 GHz and 5 GHz bands
- Packet aggregation
- Cyclic shift diversity (CSD) support
Power
- Power over Ethernet : 37 – 57 V (802.3af compatible)
- Power consumption : 15 W max
- Power over Ethernet injector sold separately
Mounting
- Mounts to walls and horizontal, vertical, and angled poles
- Mounting hardware included
Physical Security
- Security screw included
- Anti-tamper cable bay
- Concealed mount plate
Environment
- Operating temperature : -40°F to 131°F (-40°C to 55°C)
- IP67 environmental rating (sealed against water and dust)
Physical Dimensions
- 11.81” x 6.02” x 2.16” (30.0 cm X 15.3 cm X 5.5 cm), not including cable gland, mounts and antennas
- Weight : 47.27 oz (1.34 kg)
Interfaces
- One 100/1000 Mbps auto-crossover Ethernet port
- Four external N-type connectors (note: antennas sold separately)
- 1 power/booting/firmware upgrade status
Security
- Integrated Layer 7 firewall with mobile device policy management
- Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal
- Flexible guest access with device isolation
- PCI compliance reporting
- WEP**, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X, WPA3 – Personal**, WPA3 – Enterprise**, WPA3 – Enhanced Open (OWE)**
- EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM
- TKIP and AES encryption
- Enterprise Mobility Management (EMM) and Mobile Device Management (MDM) integration
- Cisco ISE integration for Guest access and BYOD Posturing
Quality of Service
- Advanced Power Save (U-APSD)
- WMM Access Categories with DSCP and 802.1p support
- Layer 7 application traffic identification and shaping
Mobility
- PMK, OKC, & 802.11r for fast Layer 2 roaming
- 802.11r and 802.11k
- Distributed or centralized Layer 3 roaming
LED Indicators
- 4 signal strength
- 1 Ethernet connectivity
- 1 power/booting/firmware upgrade status
Regulatory
- RoHS
Warranty
- 1 year hardware warranty with advanced replacement included
