Description

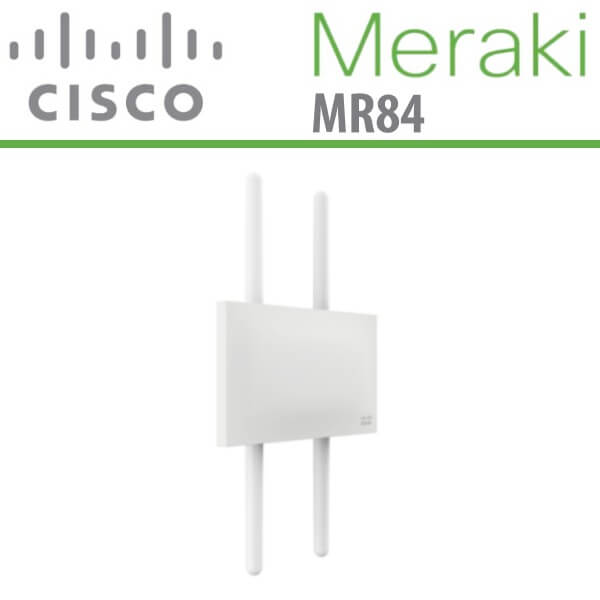

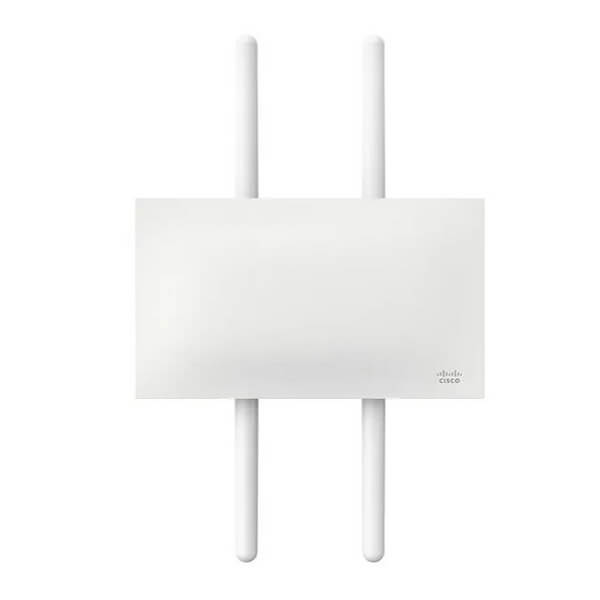

Meraki MR84 Dubai

The Meraki MR84 Dubai is an access point that utilizes cloud management and has four radios. It supports 4×4 MU-MIMO 802.11ac Wave 2 technology. This access point is specifically designed for high-performance deployments in environments with challenging RF conditions and high-density requirements. The Meraki MR84 Dubai offers enterprise-grade security, excellent performance, and a user-friendly cloud-based management system. Its unique industrial design allows for flexible installation in harsh outdoor settings or indoor spaces. With concurrent 2.4 GHz and 5 GHz radios, the Meraki MR84 Dubai can achieve a maximum aggregate frame rate of 2.5 Gbps. Additionally, it features a dedicated third radio for real-time WIDS/WIPS with automated RF optimization, and a fourth integrated radio that supports Bluetooth Low Energy (BLE) scanning and Beaconing.

Technical Specifications

Radios

• 2.4 GHz 802.11b/g/n/ac client access radio
• 5 GHz 802.11a/n/ac Wave 2 client access radio
• 2.4 GHz & 5 GHz WIDS/WIPS, spectrum analysis, and location analytics radio
• 2.4 GHz Bluetooth Low Energy (BLE) radio with Beacon and BLE scanning support
• Concurrent operations of all four radios

Supported frequency bands (country-specific restrictions apply):

• 2.412-2.484 GHz
• 5.150-5.250 GHz (UNII-1)
• 5.250-5.350 GHz (UNII-2)
• 5.470-5.600, 5.660-5.725 GHz (UNII-2e)
• 5.725-5.825 GHz (UNII-3)

802.11ac Wave 2 and 802.11n Capabilities

• 2 x 2 multiple input, multiple output (MIMO) with two spatial streams
• SU-MIMO and MU-MIMO support
• Maximal ratio combining (MRC) and beamforming
• 20 and 40 MHz channels (802.11n); 20, 40, 80 channels (802.11ac)
• Up to 256-QAM on both 2.4 GHz and 5 GHz bands
• Packet aggregation

Power

• Power over Ethernet : 37 – 57 V (802.3at required with functionality-restricted 802.3af mode supported)
• Power consumption : 21W max (802.3at)
• Power over Ethernet injector sold separately

Mounting

• Mounts to walls and vertical poles
• Mounting hardware included

Physical Security

• Security screw included
• Concealed mount plate

Environment

• Operating temperature : -4 °F to 131 °F (-20 °C to 55 °C)
• IP67 environmental rating
• Operating humidity : 5% to 95%

Physical Dimensions

• 28.6 cm x 17.6 cm x 18.5 cm including mounting bracket
• Weight : 3.8 lbs. (1.7 kg)

Interfaces

• 1x 100/1000/2.5G BASE-T Ethernet & 1x 10/100/1000 BASE-T Ethernet (RJ45)
• Four external N-type female antenna connectors

Security

• Integrated Layer 7 firewall with mobile device policy management
• Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal
• Flexible guest access with device isolation
• VLAN tagging (802.1Q) and tunneling with IPSec VPN
• PCI compliance reporting
• WEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X
• EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM
• TKIP and AES encryption
• Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration)
• Cisco ISE integration for Guest access and BYOD Posturing

Quality of Service

• Advanced Power Save (U-APSD)
• WMM Access Categories with DSCP and 802.1p support
• Layer 7 application traffic identification and shaping

Mobility

• PMK, OKC, and 802.11r for fast Layer 2 roaming
• Distributed or centralised Layer 3 roaming

Analytics

• Embedded location analytics reporting and device tracking
• Global L7 traffic analytics reporting per network, per device, & per application

Warranty

• 1 year hardware warranty with advanced replacement included

Compliance

• EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC

Ordering Information

• MR84-HW Meraki MR84 Cloud Managed 802.11ac AP
• MA-INJ-5-XX: Meraki 802.3at Power over Ethernet Injector (XX = US/EU/UK/AU)
• MA-ANT-20 Meraki Dual-Band Omni Antennas
• MA-ANT-27 Meraki Dual-Band Sector Antenna
• MA-ANT-25 Meraki Dual-Band Patch Antenna

Note: Meraki Enterprise license required. For AIR-ANT2513P4M-N= antenna, contact
Cisco directly.
