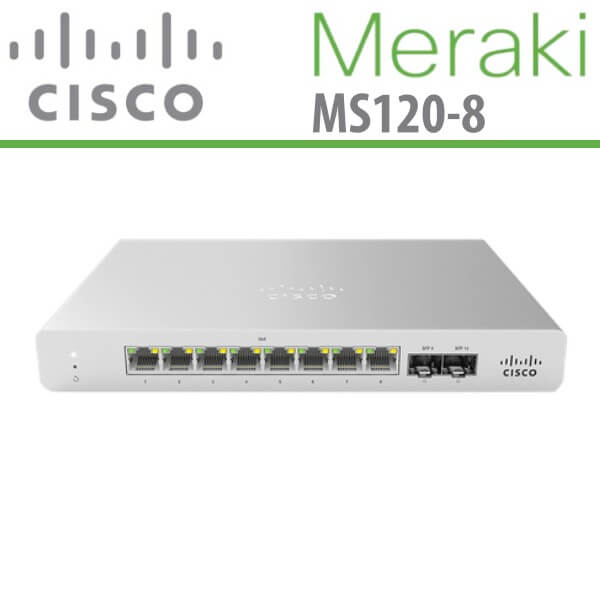

Meraki MS120-8 Dubai

Meraki MS120-8 Dubai

The meraki-ms120-8-dubai switches are managed through an elegant, intuitive cloud interface, rather than through command line. To set up a Meraki switch, just plug it in; there’s no need for complicated configuration files or even direct physical access to the switch.

Category:

Description

Meraki MS120-8 Dubai

The Meraki  Dubai compact switches offer Layer 2 access switching in a small, fanless form factor. These switches come with 1GbE SFP ports for fiber uplink, integrated mounting brackets, and a Kensington security slot, making them perfect for fast and secure deployment in branch locations. The Meraki MS120-8 is designed to be easily managed without sacrificing any of the power and flexibility typically found in enterprise-class switches. Unlike traditional command line management, Meraki switches are managed through a user-friendly cloud interface. Setting up a Meraki switch is as simple as plugging it in – there’s no need for complex configuration files or direct physical access to the switch. With Meraki’s centralized management, administrators have in-depth visibility into the network and its usage. For instance, you can quickly identify switches that are nearing capacity across multiple sites or locate all configuration changes made by a team member using instant search.

Interfaces
  • 8 x 10/100/1000BASE-T Ethernet RJ45 with auto negotiation and crossover detection (auto-MDIX crossover)
  • 2 x 1GbE SFP uplink
Switching capacity
  • 20 Gbps
Forwarding rate
  • 14.88mpps with standard packet size
Idle / Full Load Power
  • 5 / 9 W
Power Supply Configuration
  • External Power Supply
Power Supply/Model Number
  • DC 12V/2.5A,30W
  • MA-PWR-30WAC
What’s included
  • 1 x Mounting screw kit and anchor
  • 1 x External Power Supply
Dimensions
  • 1.1 x 8.74 x 5.91” (2.8 x 22.2 x 15cm)
Weight
  • 2.36 lb (1.07 kg)
Management
  • Managed via the Web with the Meraki cloud management platform
  • Integrated with Meraki Wireless and complete portfolio of IT products and solutions
  • Zero-touch remote provisioning (no staging needed)
  • Detailed historical per-port and per-client usage statistics
  • DHCP, client, and hostname fingerprinting
  • SNMP and SYSLOG support for integration with other network management solutions
  • Automatic firmware upgrades with scheduling control
Layer 3
  • DHCP Relay
Remote Diagnostics
  • Email, SMS and Mobile push notification alerts
  • Cable testing and link failure detection with alerting
  • Live remote packet capture
  • Dynamic and interactive network discovery and topology
  • Combined event and configuration change logs with instant search
Stacking
  • Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
Power
  • Power input : 100 – 240 VAC, 47-63 Hz
  • Power consumption : 5 – 161W
Mounting
  • Wall or utility board mountable with included mount hardware
  • Desktop-mountable with included feet
  • Kensington lock slot included
Ethernet Switching Capabilities
  • 802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping)
  • 802.1Q VLAN and trunking support for up to 4,094 VLANs
  • 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP)
  • Broadcast storm control
  • 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
  • 802.3ad Link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches
  • Port mirroring
  • IGMP snooping for multicast filtering
  • MAC forwarding entries : 16K
Environment
  • Operating temperature : 0°C to 45°C
  • Humidity : 5 to 95% non-condensing
  • Fanless operation
Regulatory
  • CSA-US (US, Canada)
  • FCC (USA)
  • IC (Canada)
  • CE (Europe)
  • RCM (Australia/New Zealand)
  • RoHS
Security
  • Integrated two-factor authentication for Dashboard management
  • Role-based access control (RBAC) with granular device and configuration control
  • Corporate wide password policy enforcement
  • IEEE 802.1X RADIUS and MAB, hybrid authentication and RADIUS server testing
  • Multi-Domain/Multi-Host/Multi Authentication
  • Port security : Sticky MAC, MAC whitelisting
  • DHCP snooping, detection and blocking, Dynamic ARP Inspection
  • STP Enhancements : BPDU guard, Root guard, Loop guard
  • IPv4 and IPv6 ACLs
