Description

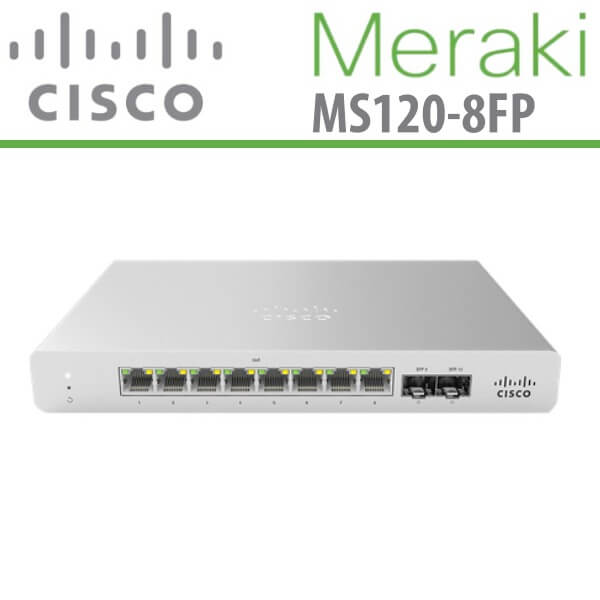

Meraki MS120-8FP Dubai
The Meraki MS120-8FP Dubai compact switches offer Layer 2 access switching in a small, noiseless design. These switches come with 1GbE SFP ports for fiber uplink, integrated mounting brackets, and a Kensington security slot, making them perfect for quick and secure deployment in branch locations. The Meraki MS120-8FP Dubai is specifically designed for easy management without sacrificing the power and versatility commonly found in enterprise-class switches. Instead of using a command line, the Meraki MS120-8FP Dubai can be managed through a user-friendly cloud interface. Setting up the switch is as simple as plugging it in; there’s no need for complex configuration files or direct physical access to the switch. With Meraki’s centralized management, administrators gain comprehensive visibility into the network and its usage. For instance, you can easily identify switches that are nearing capacity across multiple sites or track all configuration changes made by a team member using the instant search feature.
Meraki MS120-8FP Specifications
Interfaces
| Ports | 8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+ 2 x 10/100/1000 Mb/s Gigabit SFP |
Protocols
| Layer Services Supported | Layer 2 Support, Layer 3 Support |
| Supported Protocols | DHCP Server IPv4 IPv6 RADIUS |
| Jumbo Frames Support | 9600 Bytes |
Security
| Security Features | DHCP Snooping Kensington Lock Support RADIUS Authentication |
Standards
| Supported IEEE Standards | 802.1x, 802.3af, 802.3at |
Performance
| Forwarding Rate | 14.88 Mpps |
| Switching Bandwidth | 20 Gb/s |
Electrical
| Power Draw | 162.00 W (Max) |
| DC Input Power | 48 VDC |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| PoE per Port | 30 W |
Environmental
| Operating Temperature | 32 to 113°F / 0 to 45°C |
| Operating Humidity | 5 to 95% |
General
| Mean Time Between Failures (MTBF) | 347,479 Hours |
| Dimensions | 8.97 x 8.58 x 1.75″ / 22.78 x 21.79 x 4.45 cm |
| Weight | 2.36 oz / 67 g |
