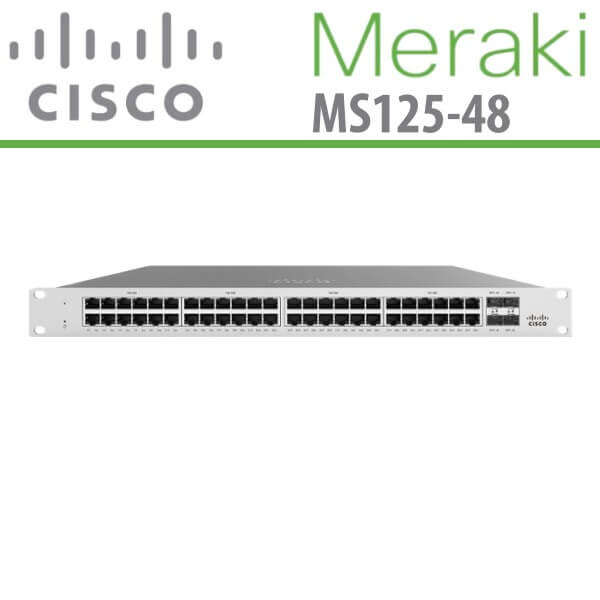

Meraki MS125-48 Dubai

Meraki MS125-48 Dubai

The Meraki MS125-48 Dubai is managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there’s no need for complicated configuration files or even direct physical access to the switch.

Category:

Description

Meraki MS125-48 Dubai

The Meraki MS125-48 Dubai offers Layer 2 access switching, making it an excellent choice for branch and campus deployments. With a range of power options, the MS125 series is designed to meet the diverse needs of large enterprise networks. Cisco Meraki switches are purpose-built for cloud management, while still delivering the power and flexibility typically found in enterprise-class switches. Managing the Meraki MS125-48 Dubai is a breeze thanks to its elegant and intuitive cloud interface. There’s no need for complex configuration files or direct physical access to the switch; simply plug it in to bring it online. With Meraki’s centralized management, administrators have deep visibility into the network and its usage. Easily identify switches nearing capacity across multiple sites and instantly search for configuration changes made by specific individuals.

Technical Specifications

General
Device Type Switch – 48 ports – managed
Enclosure Type Desktop, wall-mountable 1U
Subtype 10 Gigabit Ethernet
Ports 48 x 10/100/1000 + 4 x 10 Gigabit SFP+
Performance Switching capacity: 176 Gbps ¦ Forwarding rate: 130.95 Mpps
Capacity VLANs supported: 4094
MAC Address Table Size 16000 entries
Jumbo Frame Support 9578 bytes
Remote Management Protocol SNMP
Authentication Method RADIUS
Features
  • Flow control
  • Auto-negotiation
  • VLAN support
  • Auto-uplink (auto MDI/MDI-X)
  • IGMP snooping
  • Syslog support
  • Port mirroring
  • E-mail alert
  • Broadcast Storm Control
  • Firmware upgradable
  • Spanning Tree Protocol (STP) support
  • Rapid Spanning Tree Protocol (RSTP) support
  • DHCP snooping
  • Access Control List (ACL) support
  • Quality of Service (QoS)
  • SMS alert
  • STP Root Guard
  • Uni-Directional Link Detection (UDLD)
  • Fanless
  • Link Aggregation Control Protocol (LACP)
  • DHCP client
  • Security lock slot (cable lock sold separately)
  • Crossover detection
  • Single Sign-On (SSO) support
  • Role-Based Access Control (RBAC)
  • Cisco Discovery Protocol
  • STP BPDU Guard
  • Zero-touch provisioning (ZTP)
  • DSCP to CoS Mutation
