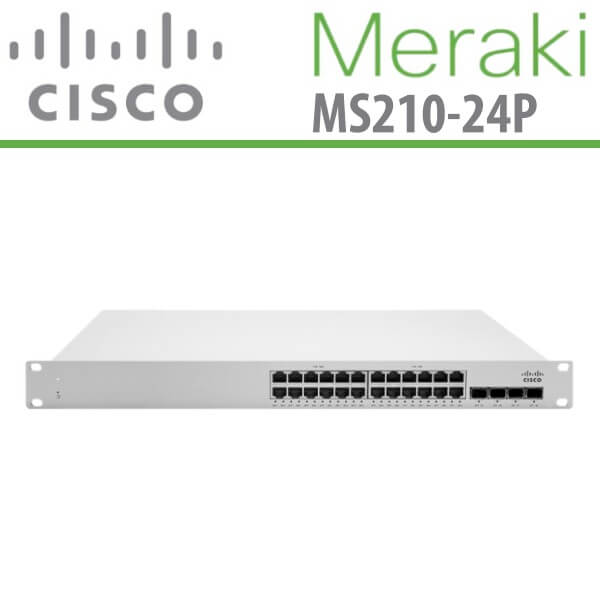

Meraki MS210-24P Dubai
The Meraki MS210-24P Dubai is designed to offer Layer 2 access switching in small campus and branch locations. This model comes with 4 x 1G SFP uplinks and can be stacked with the MS225 to access its 10G uplink. Additionally, it supports an optional rack-mountable PSU (Cisco RPS-2300) to meet power redundancy requirements. With 5 different models available, the MS210 line is equipped to provide up to 740W of PoE+ power across various port densities. It also includes SFP capable uplinks, making it well-prepared for future wireless infrastructure deployments in different environments.
Technical Specs:
Miscellaneous
| Included Accessories |
Feet set |
| Rack Mounting Kit |
Included |
| MTBF |
391,648 hours |
| Compliant Standards |
CSA, IC, FCC, RoHS, RCM |
Dimensions & Weight
| Width |
19.1 in |
| Depth |
9.8 in |
| Height |
1.7 in |
| Weight |
8.18 lbs |
| Min Operating Temperature |
32 °F |
| Max Operating Temperature |
104 °F |
| Humidity Range Operating |
5 – 95% (non-condensing) |
General
| Device Type |
Switch – 24 ports – managed – stackable |
| Enclosure Type |
Desktop, rack-mountable 1U |
| Subtype |
Gigabit Ethernet |
| Ports |
24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink) |
| Power Over Ethernet (PoE) |
PoE+ |
| PoE Budget |
370 W |
| Performance |
- Stacking bandwidth : 80 Gbps
- Switching capacity : 128 Gbps
- Forwarding rate : 41.67 Mpps
|
| MAC Address Table Size |
16K entries |
| Jumbo Frame Support |
9578 bytes |
| Remote Management Protocol |
SNMP |
| Authentication Method |
RADIUS |
| Features |
- Flow control
- Auto-negotiation
- ALERT notification
- Auto-uplink (auto MDI/MDI-X)
- Syslog support
- Broadcast Storm Control
- Spanning Tree Protocol (STP) support
- Rapid Spanning Tree Protocol (RSTP) support
- DHCP snooping
- Access Control List (ACL) support
- Fanless
- LLDP support
- DHCP relay
- Link Aggregation Control Protocol (LACP)
- Port Security
- DHCP client
- Static routing
- 802.1x authentication
- Crossover detection
- Bridge protocol data unit (BPDU)
- Role-Based Access Control (RBAC)
- Root Guard
|
