Meraki MS210-48LP Dubai

Meraki MS210-48LP Dubai

Meraki MS210-48LP Dubai

The Meraki MS210-48LP Dubai includes integrated Layer 7 fingerprinting. Identify hundreds of applications from business apps to BitTorrent and YouTube.

Category:

Description

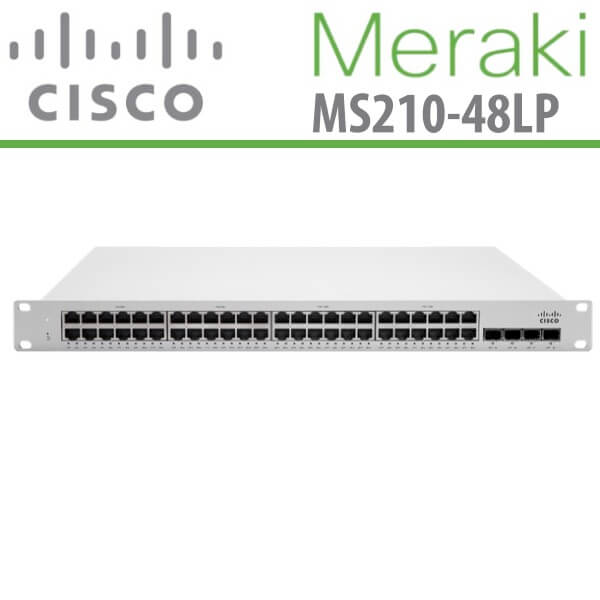

Meraki MS210-48LP Dubai

The Meraki MS210-48LP Dubai switch is designed to provide Layer 2 access switching for branch and small campus locations. It comes with four 1G SFP uplinks and can be physically stacked with the MS225 to access its 10G uplink. Additionally, this switch supports the optional Cisco RPS-2300 rack-mountable PSU for power redundancy. The Meraki MS210-48LP Dubai switch is specifically built to be easily managed without compromising the power and flexibility typically found in enterprise-class switches. Its management interface is elegant and intuitive, allowing administrators to have deep visibility into the network and its usage. With Meraki’s centralized management, administrators can easily identify switches that are near capacity across multiple sites and quickly search for any configuration changes made by specific individuals.

Meraki MS210-48LP Specifications

Interfaces

  • 24 × 10/100/1000BASE-T Ethernet (RJ45) with auto-MDIX crossover
  • 802.3af/802.3 at Power-over-Ethernet (PoE/PoE+) on MS210-24P, available on all ports (maximum of 30W per port for PoE+)
  • 4 × 1GbE SFP interfaces for uplink
  • 2 × Stacking interfaces

Auto negotiation and crossover detection

Management

  • Managed via the cloud using the Meraki dashboard
  • Integrated with Meraki Wireless and complete portfolio of IT products and solutions
  • No-touch remote deployment (no staging needed)
  • Detailed historical per-port and per-client usage statistics)
  • DHCP, client, and hostname fingerprinting
  • SNMP and SYSLOG support for integration with other network management solutions
  • Seamless over-the-web firmware upgrades with scheduling & control
  • Remote diagnostics
  • Email, SMS and Mobile push notification alerts
  • Cable testing and link failure detection with alerting
  • Live remote packet capture
  • Dynamic and interactive network discovery and topology
  • Aggregated event logs with instant search
  • Flexible stacking
  • Physical stacking of up to 8 switches with 80 Gbps stack bandwidth on all models
  • Virtual stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration

Ethernet switching capabilities

  • 802.1p Quality of Service prioritization
  • 802.1Q VLAN tagging with 4,095 addressable tags
  • 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP)
  • Broadcast storm control
  • 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
  • 802.3ad link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches
  • IGMP snooping for multicast filtering
  • MAC forwarding entries : 16K on 24-port models, 32K on 48-port models
  • Security Integrated two-factor authentication for Dashboard management
  • Role-based access control (RBAC) with granular device and configuration control
  • Corporate wide password policy enforcement
  • IEEE 802.1X RADIUS, hybrid authentication and RADIUS server testing
  • MAC-based RADIUS authentication (MAB)
  • Port security : Sticky MAC, MAC whitelisting
  • DHCP snooping, detection and blocking
  • STP Enhancements : BPDU guard, Root guard
  • IPv4 ACLs
  • Power over Ethernet : 802.3af (PoE) 15.4 W per port and 802.3at (PoE+) 30 W per port
  • Maximum PoE output (24P) : 370 W
  • PoE available on all ports simultaneously
  • Performance Non-blocking switching fabric
  • Switching capacity: 128Gbps (24-port models), 176Gbps (48-port models)
  • Forwarding rate (mbps) : 41.67 (24-port models), 77.38 (48-port models)
  • Jumbo Frame Support (9578 byte Ethernet frame)
  • Flow control support
  • Layer 3 Static Routing (maximum of 16 static routes supported)
  • DHCP Relay

Power

  • Power input : 100 – 240 VAC, 47-63 Hz
  • Power consumption : 15 – 448 W
  • RPS interface : Requires RPS-2300 chassis, see Cisco RPS-2300 Datasheet for further information

Mounting

  • 1U Rack-mountable with included rack mount hardware
  • 2-post front mounting options available
  • Desktop-mountable with included feet

Environment

  • Operating temperature : 32°F to 104°F (0°C to 40°C)
  • Humidity : 5 to 95% non-condensing
  • MS225-24, MS225-48 feature
  • Fanless operation
  • Regulatory CSA-US (US, Canada)
  • FCC (USA)
  • IC (Canada)
  • CE (Europe)
  • RCM (Australia/New Zealand)
  • RoHS
