Description

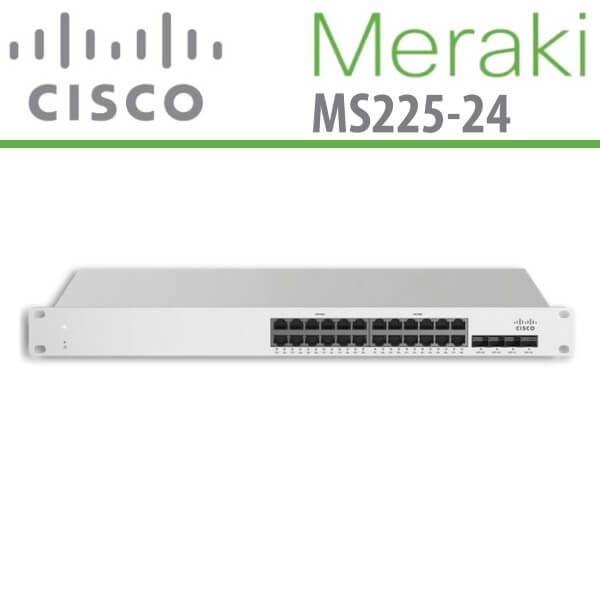

Meraki MS225-24 Dubai
The Meraki MS225-24 Dubai is a cloud-managed access switch designed for enterprise use. It has 24 ports and supports four SFP+ uplinks. It is also compatible with Cisco’s Redundant Power System (RPS) for critical environments. The MS225 family includes features such as client and layer 7 application visibility, as well as troubleshooting tools like live packet capture and cable testing. The switch is fully managed through the Meraki dashboard, which can be accessed via a web browser. It comes with a comprehensive set of features and does not require any additional cost or complexity. The Meraki MS225-24 Dubai is an ideal choice for branch locations, providing layer 2 access switching and guaranteed performance with its stacking capabilities and 10G SFP+ uplinks. Additionally, it supports an optional remote power supply unit (Cisco RPS-2300) for power redundancy needs.
Meraki MS225-24 Specifications
Interface |
- 24 × 10/100/1000BASE-T Ethernet (RJ45) with auto-MDIX crossover
- 802.3af/802.3at Power-over-Ethernet (PoE/PoE+) on MS225-24P, available on all ports (maximum of 30W per port for PoE+)
- 4 × SFP+ 10 Gigabit Ethernet interfaces for uplink
- 2 × Stacking interfaces
- Auto negotiation and crossover detection
|
Management |
- Managed via the cloud using the Meraki dashboard
- Integrated with Meraki Wireless and complete portfolio of IT products and solutions
- No-touch remote deployment (no staging needed)
- Detailed historical per-port and per-client usage statistics
- DHCP, client, and hostname fingerprinting
- SNMP and SYSLOG support for integration with other network management solutions
- Seamless over-the-web firmware upgrades with scheduling & control
|
Remote diagnostics |
- Email, SMS and Mobile push notification alerts
- Cable testing and link failure detection with alerting
- Live remote packet capture
- Dynamic and interactive network discovery and topology
- Aggregated event logs with instant search
|
Flexible stacking |
- Physical stacking of up to 8 switches with 80 Gbps stack bandwidth on all models
- Virtual stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
|
Ethernet switching capabilities |
- 802.1p Quality of Service prioritization
- 802.1Q VLAN tagging with 4,095 addressable tags
- 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP)
- Broadcast storm control
- 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
- 802.3ad link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches
- IGMP snooping for multicast filtering
- MAC forwarding entries: 16K on 24-port models, 32K on 48-port models
|
Security |
- Integrated two-factor authentication for Dashboard management
- Role-based access control (RBAC) with granular device and configuration control
- Corporate wide password policy enforcement
- IEEE 802.1X RADIUS, hybrid authentication and RADIUS server testing
- MAC-based RADIUS authentication (MAB)
- Port security: Sticky MAC, MAC whitelisting
- DHCP snooping, detection and blocking
- STP Enhancements: BPDU guard, Root guard
- IPv4 ACLs
|
Power over Ethernet |
- 802.3af (PoE) 15.4 W per port and 802/.3at (PoE+) 25.5 W per port
- Maximum PoE output (24P): 370 W
- PoE available on all ports simultaneously
|
Performance |
- Non-blocking switching fabric
- Switching capacity: 128Gbps (24-port models), 176Gbps (48-port models)
- Forwarding rate (mpps): 95.24 (24-port models), 127.98 (48-port models)
- Jumbo frame support (9600 byte Ethernet frame)
- Flow control support
|
Layer 3 |
- Static Routing (maximum of 16 static routes supported)
- DHCP Relay
|
Power |
- Power input: 100 – 240 VAC, 47-63 Hz
- Power consumption: 15 – 448 W
- RPS interface: Requires RPS-2300 chassis, see Cisco RPS-2300 Datasheet for further information
|
Mounting |
- 1U Rack-mountable with included rack mount hardware
- 2-post front mounting options available
- Desktop-mountable with included feet
|
Environment |
- Operating temperature: 32°F to 104°F (0°C to 40°C)
- Humidity: 5 to 95% non-condensing
- MS225-24, MS225-48 feature fanless operation
|
