The Meraki MS225-24P Dubai is managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there’s no need for complicated configuration files, or even direct physical access to the switch.

Category:

Description

Meraki MS225-24P Dubai

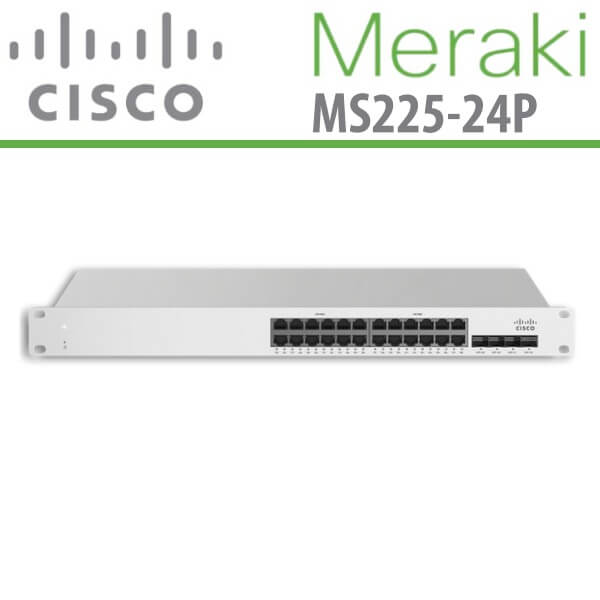

The Meraki MS225-24P Dubai is a 24 port Power over Ethernet (PoE+) switch that offers layer 2 access switching and is perfect for branch locations. It guarantees performance with stacking capabilities and 10G SFP+ uplinks. Additionally, this switch family supports an optional remote PSU (Cisco RPS-2300) that can be rack-mounted for power redundancy needs. Meraki Network Switches Dubai are designed to be easily manageable while retaining the power and flexibility typically found in enterprise-class switches. The management of the Meraki MS225-24P Dubai is done through a user-friendly cloud interface, eliminating the need for complex command line configurations or physical access to the switch. With Meraki’s centralized management, administrators gain in-depth visibility into the network and its usage. They can easily identify switches that are reaching capacity across numerous sites and quickly search for specific configuration changes made by individuals.

Technical Specs:

Interfaces

  • 24 × 10/100/1000BASE-T Ethernet (RJ45) with auto-MDIX crossover
  • 802.3af/802.3at Power-over-Ethernet (PoE/PoE+) on MS225-24P, available on all ports (maximum of 30W per port for PoE+)
  • 4 × SFP+ 10 Gigabit Ethernet interfaces for uplink
  • 2 × Stacking interfaces
  • Auto negotiation and crossover detection

Management

  • Managed via the cloud using the Meraki dashboard
  • Integrated with Meraki Wireless and complete portfolio of IT products and solutions
  • No-touch remote deployment (no staging needed)
  • Detailed historical per-port and per-client usage statistics
  • DHCP, client, and hostname fingerprinting
  • SNMP and SYSLOG support for integration with other network management solutions
  • Seamless over-the-web firmware upgrades with scheduling & control

Remote diagnostics

  • Email, SMS and Mobile push notification alerts
  • Cable testing and link failure detection with alerting
  • Live remote packet capture
  • Dynamic and interactive network discovery and topology
  • Aggregated event logs with instant search

Flexible stacking

  • Physical stacking of up to 8 switches with 80 Gbps stack bandwidth on all models
  • Virtual stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration

Ethernet switching capabilities

  • 802.1p Quality of Service prioritization
  • 802.1Q VLAN tagging with 4,095 addressable tags
  • 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP)
  • Broadcast storm control
  • 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
  • 802.3ad link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches
  • IGMP snooping for multicast filtering
  • MAC forwarding entries : 16K on 24-port models, 32K on 48-port models

Security

  • Integrated two-factor authentication for Dashboard management
  • Role-based access control (RBAC) with granular device and configuration control
  • Corporate wide password policy enforcement
  • IEEE 802.1X RADIUS, hybrid authentication and RADIUS server testing
  • MAC-based RADIUS authentication (MAB)
  • Port security: Sticky MAC, MAC whitelisting
  • DHCP snooping, detection and blocking
  • STP Enhancements: BPDU guard, Root guard
  • IPv4 ACLs

Power over Ethernet:

  • 802.3af (PoE) 15.4 W per port and 802.3at (PoE+) 30 W per port
  • Maximum PoE output (24P) : 370 W
  • PoE available on all ports simultaneously

Performance

  • Non-blocking switching fabric
  • Switching capacity : 128Gbps (24-port models), 176Gbps (48-port models)
  • Forwarding rate (mbps) : 95.24 (24-port models), 127.98 (48-port models)
  • Jumbo Frame Support (9578 byte Ethernet frame)
  • Flow control support

Layer 3

  • Static Routing (maximum of 16 static routes supported)
  • DHCP Relay

Power

  • Power input : 100 – 240 VAC, 47-63 Hz
  • Power consumption : 15 – 448 W
  • RPS interface : Requires RPS-2300 chassis, see Cisco RPS-2300 Datasheet for further information

Mounting

  • 1U Rack-mountable with included rack mount hardware
  • 2-post front mounting options available
  • Desktop-mountable with included feet
  • Environment
    • Operating temperature : 32°F to 104°F (0°C to 40°C)
    • Humidity : 5 to 95% non-condensing
    • MS225-24, MS225-48 feature fanless operation
