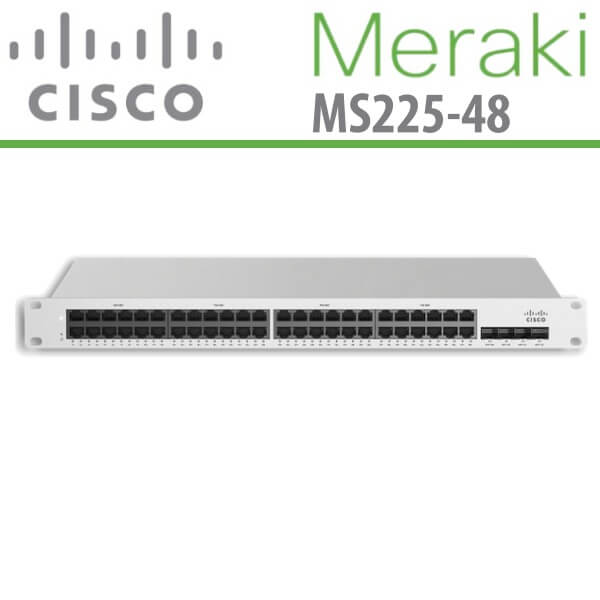

Meraki MS225-48 Dubai

The Meraki MS225-48 Dubai is managed through a user-friendly cloud interface, rather than a complex command line. This Meraki switch allows for easy setup without the need for complicated configuration files or physical access to the switch. With Meraki’s centralized management, administrators have comprehensive visibility into the network and its usage. They can easily identify switches that are nearing capacity across multiple sites and quickly search for configuration changes made by specific individuals. The Meraki MS225-48 Dubai switches are perfect for deploying in branch locations, offering layer 2 access switching. They come with stacking capabilities and 10G SFP+ uplinks on every model, ensuring optimal performance. Additionally, this switch family supports an optional, rack-mountable remote power supply unit (Cisco RPS-2300) to meet power redundancy requirements. Meraki Network Switches in Dubai are designed to be easily manageable while still providing the power and flexibility expected from enterprise-class switches.

Meraki MS225-48 Specifications

Interface	48 × 10/100/1000BASE-T Ethernet (RJ45) with auto-MDIX crossover 802.3af/802.3at Power-over-Ethernet (PoE/PoE+) on MS225-24P, available on all ports (maximum of 30W per port for PoE+) 4 × SFP+ 10 Gigabit Ethernet interfaces for uplink 2 × Stacking interfaces Auto negotiation and crossover detection
Management	Managed via the cloud using the Meraki dashboard Integrated with Meraki Wireless and complete portfolio of IT products and solutions No-touch remote deployment (no staging needed) Detailed historical per-port and per-client usage statistics DHCP, client, and hostname fingerprinting SNMPd and SYSLOG support for integration with other network management solutions Seamless over-the-web firmware upgrades with scheduling & control
Remote diagnostics	Email, SMS and Mobile push notification alerts Cable testing and link failure detection with alerting Live remote packet capture Dynamic and interactive network discovery and topology Aggregated event logs with instant search
Flexible stacking	Physical stacking of up to 8 switches with 80 Gbps stack bandwidth on all models Virtual stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
Ethernet switching capabilities	802.1p Quality of Service prioritization 802.1Q VLAN tagging with 4,095 addressable tags 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP) Broadcast storm control 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP) 802.3ad link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches IGMP snooping for multicast filtering MAC forwarding entries : 16K on 24-port models, 32K on 48-port models
Security	Integrated two-factor authentication for Dashboard management Role-based access control (RBAC) with granular device and configuration control Corporate wide password policy enforcement IEEE 802.1X RADIUS, hybrid authentication and RADIUS server testing MAC-based RADIUS authentication (MAB) Port security : Sticky MAC, MAC whitelisting DHCP snooping, detection and blocking STP Enhancements : BPDU guard, Root guard IPv4 ACLs
Power over Ethernet	802.3af (PoE) 15.4 W per port and 802/.3at (PoE+) 25.5 W per port Maximum PoE output (48LP/48FP): 370 / 740 W PoE available on all ports simultaneously
Performance	Non-blocking switching fabric Switching capacity : 128Gbps (24-port models), 176Gbps (48-port models) Forwarding rate (mpps) : 95.24 (24-port models), 127.98 (48-port models) Jumbo frame support (9600 byte Ethernet frame) Flow control support
Layer 3	Static Routing DHCP Relay
Power	Power input : 100 – 240 VAC, 47-63 Hz Power consumption : 25 – 882 W RPS interface : Requires RPS-2300 chassis
