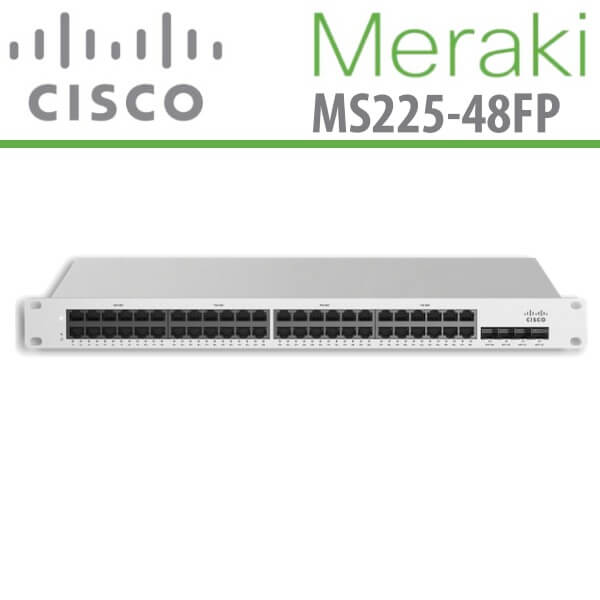

Meraki MS225-48FP Dubai

Meraki MS225-48FP Dubai

The Meraki MS225-48FP Dubai is designed to provide large business with networking connectivity that can be scaled according to your needs. The MS225-48FP gives you 48 PoE ports with a 740W total power budget that can provide power to connected devices.

Category:

Description

Meraki MS225-48FP Dubai

The Meraki MS225-48FP Dubai is specifically designed for large businesses, offering scalable networking connectivity to meet your needs. With 48 PoE ports and a total power budget of 740W, this switch can efficiently power connected devices. Additionally, it features four SFP 10 Gigabit Ethernet ports, allowing for the installation of various uplinks, including fiber-optic cables. The MS225-48FP boasts a forwarding rate of 130.95 Megabytes and a switching capacity of 176 Gb/s, ensuring optimal performance for your linked devices. It also supports 9600B jumbo frames. With its compact design, it can be conveniently placed within 1 RU rack cabinets, making system management a breeze. One of the key advantages of Cisco Meraki switches is their user-friendly management system, which doesn’t compromise on power and flexibility. The Meraki MS225-48FP Dubai can be easily managed through an intuitive cloud interface, eliminating the need for complex configuration files or direct physical access to the switch. With centralized management, administrators have deep visibility into the network and its usage. This includes the ability to monitor switch capacity across multiple sites and instantly search for configuration changes made by specific users.

Meraki MS225-48FP Specifications

Interface
  • 48 × 10/100/1000BASE-T Ethernet (RJ45) with auto-MDIX crossover
  • 802.3af/802.3at Power-over-Ethernet (PoE/PoE+) on MS225-24P, available on all ports (maximum of 30W per port for PoE+)
  • 4 × SFP+ 10 Gigabit Ethernet interfaces for uplink
  • 2 × Stacking interfaces
  • Auto negotiation and crossover detection
Management
  • Managed via the cloud using the Meraki dashboard
  • Integrated with Meraki Wireless and complete portfolio of IT products and solutions
  • No-touch remote deployment (no staging needed)
  • Detailed historical per-port and per-client usage statistics
  • DHCP, client, and hostname fingerprinting
  • SNMPd and SYSLOG support for integration with other network management solutions
  • Seamless over-the-web firmware upgrades with scheduling & control
Remote diagnostics
  • Email, SMS and Mobile push notification alerts
  • Cable testing and link failure detection with alerting
  • Live remote packet capture
  • Dynamic and interactive network discovery and topology
  • Aggregated event logs with instant search
Flexible stacking
  • Physical stacking of up to 8 switches with 80 Gbps stack bandwidth on all models
  • Virtual stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
Ethernet switching capabilities
  • 802.1p Quality of Service prioritization
  • 802.1Q VLAN tagging with 4,095 addressable tags
  • 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP)
  • Broadcast storm control
  • 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
  • 802.3ad link aggregation with up to 8 ports per aggregate, Multi-chassis aggregates supported on stacked switches
  • IGMP snooping for multicast filtering
  • MAC forwarding entries : 16K on 24-port models, 32K on 48-port models
Security
  • Integrated two-factor authentication for Dashboard management
  • Role-based access control (RBAC) with granular device and configuration control
  • Corporate wide password policy enforcement
  • IEEE 802.1X RADIUS, hybrid authentication and RADIUS server testing
  • MAC-based RADIUS authentication (MAB)
  • Port security : Sticky MAC, MAC whitelisting
  • DHCP snooping, detection and blocking
  • STP Enhancements : BPDU guard, Root guard
  • IPv4 ACLs
Power over Ethernet
  • 802.3af (PoE) 15.4 W per port and 802/.3at (PoE+) 25.5 W per port
  • Maximum PoE output (48LP/48FP) : 370 / 740 W

PoE available on all ports simultaneously
Performance
  • Non-blocking switching fabric
  • Switching capacity : 128Gbps (24-port models), 176Gbps (48-port models)
  • Forwarding rate (mpps) : 95.24 (24-port models), 127.98 (48-port models)
  • Jumbo frame support (9600 byte Ethernet frame)
  • Flow control support
Layer 3
  • Static Routing
  • DHCP Relay
Power
  • Power input : 100 – 240 VAC, 47-63 Hz
  • Power consumption : 25 – 882 W
  • RPS interface : Requires RPS-2300 chassis, see Cisco RPS-2300 Datasheet for further information
Mounting
  • 1U Rack-mountable with included rack mount hardware
  • 2-post front mounting options available
  • Desktop-mountable with included feet
Environment
  • Operating temperature : 32°F to 104°F (0°C to 40°C)
  • Humidity : 5 to 95% non-condensing
  • MS225-24, MS225-48 feature fan-less operation
