Description

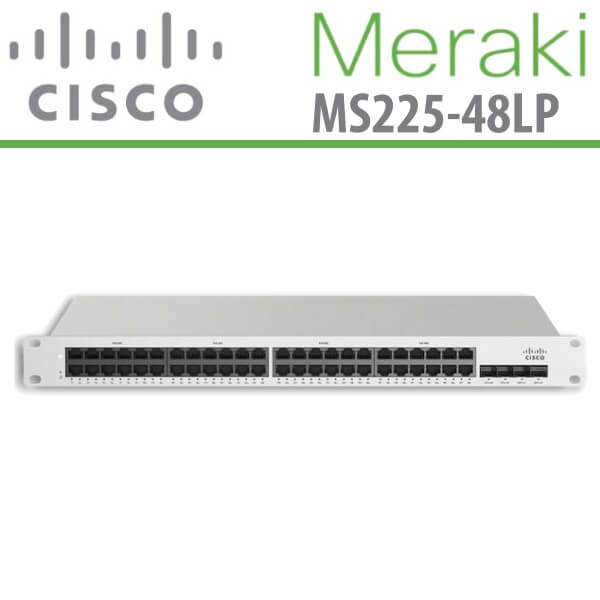

Meraki MS225-48LP Dubai
The Meraki MS225-48LP Dubai offers layer 2 access switching and is ideal for branch locations. It guarantees performance with stacking capabilities and 10G SFP+ uplinks on every model. This family also supports an optional, rack-mountable remote PSU (Cisco RPS-2300) to meet power redundancy requirements. The Meraki Network Switches in Dubai are designed to be easy to manage without sacrificing power and flexibility typically found in enterprise-class switches. The Meraki MS225-48LP Dubai is managed through a user-friendly cloud interface, eliminating the need for complicated configuration files or physical access to the switch. With Meraki’s centralized management, administrators have deep visibility into the network and its usage. They can easily identify switches nearing capacity across multiple sites and quickly search for configuration changes made by specific individuals.
Meraki MS225-48LP Specifications
Interface |
- 48 × 10/100/1000BASE-T Ethernet (RJ45) with auto-MDIX crossover
- 802.3af/802.3at Power-over-Ethernet (PoE/PoE+) on MS225-24P, available on all ports (maximum of 30W per port for PoE+)
- 4 × SFP+ 10 Gigabit Ethernet interfaces for uplink
- 2 × Stacking interfaces
- Auto negotiation and crossover detection
|
Management |
- Managed via the cloud using the Meraki dashboard
- Integrated with Meraki Wireless and complete portfolio of IT products and solutions
- No-touch remote deployment (no staging needed)
- Detailed historical per-port and per-client usage statistics
- DHCP, client, and hostname fingerprinting
- SNMPd and SYSLOG support for integration with other network management solutions
- Seamless over-the-web firmware upgrades with scheduling & control
|
Remote diagnostics |
- Email, SMS and Mobile push notification alerts
- Cable testing and link failure detection with alerting
- Live remote packet capture
- Dynamic and interactive network discovery and topology
- Aggregated event logs with instant search
|
Flexible stacking |
- Physical stacking of up to 8 switches with 80 Gbps stack bandwidth on all models
- Virtual stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
|
Ethernet switching capabilities |
- 802.1p Quality of Service prioritization
- 802.1Q VLAN tagging with 4,095 addressable tags
- 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP)
- Broadcast storm control
- 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
- 802.3ad link aggregation with up to 8 ports per aggregate, Multi-chassis aggregates supported on stacked switches
- IGMP snooping for multicast filtering
- MAC forwarding entries : 16K on 24-port models, 32K on 48-port models
|
Security |
- Integrated two-factor authentication for Dashboard management
- Role-based access control (RBAC) with granular device and configuration control
- Corporate wide password policy enforcement
- IEEE 802.1X RADIUS, hybrid authentication and RADIUS server testing
- MAC-based RADIUS authentication (MAB)
- Port security : Sticky MAC, MAC whitelisting
- DHCP snooping, detection and blocking
- STP Enhancements : BPDU guard, Root guard
- IPv4 ACLs
|
Power over Ethernet |
- 802.3af (PoE) 15.4 W per port and 802/.3at (PoE+) 25.5 W per port
- Maximum PoE output (48LP/48FP): 370 / 740 W
- PoE available on all ports simultaneously
|
Performance |
- Non-blocking switching fabric
- Switching capacity : 128Gbps (24-port models), 176Gbps (48-port models)
- Forwarding rate (mpps) : 95.24 (24-port models), 127.98 (48-port models)
- Jumbo frame support (9600 byte Ethernet frame)
- Flow control support
|
Layer 3 |
- Static Routing
- DHCP Relay
|
Power |
- Power input : 100 – 240 VAC, 47-63 Hz
- Power consumption : 25 – 882 W
- RPS interface : Requires RPS-2300 chassis, see Cisco RPS-2300 Datasheet for further information
|
Mounting |
- 1U Rack-mountable with included rack mount hardware
- 2-post front mounting options available
- Desktop-mountable with included feet
|
Environment |
- Operating temperature : 32°F to 104°F (0°C to 40°C)
- Humidity : 5 to 95% non-condensing
- MS225-24, MS225-48LP feature fanless operation
|
