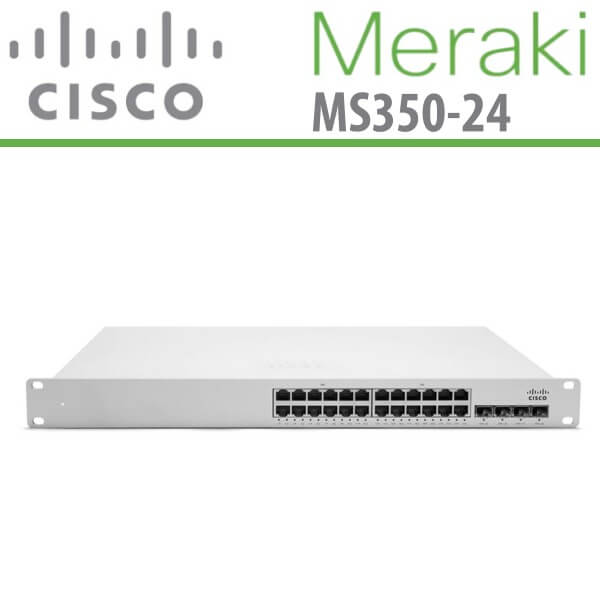

Meraki MS350-24 Dubai

The Meraki MS350-24 Dubai is a switch designed for campus networks, offering dependable and high-capacity access switching. It ensures reliability and optimal performance with its advanced stacking abilities and 10G SFP+ uplinks available on all models. Additionally, this switch family provides various options such as multigigabit, UPoE, and redundant, field-replaceable power supplies to support critical networks. Cisco Meraki switches are specifically engineered to be user-friendly while still delivering the power and versatility typically associated with enterprise-class switches.

Meraki MS350-24 Specifications

Dimensions and Interfaces

Physical Dimensions (H x W x D) : 1.74” x 19.08” x 20.4” (4.44cm x 48.46cm x 51.81cm)
Weight :12.37 lb (5.61 kg)
Interface : 24 x 10/100/1000BASE-T Ethernet RJ45 with auto negotiation and autoMDIX3, 4 x SFP+ 10G uplink, 2 x stacking ports
Switching Capacity :128 Gbps
Stacking Bandwidth : 160G (dual interface)

Power Options and Specifications

Idle / Full Load Power : 56 / 66 W
Power Supply Configuration : Hot-swappable
Supported Power Supply : 2 x 250W PSU

Management

Managed via the Web with the Meraki cloud management platform
Integrated with Meraki Wireless and complete portfolio of IT products and solutions
Zero-touch remote provisioning (no staging needed)
Detailed historical per-port and per-client usage statistics
DHCP, client, and hostname fingerprinting
SNMPd and SYSLOG support for integration with other network management solutions
Automatic firmware upgrades with scheduling control

Remote Diagnostics

Email, SMS and Mobile push notification alerts
Cable testing and link failure detection with alerting
Live remote packet capture
Dynamic and interactive network discovery and topology
Combined event and configuration change logs with instant search

Stacking

Physical stacking of up to 8 switches with 80 Gbps stack bandwidth on all models
Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration

Ethernet Switching Capabilities

802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping)
802.1Q VLAN and trunking support for up to 4,094 VLANs
802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP)
Broadcast storm control
802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
802.3ad Link aggregation with up to 8 ports per aggregate, Multi-chassis aggregates supported on stacked switches
Port mirroring
IGMP snooping for multicast filtering
MAC forwarding entries : 96K, 512K on MS350-24X

Security

Integrated two-factor authentication for Dashboard management
Role-based access control (RBAC) with granular device and configuration control
Corporate wide password policy enforcement
IEEE 802.1X RADIUS and MAB, hybrid authentication and RADIUS server testing
Multi-Domain/Multi-Host/Multi Authentication
Port security : Sticky MAC, MAC whitelisting
DHCP snooping, detection and blocking, Dynamic ARP Inspection
STP Enhancements : BPDU guard, Root guard, Loop guard
IPv4 and IPv6 ACLs

Performance

Switching capacity : 128Gbps on 24-port models, 176Gbps on 48-port models
Forwarding rate : 95.24mpps on 24-port models, 127.98mpps on 48-port models
Jumbo frame support (9600 byte Ethernet frame)
Flow control support

Layer 3

Static routing, OSFPv2
Multicast routing
Warm Spare (VRRP)2
DHCP Relay, DHCP Serve

Power

Power input : 100 – 240 VAC, 47-63 Hz
Power consumption : 56 – 888W

Environment

Operating temperature : -5°C to 50°C
Humidity : 5 to 95% non-condensing
Variable speed fans

Mounting

1U rack-mountable with included rack mount hardware
2-post front mounting options available
