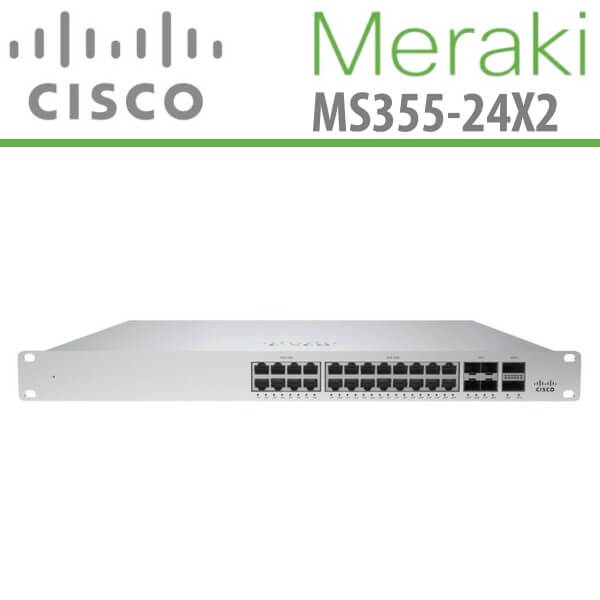

Meraki MS355-24X2 Dubai

The Meraki MS355-24X2 Dubai series, a solution designed to deliver comprehensive 10G multi-gigabit (mGig) access switching tailored for the demands of both enterprise and campus environments.

Prominently featured within the Meraki MS355-24X2 Dubai series is its impressive mGig port density, strategically positioned to cater to the requirements of 802.11ax wireless access points, servers, and workstations. This versatile series offers support for 40G or 10G uplinks, physical stacking capabilities, the potential for up to 60W of port power through UPoE, and the added convenience of field replaceable power supplies and fans.

Setting it apart, the Meraki MS355-24X2 Dubai encompasses a centralized management platform, empowering administrators with meticulous oversight of their network infrastructure. Through an intuitive dashboard, every configuration modification within the network is meticulously tracked, accompanied by comprehensive event and change logs.

Noteworthy among its attributes, the Meraki MS355-24X2 Dubai showcases a notable configuration of 24 mGig ports, further enhancing its capabilities and versatility.

Meraki MS355-24X2 Technical Specs:

Rack Mounting Kit	Included
MTBF	341,154 hours
Compliant Standards	CSA, C-Tick, IC, RoHS

Dimensions & Weight

Width	19.1 in
Depth	20.3 in
Height	1.7 in
Weight	13.01 lbs

Environmental Parameters

Min Operating Temperature	32 °F
Max Operating Temperature	113 °F
Humidity Range Operating	5 – 95% (non-condensing)

General

Device Type	Switch – 24 ports – L3 – managed – stackable
Enclosure Type	Desktop, rack-mountable 1U
Subtype	Gigabit Ethernet
Ports	24 x 1/2.5/5/10GBase-T + 4 x 10 Gigabit SFP+ + 2 x 40 Gigabit QSFP+
Power Over Ethernet (PoE)	UPOE
Performance	Switching capacity : 640 Gbps Forwarding rate : 476 Mpps
Capacity	Tagged VLANs : 4096
MAC Address Table Size	32K entries
Jumbo Frame Support	9600 bytes
Max Units In A Stack	8
Routing Protocol	IGMP VRRP OSPFv2 Static IP routing
Remote Management Protocol	SNMP
Authentication Method	RADIUS
Features	Flow control Auto-negotiation ARP support VLAN support Syslog support Port mirroring E-mail alert Broadcast Storm Control Spanning Tree Protocol (STP) support Rapid Spanning Tree Protocol (RSTP) support DHCP server SMS alert Dynamic ARP Inspection (DAI) Uni-Directional Link Detection (UDLD) LLDP support DHCP relay static routing crossover detection Bridge protocol data unit (BPDU) Role-Based Access Control (RBAC) Push notification Root Guard Loop Guard

Expansion / Connectivity

Interfaces

24 x 100/1000/2.5G/5G/10GBase-T RJ-45 UPOE
4 x 10Gbit LAN SFP+ uplink
2 x 40Gbit LAN QSFP+ uplink
2 x 100Gbit LAN QSFP28 stacking

Power

Power Device	Internal power supply – hot-plug
Power Provided	740 Watt
Voltage Required	AC 120/230 V (50/60 Hz)
Power Consumption Operational	1793 Watt
