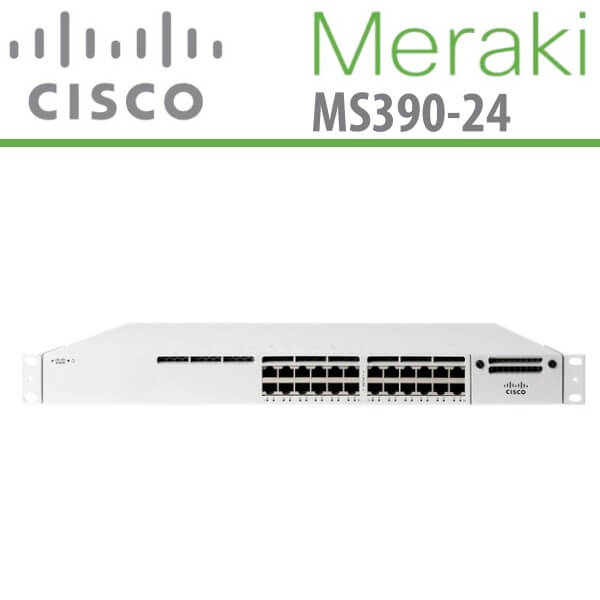

Meraki MS390-24 Dubai

The Meraki MS390-24 Dubai meets the needs of even the most challenging enterprise applications by combining the user-friendly Meraki dashboard with robust switching hardware. With fast stack convergence and StackPower, the Meraki MS390-24 Dubai ensures reliability. Additionally, it offers Adaptive Policy, which uses an over-the-wire tag to divide traffic into security groups, thus providing scalable security. Integrated into the Meraki dashboard, the Meraki MS390-24 Dubai offers a powerful and straightforward solution for wired access applications.

Meraki MS390-24 Specifications
Interfaces	24 × 100/1/2.5/5/10G Ethernet (RJ45) 4/8 × 10G SFP+ uplink modules 2 × 40G QSFP uplink modules Auto-negotiation and crossover detection 2 × dedicated stacking ports
Management	Managed via the Web with the Meraki cloud management platform Integrated with Meraki wireless and complete portfolio of IT products and solutions Zero-touch remote provisioning (no staging needed) Detailed historical per-port and per-client usage statistics Operating system, device, and hostname fingerprinting SNMP and SYSLOG support for integration with other network management solutions Automatic firmware upgrades with scheduling control
Remote Diagnostics	Email, SMS, and Mobile push notification alerts Ping, traceroute, cable testing, and link failure detection with alerting
Remote Packet Capture	Dynamic and interactive network discovery and topology Combined event and configuration change logs with instant search
Scalable Stacking	Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
Ethernet Switching Capabilities	802.1Q VLAN and trunking support for up to 4,094 VLANs (1000 active VLANs with STP enabled) Single instance of 802.1s Multiple Spanning Tree Protocol (interoperable with RSTP, STP, PVST, RPVST) STP Enhancements: BPDU guard, Root guard, Loop guard, UDLD Broadcast storm control 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP) 802.3ad Link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches Port mirroring IGMP snooping for multicast filtering MAC forwarding entries : 32K
Security	Integrated multi-factor authentication for cloud management platform Role-based access control (RBAC) with granular device and configuration control Corporate-wide password policy enforcement IEEE 802.1X RADIUS and MAB, hybrid authentication, and RADIUS server testing Single-Host/Multi-Domain/Multi-Host/Multi Authentication Port security : Sticky MAC, MAC whitelisting DHCP snooping, detection and blocking, Dynamic ARP Inspection IPv4 and IPv6 ACLs
Adaptive Policy	Software feature exclusively on the MS390 to provide an additional layer of security based on the intent of the user, device, and application.
SecureConnect	SecureConnect enables MS210 and above to detect and verify that the MR connected to a port belongs to the same organization and then automatically configure it.
Performance	Switching capacity : 154.76 Mpps Forwarding rate : 155 Mpps Jumbo frame support (9600 byte Ethernet frame) Flow control Stacking bandwidth of 480 Gbps
Layer 3 Capabilities	Static routing, OSPFv2 (with support for up to 16 ECMP Routes) Multicast routing [PIM-ASM] Warm spare (VRRP) DHCP Relay, DHCP Server
Power	Power input : 100 – 240 VAC, 50-60Hz Power consumption : 79.2 / 99 W (idle/max)
Mounting	1U Rack-mountable with included rack mount hardware 2-post front mounting options available
Environment	Operating temperature : 0°C to 45°C Humidity : 5 to 95% RH Variable speed fans
MTBF (at 25°C)	314,790
Physical Specifications (H × W × D)	1.73” × 17.5” × 17.7” (4.4 × 44.5 × 44.9cm) Weight: 16.03 lb (7.27 kg)
