Description

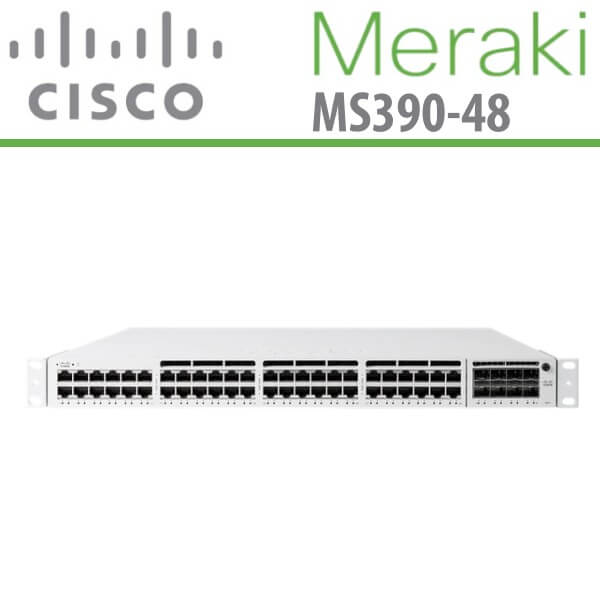

Meraki MS390-48 Dubai
The Meraki MS390-48 Dubai is designed to meet the needs of complex enterprise applications. It combines the user-friendly Meraki dashboard with robust switching hardware to deliver exceptional performance. With features like fast stack convergence and StackPower, the MS390-48 ensures reliable connectivity. Additionally, the Meraki MS390-48 Dubai offers Adaptive Policy, which uses an over-the-wire tag to categorize traffic into security groups, enhancing scalability and security. Integrated into the Meraki dashboard, this solution provides a straightforward and powerful solution for wired access applications with high demands.
Technical Specifications
| General |
| Device Type |
Switch – 48 ports – L3 – managed – stackable |
| Enclosure Type |
Rack-mountable 1U |
| Subtype |
Gigabit Ethernet |
| Ports |
48 x 10/100/1000 |
| Performance |
Switching capacity: 256 Gbps ¦ Stacking bandwidth: 480 Gbps ¦ Forwarding rate: 190.48 Mpps |
| MAC Address Table Size |
32K entries |
| Max Units In A Stack |
8 |
| Routing Protocol |
OSPF, VRRP, OSPFv2, static IP routing, RSTP, STP |
| Remote Management Protocol |
DHCP, IPv4, IPv6, RSTP, RADIUS |
| Authentication Method |
RADIUS |
| Features |
- Auto-negotiation
- IGMP snooping
- Syslog support
- Port mirroring
- E-mail alert
- Broadcast Storm Control
- Per-VLAN Spanning Tree (PVST)
- DHCP snooping
- Access Control List (ACL) support
- Quality of Service (QoS)
- DHCP server
- Uni-Directional Link Detection (UDLD)
- DHCP relay
- Port Security
- Hot swappable fan
- Cisco StackPower technology
- Crossover detection
- Cloud managed
- Role-Based Access Control (RBAC)
- Root Guard
- Loop Guard
- MAC Access Bypass (MAB)
- BPDU Guard
- Cisco Discovery Protocol (CDP)
|
| Compliant Standards |
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP) |
| Expansion / Connectivity |
| Interfaces |
- 48 x 1000Base-T RJ-45
- 2 x network stack device
- 1 x management
|
| Expansion Slots |
1 (total) / 1 (free) x expansion slot |
| Power |
| Power Device |
Internal power supply – hot-plug |
| Installed Qty |
1 |
| Max Supported Qty |
2 |
| Power Redundancy |
Optional |
| Power Redundancy Scheme |
1+1 (with optional power supply) |
| Power Provided |
350 Watt |
| Voltage Required |
AC 120/230 V (50 – 60 Hz) |
| Power Consumption Operational |
109.9 Watt |
| Power Consumption Stand by |
83.9 Watt |
