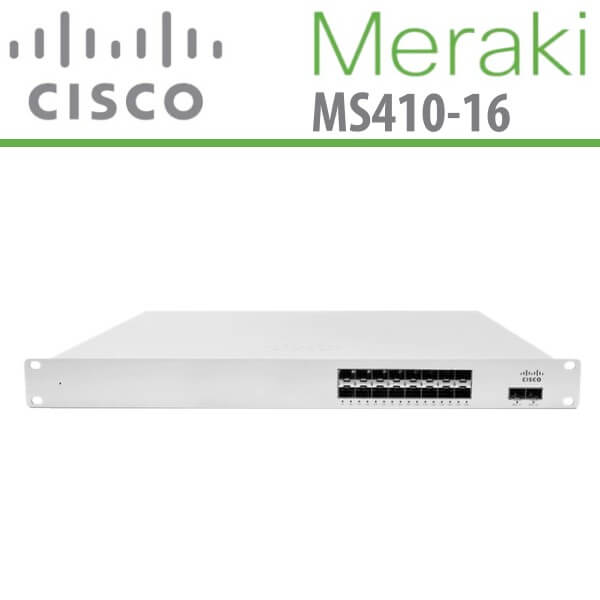

Meraki MS410-16 Dubai

Meraki MS410-16 Dubai

The Meraki MS410-16 Dubai is designed to unify data, voice, and video onto a single IP backbone. Meraki MS410-16 provides powerful 100% cloud-managed switching to the aggregation layer.

Category:

Description

Meraki MS410-16 Dubai

The Meraki MS410-16 Dubai is specifically designed to integrate data, voice, and video onto a singular IP backbone. The Meraki MS410-16 Dubai offers efficient cloud-managed switching for the aggregation layer. These fiber aggregation switches take advantage of the cloud’s benefits, such as easy management, reduced complexity, widespread visibility and control, and cost-effectiveness for campus deployments.

The Meraki MS410-16 consolidates voice, video, and data environments. Meraki MS410-16 switches provide robust quality-of-service (QoS) functionality to prioritize data, voice, and video traffic.Meraki MS410-16 Dubai support eight class-of-service (CoS) queues on each port, ensuring end-to-end traffic prioritization. The Cisco Meraki Cloud Networking architecture facilitates effortless branch deployments and centralizes visibility and control across multiple distributed locations.

The Meraki MS410-16 Switches feature virtual stacking, allowing users to manage thousands of switch ports as one, without the need for physical connections between switches. Users can easily locate and configure switch ports throughout the entire network, even if they are geographically dispersed. Port configuration for access devices, voice VLAN assignment, PoE control, and other tasks can be done with just a few simple clicks, without the need for complex CLI instructions. In addition to dynamic routing, layer 3 Meraki MS switches also support VRRP for warm spare failover, ensuring immediate gateway recovery and preventing downtime and disruptions for clients.

Meraki MS410-16 Specifications

Interfaces

  • 16 × 1 GbE SFP
  • 2 × 10GbE SFP+
  • 1 × 10/100/1000 RJ45 management port

Ethernet switching capabilities

  • 1p Quality of Service prioritization
  • 1Q VLAN tagging and Q-in-Q VLAN stacking with 4096 addressable tags
  • 1D Spanning Tree Protocol (RSTP, STP)
  • 1ab Link Layer Discovery Protocol (LLDP)
  • 3ad link aggregation with up to 8 ports per aggregate
  • Broadcast storm control
  • IGMP snooping for multicast filtering
  • 96K Forwarding Table Capacity

Layer 3 capabilities

  • Dynamic routing (OSPFv2)
  • Static routing
  • DHCP Relay
  • DHCP Server
  • Warm spare redundancy (VRRP)
  • DHCP Failover

Security

  • Integrated two-factor authentication
  • Role-based administration
  • Corporate wide password policy enforcement
  • IEEE 802.1X port-based security
  • LLDP, VLAN QoS (802.1pq), VPN(L2TP)
  • Transport Layer Security (TLS)
  • Digest authentication using MD5/MD5-sess
  • Secure configuration file via AES encryption
  • Phone lock for personal privacy protection
  • Admin/User 2-level configuration mode

Performance

  • Non-blocking fabric
  • 72 Gbps switching capacity

Hardware & Mounting

  • Rack-mountable with included rack mount hardware
  • Front-to-back airflow
  • Field-replaceable, hot-swappable power supplies
  • Field-replaceable, hot-swappable fans

Management

  • Managed via the cloud using the Meraki dashboard
  • Integrated with Meraki wireless, security appliance, and device management
  • No-touch remote deployment (no staging needed)
  • Detailed historical per-port and per-client usage statistics
  • DHCP and hostname fingerprinting
  • SNMPD allows integration with 3rd-party network management solutions
  • Seamless over-the-web firmware upgrades

Remote diagnostics

  • Email and text (SMS) alerts
  • Live remote packet capture
  • Aggregated event logs with instant search

Scalable stacking

  • Unified configuration and monitoring of all switches from aggregation layer to access layer
  • Virtually stack thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
  • Physically stack up to 8 switches for added resiliency in high-throughput environments

Power

  • Power input : 100-240 VAC, 47-63 Hz
  • Power consumption at idle : 56W / Full load: 66W

Environment

  • Operating temperature : 32°F to 113°F (0°C to 45°C)
