Description

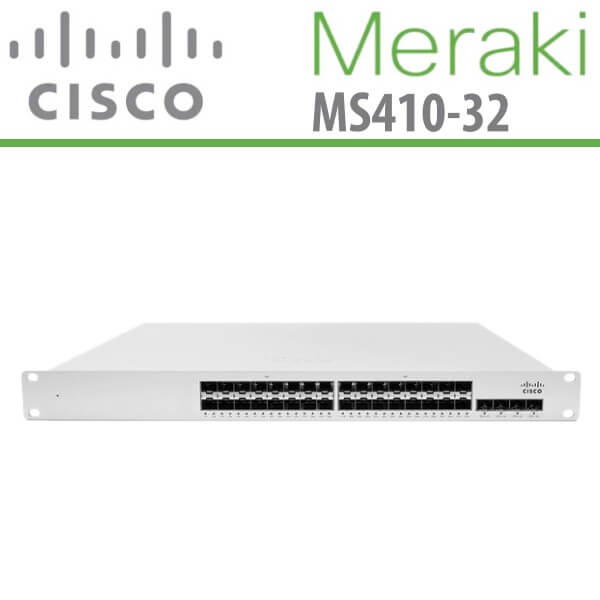

Meraki MS410-32 Dubai
The Meraki MS410-32 Dubai features cloud-managed access switches bringing the benefits of cloud computing, including management simplicity, reduced complexity, and lower cost, to branch and campus networks. The Meraki MS410-32 Dubai provides a powerful cloud-managed switching to the aggregation layer. With range of 1 and 10Gbps fiber aggregation switches MS410-32 adopts the benefits of the cloud simplifying management, reducing complexity, network wide visibility and control, and lower cost for campus deployments. Cisco Meraki aggregation switches extend Cisco Meraki’s cloud management to campus deployments.
The Meraki MS410-32 Dubai features 10 Gigabit Ethernet aggregation switches built from the ground for easy management without compromising any of the power and flexibility traditionally found in enterprise-class switches. The Meraki MS410-32 Dubai is managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Cisco Meraki switch, just plug without need for complicated configuration of files or pre-staging.
MS410-32 Specifications
Interfaces |
- 16 × 1 GbE SFP
- 2 × 10GbE SFP+
- 1 × 10/100/1000 RJ45 management port
|
- 32 × 1 GbE SFP
- 4 × 10 GbE SFP+
- 1 × 10/100/1000 RJ45 management port
|
Ethernet Switching Capabilities |
- 802.1p Quality of Service prioritization
- 802.1Q VLAN tagging for up to 4095 VLANs
- 802.1D Spanning Tree Protocol (RSTP, STP)
- 802.1ab Link Layer Discovery Protocol (LLDP)
- 802.3ad link aggregation with up to 8 ports per aggregate
- Broadcast storm control
- IGMP snooping for multicast filtering
- 96K Forwarding Table Capacity
|
Layer 3 capabilities |
- Dynamic routing (OSPFv2)
- Static routing
- DHCP Relay
- DHCP Server
- Warm spare for L3 gateway redundancy 2
- DHCP Failover
|
Management |
- Managed via the cloud using the Meraki dashboard
- Integrated with Meraki wireless, security appliance, and device management
- No-touch remote deployment (no staging needed)
- Detailed historical per-port and per-client usage statistics
- DHCP and hostname fingerprinting
- SNMPD allows integration with 3rd-party network management solutions
- Seamless over-the-web firmware upgrades
|
Remote Diagnostics |
- Email and SMS (text) alerts1
- Live remote packet capture
- Aggregated event and configuration change logs with instant search
|
Flexible Stacking |
- Virtually Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
- Physical stacking of up to 8 switches with 160Gbps stack bandwidth (MS410/425)
|
Power |
- Power input : 100 – 240 VAC, 47-63 Hz
- Power consumption at idle : 45W (MS420), 50W (MS410), 98W (MS425)
- Power consumption full load : 175W (MS420), 85W (MS410), 136W (MS425)
|
Environment |
Operating temp : 0C to 40C |
Mounting |
- Rack-mountable with included rack mount hardware
- Front-to-back airflow
|
Performance |
- Non-blocking fabric
- 72/144 Gbps switching capacity on MS410-16/32
- 1.2 microsecond latency
|
|
Physical dimensions |
- Weight : 18.1lb (8.18kg) MS420-48, 12.6lb (5.7kg) MS410-32, 14lb (6.35kg) MS425-32
- Size (410) : 19” (w) x 20.3” (d) x 1.8” (h) (48.5x 51.6x 4.5cm)
|
