Description

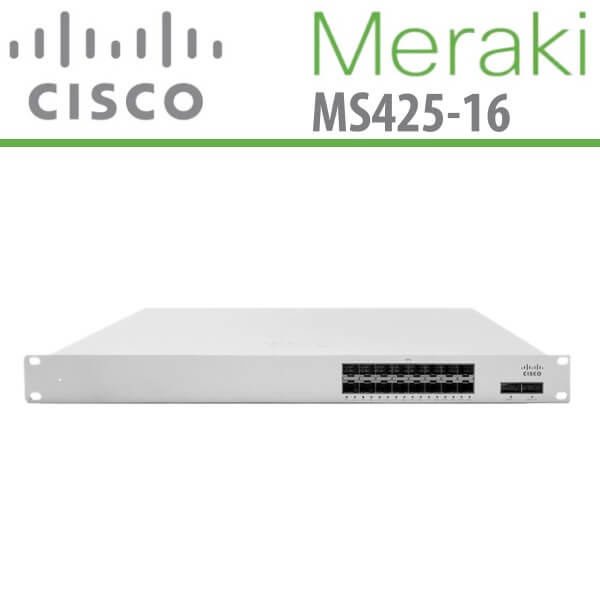

Meraki MS425-16 Dubai

The Meraki MS425-16 Dubai introduces efficient cloud-managed switching to the aggregation layer. This lineup of fiber aggregation switches, which operates at 1 and 10Gbps, leverages the advantages of cloud technology. By utilizing cloud management, the MS425-16 simplifies administration, reduces complexity, ensures comprehensive network visibility and control, and lowers costs for campus deployments. Cisco Meraki extends its cloud management capabilities to campus deployments through its aggregation switches. Similar to our access switches, these 10 Gigabit Ethernet aggregation switches are specifically designed to be easily managed without compromising the power and flexibility commonly associated with enterprise-class switches. Cisco Meraki switches are managed via a user-friendly cloud interface, eliminating the need for a complex command line interface. Setting up a Cisco Meraki switch is as simple as plugging it in; there is no requirement for intricate configuration files or pre-staging. The Cisco Meraki switch family aims to integrate data, voice, and video onto a single IP backbone. All Cisco Meraki switches offer extensive quality-of-service (QoS) features to prioritize data, voice, and video traffic. With support for eight class-of-service (CoS) queues on each port, these switches ensure end-to-end traffic prioritization.

Meraki MS425-16 Specifications

Interfaces	16 × 10GbE SFP+ 2 × 40GbE QSFP+ uplink/stacking ports 1 × 10/100/1000 RJ45 management port
Ethernet Switching Capabilities	802.1p Quality of Service prioritization 802.1Q VLAN tagging for up to 4095 VLANs 802.1D Spanning Tree Protocol (RSTP, STP) 802.1ab Link Layer Discovery Protocol (LLDP) 802.3ad link aggregation with up to 8 ports per aggregate Broadcast storm control IGMP snooping for multicast filtering 128K Forwarding Table Capacity
Layer 3 capabilities	Dynamic routing (OSPFv2) Static routing DHCP Relay DHCP Server Warm spare for L3 gateway redundancy 2 DHCP Failover
Security	Integrated two-factor authentication Role-based administration Corporate wide password policy enforcement IEEE 802.1X port-based security
Performance	Non-blocking fabric 480Gbps switching capacity
Management	Managed via the cloud using the Meraki dashboard Integrated with Meraki wireless, security appliance, and device management No-touch remote deployment (no staging needed) Detailed historical per-port and per-client usage statistics DHCP and hostname fingerprinting SNMPD allows integration with 3rd-party network management solutions Seamless over-the-web firmware upgrades
Remote Diagnostics	Email and SMS (text) alerts1 Live remote packet capture Aggregated event and configuration change logs with instant search
Scalable stacking	Unified configuration and monitoring of all switches from aggregation layer to access layer Virtually Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration Physical stacking of up to 8 switches with 160Gbps stack bandwidth (MS410/425)
Power	Power input : 100 – 240 VAC, 47 – 63Hz Power consumption at idle : 98W / Full load : 136W
Environment	Operating temperature : 32°F to 104°F (0°C to 40°C)
Mounting	Rack-mountable with included rack mount hardware Front-to-back airflow Field-replaceable, hot-swappable power supplies Field-replaceable, hot-swappable fans
Physical dimensions	Weight : 13.7lb (6.2kg) 19”(w) x 19.2” (l) x 1.8” (h) (48.5 x 48.7 x 4.5cm)
