The Meraki MS425-32 Dubai series brings powerful 100% cloud-managed switching to the aggregation layer. This range of 10Gbps fiber.

Category:

Description

Meraki MS425-32 Dubai

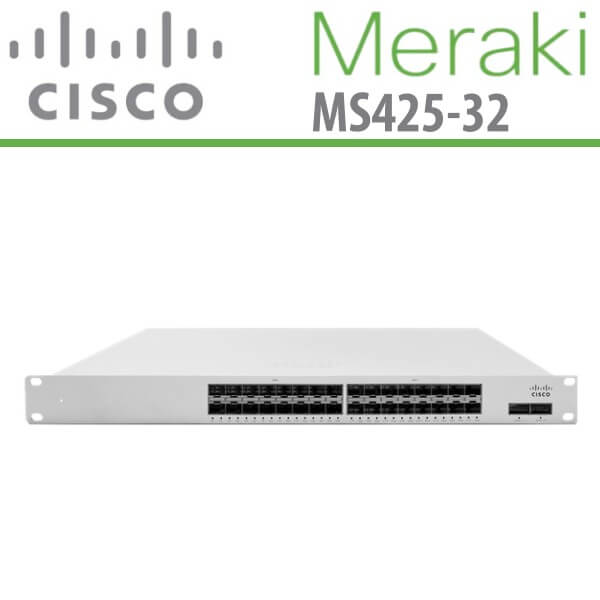

The Meraki MS425-32 Dubai is an enterprise-class aggregation switch with 32 ports that supports 10GbE. It is cloud-managed and stackable, with two QSFP+ 40G uplinks and redundant power supply support for critical environments. The MS425 family offers integrated client and layer 7 application visibility, as well as remote troubleshooting tools like live packet capture and cable test. It is 100% cloud-managed through the user-friendly Meraki dashboard and comes with a comprehensive feature set at no additional cost. The Meraki MS425-32 series brings the benefits of cloud-managed switching to the aggregation layer, providing intuitive management, reduced complexity, network-wide visibility and control, and cost savings for campus deployments.

Product Features:

  • Compact, 1RU design for space-constrained environments
  • Non-blocking switch backplane with 800 Gbps of switching capacity
  • Field-replaceable, hot-swappable power supplies
  • Field-replaceable, hot-swappable fans
  • Front-to-back cooling
  • Low power consumption and shallow rack depth, which enable flexible deployment
  • 2 × 40GbE QSFP+ uplink/stacking ports, flexible stacking on all interfaces
  • 32 × 10GbE SFP+/SFP
  • Dedicated RJ45 management port

Technical Specs:

SKU MS425-32-HW
Interfaces
  • 32x 1 0GbE SFP+ Fiber
  • 2 × 40GbE QSFP+ uplink/stacking ports
  • RJ45 Management port
Switching capacity 800 Gbps
Idle/Full Load Power 98W/136 W
What’s Included
  • 1 x Power Supply (MA-PWR-250WAC),
  • Mounting screw kit,
  • 3 x Pre-Installed Fans
Dimensions 19.1 x 20.3 x 1.7” (48.5 x 51.6 x 4.4 CM)
Weight 13.82 lb (6.27 kg)
