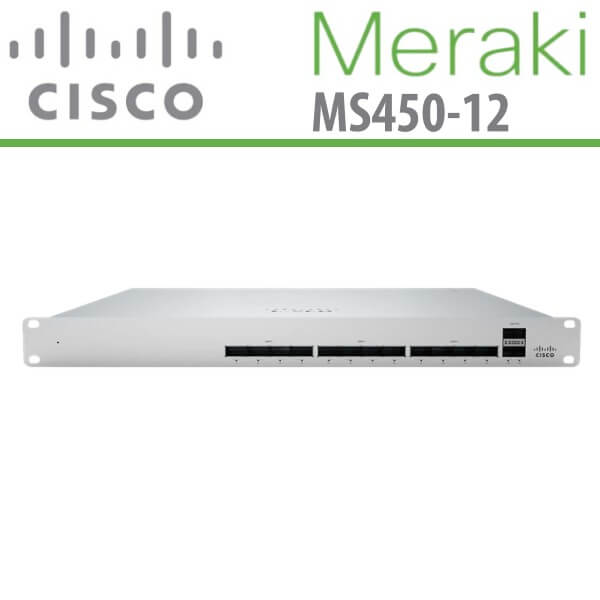

Meraki MS450-12 Dubai

Meraki MS450-12 Dubai

The Meraki MS450-12 Dubai is managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Cisco Meraki switch, just plug it in; there’s no need for complicated configuration files — or pre-staging.

Category:

Description

Meraki MS450-12 Dubai

The Meraki MS450-12 Dubai Series introduces efficient cloud-managed switching for the aggregation layer. This collection of fiber aggregation switches, capable of operating at 1 and 10Gbps, embraces the advantages of cloud technology. These advantages include simplified management, reduced complexity, comprehensive network visibility and control, as well as cost reduction for campus deployments. Cisco Meraki aggregation switches expand the reach of Cisco Meraki’s cloud management to campus deployments. Much like our access switches, these 10 Gigabit Ethernet aggregation switches are designed to be easily managed without sacrificing the power and adaptability commonly associated with enterprise-class switches. The Meraki MS450-12 Dubai is controlled through a user-friendly cloud interface, eliminating the need for complex command lines. To activate a Cisco Meraki switch, simply plug it in; there’s no requirement for intricate configuration files or pre-staging.

Technical Specifications:

Management
  • Managed via the Web with the Meraki cloud management platform
  • Integrated with Meraki Wireless and complete portfolio of IT products and solutions
  • Zero-touch remote provisioning (no staging needed)
  • Detailed historical per-port and per-client usage statistics
  • Operating system, device, and hostname fingerprinting
  • SNMP and SYSLOG support for integration with other network management solutions
  • Automatic firmware upgrades with scheduling control
Remote Diagnostics
  • Email, SMS and Mobile push notification alerts
  • Ping, traceroute, cable testing, and link failure detection with alerting
  • Remote packet capture
  • Dynamic and interactive network discovery and topology
  • Combined event and configuration change logs with instant search
Stacking
  • Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
  • Physical stacking of up to 8 switches with 400 Gbps stack bandwidth (MS450)
Layer 3 capabilities
  • Static routing, OSFPv2
  • Multicast routing
  • Warm Spare (VRRP)
  • DHCP Relay, DHCP Server
Ethernet Switching Capabilities
  • 802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping)
  • 802.1Q VLAN and trunking support for up to 4,094 VLANs
  • 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP)
  • STP Enhancements : BPDU guard, Root guard, Loop guard, UDLD
  • Broadcast storm control
  • 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
  • 802.3ad Link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches
  • Port mirroring
  • IGMP snooping for multicast filtering
  • MAC Forwarding Entries : 64K
Mounting
  • 1U rack-mountable
  • 4-Post Rack Mount kit
Performance
  • Non-blocking fabric
  • Switching Capacity, MS450 : 1.36 Tbps
  • Forwarding rate : 654.76 mpps
  • Jumbo frame support (9578 bytes of MTU)
Power
  • Power input : 100 – 240 VAC, 47-63 Hz
  • Power consumption : 57-138 W
Environment
  • Operating temp  : 0°C to 45°C
  • Humidity : 5 to 95% non-condensing
Mounting
  • Rack-mountable with included rack mount hardware
  • Front-to-back airflow
  • Field-replaceable, hot-swappable power supplies
  • Field-replaceable, hot-swappable fans
Interfaces
  • 1x RJ45 Management port
  • 12x 40G QSPF+, 2 x 100G QSFP28 uplinks
  • 2x 100G QSFP28 stacking ports
