Description

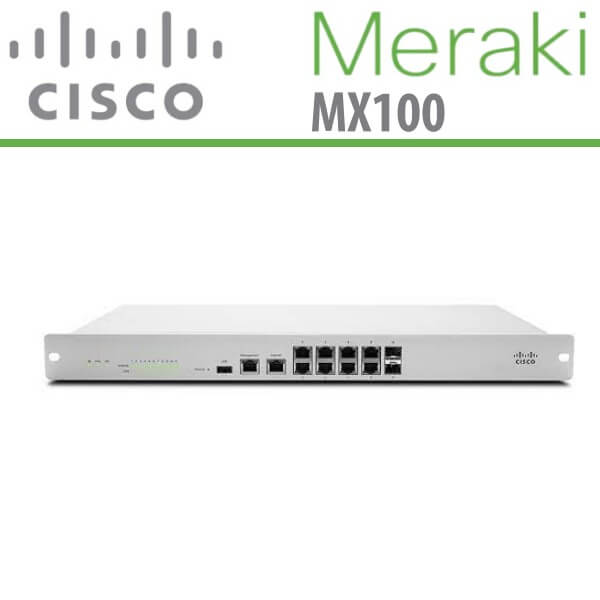

Meraki MX100 Dubai
The Meraki MX100 Dubai is an optimal choice for organizations seeking a Unified Threat Management (UTM) solution for their distributed sites, campuses, or datacenter VPN concentration needs. With 100% cloud management, installation and remote management become effortless. Additionally, the Meraki MX100 in Dubai offers a comprehensive range of network services, eliminating the requirement for multiple appliances. These services encompass SD-WAN capabilities, application-based
firewalling, content filtering, web search filtering, SNORT® based intrusion detection and prevention, Cisco Advanced Malware Protection (AMP), web caching, 4G cellular failover, and more. Our hardware and virtual appliances support Auto VPN and SD-WAN features, which can be easily configured in Amazon Web Services or Microsoft Azure.
Technical Specification
General
- Recommended Use Cases : Large branch
- Recommended Clients : 500
- Stateful Firewall Throughput : 750 Mbps
- Advanced Security Throughput : 650 Mbps
- Maximum VPN Throughput : 500 Mbps
- Maximum Concurrent VPN Tunnels : 250
- WAN Interfaces ( Dedicated) : 1 x GbE RJ45 1 x USB (cellular failover )
- Dual Purpose : 1 x GbE RJ45
- LAN Interfaces : Fixed 8 x GbE 2 x GbE (SFP)
- Web Caching : 1TB
- Mounting : 1U rack
- Dimensions : 19” x 10 “ x 1.75” (483 mm x 254mm x 44 mm)
- Weight : 9 lb (4.1kg)
- Power Supply : Internal 100-220V 50/60Hz AC
- Power Load : (idle/max)30W / 55W
- Operating Temperature : 32°F to 104°F (0°C to 40°C)
- Humidity : 5% to 95%
Management
- Managed via the web using the Cisco Meraki dashboard
- Single-pane-of-glass into managing wired and wireless networks
- Zero-touch remote deployment (no staging needed)
- Automatic firmware upgrades and security patches
- Templates based multi-network management
- Org-level two-factor authentication and single sign-on
- Role-based administration with change logging and alerts
Monitoring and Reporting
- Throughput, connectivity monitoring and email alerts
- Detailed historical per-port and per-client usage statistics
- Application usage statistics
- Org-level change logs for compliance and change management
- VPN tunnel and latency monitoring
- Network asset discovery and user identification
- Periodic emails with key utilisation metrics
- Device performance and utilisation reporting
- Netflow support
- Syslog integration
Remote Diagnostics
- Live remote packet capture
- Real-time diagnostic and troubleshooting tools
- Aggregated event logs with instant search
Network and Firewall Services
- Stateful firewall, 1:1 NAT, DMZ
- Identity-based policies
- Auto VPN: Automated site-to-site (IPsec) VPN, for hub-and-spoke or mesh topologies
- Client (IPsec L2TP) VPN
- Multiple WAN IP, PPPoE, NAT
- VLAN support and DHCP services
- Static routing
- User and device quarantine
WAN Performance Management
- Web caching (available on the MX84, MX100, MX250, MX450)
- WAN link aggregation
- Automatic Layer 3 failover (including VPN connections)
- 3G / 4G USB modem failover or single-uplink
- Application level (Layer 7) traffic analysis and shaping
- Ability to choose WAN uplink based on traffic type
- SD-WAN: Dual active VPN with policy-based routing and dynamic path selection
- CAT 6 LTE modem for failover or single-uplink1
Advanced Security Services
- Content filtering (Webroot BrightCloud CIPA compliant URL database)
- Web search filtering (including Google / Bing SafeSearch)
- YouTube for Schools
- Intrusion-prevention sensor (Cisco SNORT® based)
- Advanced Malware Protection (AMP)
- AMP Threat Grid
- Geography-based firewall rules (MaxMind Geo-IP database)
Integrated Cellular
- LTE bands : 2, 4, 5, 12, 13, 17, and 19 (North America). 1, 3, 5, 7, 8, 20, 26, 28A, 28B, 34, 38, 39, 40, and 41 (Worldwide)
- 300 Mbps CAT 6 LTE
- Additional regulatory information : PTCRB (US), RCM (ANZ, APAC), GCF (EU)
Regulatory
- FCC (US)
- CB (IEC)
- CISPR (Australia/New Zealand)
- PTCRB (US)
- RCM (Australia/New Zealand, Asia Pacific)
- GCF (EU)
