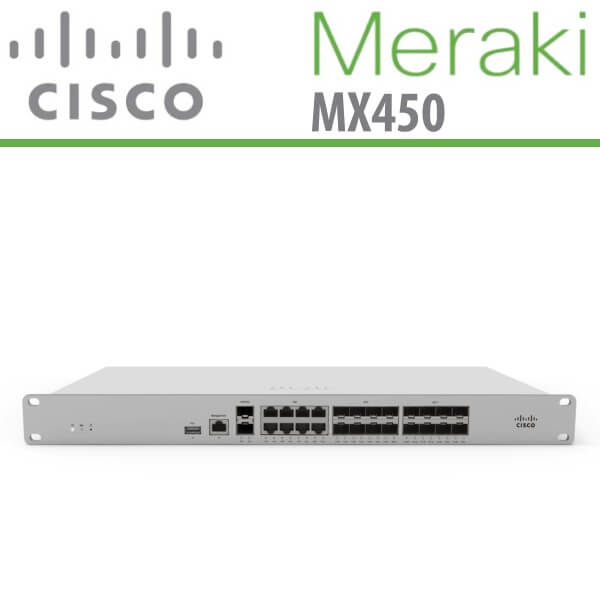

Meraki MX450 Dubai

Meraki MX450 Dubai

Meraki MX450 Dubai

The Meraki MX450 Dubai is a complete networking and security solution, designed to make distributed networks fast, secure, and easy to manage. The MX is managed entirely through Cisco Meraki’s web based dashboard.

Category:

Description

Meraki MX450 Dubai

The Meraki MX450 Dubai is a combined router, advanced firewall, traffic shaper, and Internet gateway that can be conveniently managed through the web. This device, the Meraki MX450 Dubai, boasts a wide range of features while still being simple to set up and maintain. With its user-friendly web-based administration, there is no need for specialized training or dedicated personnel. Additionally, the cloud-based centralized management offers effortless management of multiple networks across various sites, automatic firmware upgrades, and many other benefits.



Meraki MX450 Specifications

General

  • Recommended Use Cases : Campus or VPN concentrator
  • Recommended Clients : 10,000
  • Stateful Firewall Throughput : 6 Gbps
  • Advanced Security Throughput : 4 Gbps
  • Maximum VPN Throughput : 2 Gbps
  • Maximum Concurrent VPN Tunnels : 5,000
  • WAN Interfaces ( Dedicated) : 2 x 10GbE SFP+ 1 x USB (cellular failover)
  • LAN Interfaces : 8 x GbE (RJ45), 8 x GbE (SFP), 8 x 10GbE (SFP+)
  • Web Caching : 128GB (SSD)
  • Mounting : 1U rack
  • Dimensions : 19” x 17.3 “ x 1.75” (483 mm x 440 mm x 44 mm)
  • Weight : 16 lb (7.3kg)
  • Power Supply : Modular 100-220V 50/60Hz AC 2 x 250WAC PSU
  • Power Load : (idle/max)105W / 190W
  • Operating Temperature : 32°F to 104°F (0°C to 40°C)
  • Humidity : 5% to 95%

Management

  • Managed via the web using the Cisco Meraki dashboard
  • Single-pane-of-glass into managing wired and wireless networks
  • Zero-touch remote deployment (no staging needed)
  • Automatic firmware upgrades and security patches
  • Templates based multi-network management
  • Org-level two-factor authentication and single sign-on
  • Role-based administration with change logging and alerts

Monitoring and Reporting

  • Throughput, connectivity monitoring and email alerts
  • Detailed historical per-port and per-client usage statistics
  • Application usage statistics
  • Org-level change logs for compliance and change management
  • VPN tunnel and latency monitoring
  • Network asset discovery and user identification
  • Periodic emails with key utilisation metrics
  • Device performance and utilisation reporting
  • Netflow support
  • Syslog integration

Remote Diagnostics

  • Live remote packet capture
  • Real-time diagnostic and troubleshooting tools
  • Aggregated event logs with instant search

Network and Firewall Services

  • Stateful firewall, 1:1 NAT, DMZ
  • Identity-based policies
  • Auto VPN: Automated site-to-site (IPsec) VPN, for hub-and-spoke or mesh topologies
  • Client (IPsec L2TP) VPN
  • Multiple WAN IP, PPPoE, NAT
  • VLAN support and DHCP services
  • Static routing
  • User and device quarantine

WAN Performance Management

  • Web caching (available on the MX84, MX100, MX250, MX450)
  • WAN link aggregation
  • Automatic Layer 3 failover (including VPN connections)
  • 3G / 4G USB modem failover or single-uplink
  • Application level (Layer 7) traffic analysis and shaping
  • Ability to choose WAN uplink based on traffic type
  • SD-WAN: Dual active VPN with policy-based routing and dynamic path selection
  • CAT 6 LTE modem for failover or single-uplink1

Advanced Security Services

  • Content filtering (Webroot BrightCloud CIPA compliant URL database)
  • Web search filtering (including Google / Bing SafeSearch)
  • YouTube for Schools
  • Intrusion-prevention sensor (Cisco SNORT® based)
  • Advanced Malware Protection (AMP)
  • AMP Threat Grid
  • Geography-based firewall rules (MaxMind Geo-IP database)

Integrated Cellular

  • LTE bands : 2, 4, 5, 12, 13, 17, and 19 (North America). 1, 3, 5, 7, 8, 20, 26, 28A, 28B, 34, 38, 39, 40, and 41 (Worldwide)
  • 300 Mbps CAT 6 LTE
  • Additional regulatory information : PTCRB (US), RCM (ANZ, APAC), GCF (EU)

Regulatory

  • FCC (US)
  • CB (IEC)
  • CISPR (Australia/New Zealand)
  • PTCRB (US)
  • RCM (Australia/New Zealand, Asia Pacific)
  • GCF (EU)
