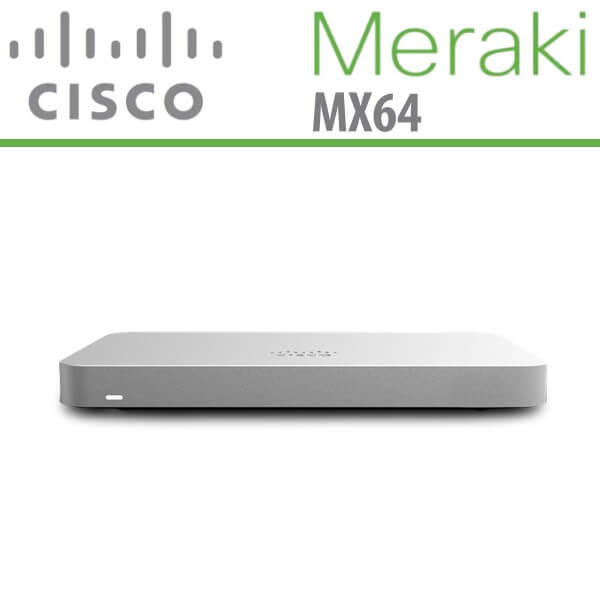

Meraki MX64 Dubai
The Meraki MX64 Dubai is a comprehensive solution that combines a router, next-generation firewall, traffic shaper, and Internet gateway. This all-in-one device can be managed centrally through a web interface. The MX64 offers a wide range of features and is incredibly simple to deploy and manage. With its intuitive web-based administration, specialized training and dedicated staff are not required. Additionally, the cloud-based centralized management feature allows for seamless multi-site networks, automatic firmware upgrades, and more. One of the key features of the Meraki MX64 Dubai is its support for intrusion prevention (IPS) through an integrated Sourcefire engine. IPS is achieved through rulesets, which are pre-defined security policies that determine the required level of protection. To ensure protection against the latest vulnerabilities, including exploits, viruses, rootkits, and more, Sourcefire updates the rulesets on a daily basis. These updates are then pushed to MX customers via the cloud within an hour, eliminating the need for manual staging or patching. In addition to threat protection, the Meraki MX64 Dubai also includes integrated malware/anti-phishing and cloud content filtering. This combination of features provides network administrators with a robust security solution. Furthermore, the MX64 supports Power Over Ethernet (POE), although licensing for this feature is sold separately.
Meraki MX64 Specifications
Networking and security
- Stateful firewall
- Auto VPN™ self-configuring site-to-site VPN
- Active Directory integration
- Identity-based policies
- Client VPN (IPsec)
- 3G / 4G failover via USB modem
Traffic shaping and application management
- Layer 7 application visibility and traffic shaping
- Application prioritization
Advanced security services
- Content filtering
- Google SafeSearch and YouTube for Schools
- Intrusion prevention (IPS)
- Antivirus and antiphishing filtering
- Requires Advanced Security License
Network and Security Services
- Stateful firewall, 1:1 NAT, DHCP, DMZ, static routing
- Identity-based policies
- Auto VPN™ self-configuring site-to-site VPN
- Client VPN (IPsec)
- User and device quarantine
- VLAN support and DHCP services
WAN Performance Management
- WAN link aggregation
- Application level (Layer 7) traffic analysis and shaping
- Automatic Layer 3 failover (including VPN connections)
- WAN uplink selection based on traffic type
- Note: web caching is not available on MX64 or MX64W models
Monitoring and Management
- Web based management and configuration
- Throughput, connectivity monitoring and alerts
- Network asset discovery and user identification
- Built-in network-wide reporting, monitoring and alerts
- Centralized policy management
- Real-time diagnostic and troubleshooting over the web
- Automatic firmware upgrades and security patches
- Searchable network-wide event logs
Interface
- WAN : 1 × 1 GbE
- LAN : 4 × 1 GbE (1 optionally available for WAN connectivity)
- USB : 1 × USB 2.0 for 3G/4G failover (supported devices)
Performance
- Stateful firewall throughput : 200 Mbps
- VPN throughput : 70 Mbps
- Recommended for small branches (up to 50 users)
Power
- Single 18W power supply
Environment
- Operating temperature : 32°F to 104°F (0°C to 40°C)
- Humidity : 5 to 95% non-condensing
