The Meraki MX68 Dubai is ideal for organizations considering a Unified Threat Management (UTM) solution, for distributed sites, campuses or datacenter VPN concentration.

Category:

Description

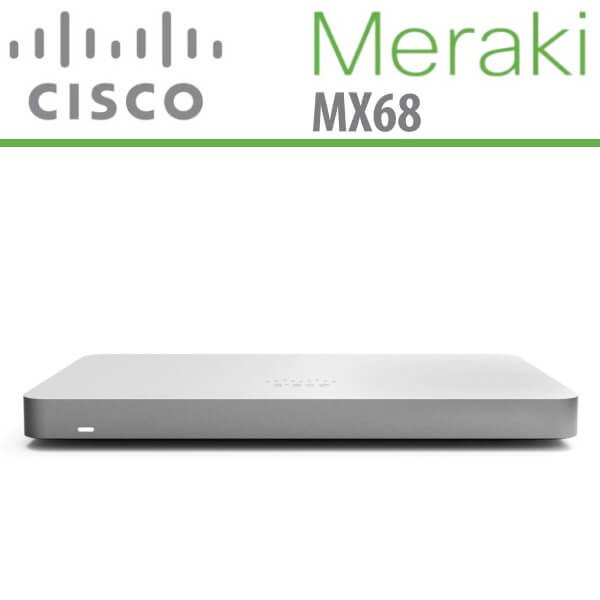

Meraki MX68 Dubai

The Meraki MX68 Dubai Security Appliances are a great choice for organizations with many distributed sites. The Meraki MX68 Dubai, being 100% cloud managed, makes installation and remote management a breeze. With a wide range of network services, there is no need for multiple appliances. These services include a layer 7 application firewall, content filtering, web search filtering, SNORT-based intrusion prevention, web caching, Intelligent WAN with multiple uplinks, and 4G failover. Make sure to get the appropriate license for your device, either enterprise or advanced security. The Meraki MX68 Dubai is an excellent option for organizations that need a Unified Threat Management (UTM) solution for distributed sites, campuses, or datacenter VPN concentration. With its 100% cloud management, the Meraki MX68 Dubai is easy to install and manage remotely. It offers a comprehensive suite of network services, eliminating the need for multiple appliances. These services include SD-WAN capabilities, application-based firewalling, content filtering, web search filtering, SNORT® based intrusion detection and prevention, Cisco Advanced Malware Protection (AMP), web caching, 4G cellular failover, and more. Our hardware and virtual appliances support Auto VPN and SD-WAN features, which can be configured in Amazon Web Services or Microsoft Azure.

Meraki MX68 Specifications

General

  • Recommended Use Cases : Small branch
  • Recommended Clients : 50
  • Stateful Firewall Throughput : 450 Mbps
  • Advanced Security Throughput : 300 Mbps
  • Maximum VPN Throughput : 200 Mbps
  • Maximum Concurrent VPN Tunnels : 50
  • WAN Interfaces ( Dedicated) : 2 x GbE RJ45, 1 x USB (cellular failover )
  • LAN Interfaces : Fixed 10 x GbE RJ45, ( 2 x PoE+)
  • Mounting : Desktop or wall mount
  • Dimensions : 11.2” x 5.8” x 1.1” (284mm x 148mm x 27mm)
  • Weight : 2.46 lb (1.12 kg)
  • Power Supply : 100W DC
  • Operating Temperature : 32°F to 104°F (0°C to 40°C)
  • Humidity : 5% to 95%

Management

  • Managed via the web using the Cisco Meraki dashboard
  • Single-pane-of-glass into managing wired and wireless networks
  • Zero-touch remote deployment (no staging needed)
  • Automatic firmware upgrades and security patches
  • Templates based multi-network management
  • Org-level two-factor authentication and single sign-on
  • Role-based administration with change logging and alerts

Monitoring and Reporting

  • Throughput, connectivity monitoring and email alerts
  • Detailed historical per-port and per-client usage statistics
  • Application usage statistics
  • Org-level change logs for compliance and change management
  • VPN tunnel and latency monitoring
  • Network asset discovery and user identification
  • Periodic emails with key utilization metrics
  • Device performance and utilization reporting
  • Netflow support
  • Syslog integration

Remote Diagnostics

  • Live remote packet capture
  • Real-time diagnostic and troubleshooting tools
  • Aggregated event logs with instant search

Network and Firewall Services

  • Stateful firewall, 1:1 NAT, DMZ
  • Identity-based policies
  • Auto VPN: Automated site-to-site (IPsec) VPN, for hub-and-spoke or mesh topologies
  • Client (IPsec L2TP) VPN
  • Multiple WAN IP, PPPoE, NAT
  • VLAN support and DHCP services
  • Static routing
  • User and device quarantine

WAN Performance Management

  • Web caching (available on the MX84, MX100, MX250, MX450)
  • WAN link aggregation
  • Automatic Layer 3 failover (including VPN connections)
  • 3G / 4G USB modem failover or single-uplink
  • Application level (Layer 7) traffic analysis and shaping
  • Ability to choose WAN uplink based on traffic type
  • SD-WAN: Dual active VPN with policy-based routing and dynamic path selection
  • CAT 6 LTE modem for failover or single-uplink1

Advanced Security Services

  • Content filtering (Webroot BrightCloud CIPA compliant URL database)
  • Web search filtering (including Google / Bing SafeSearch)
  • YouTube for Schools
  • Intrusion-prevention sensor (Cisco SNORT® based)
  • Advanced Malware Protection (AMP)
  • AMP Threat Grid
  • Geography-based firewall rules (MaxMind Geo-IP database)

Integrated Cellular

  • LTE bands : 2, 4, 5, 12, 13, 17, and 19 (North America). 1, 3, 5, 7, 8, 20, 26, 28A, 28B, 34, 38, 39, 40, and 41 (Worldwide)
  • 300 Mbps CAT 6 LTE
  • Additional regulatory information : PTCRB (US), RCM (ANZ, APAC), GCF (EU)

Regulatory

  • FCC (US)
  • CB (IEC)
  • CISPR (Australia/New Zealand)
  • PTCRB (US)
  • RCM (Australia/New Zealand, Asia Pacific)
  • GCF (EU)
