Description

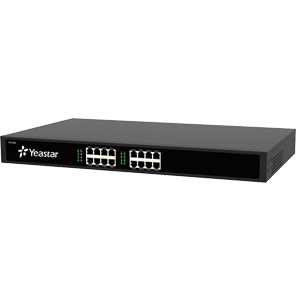

NeoGate FXS Gateway TA1600 Dubai

NeoGate TA1600 Analog VoIP Gateways are cutting-edge products that connect legacy telephones, fax machines and PBX systems with IP telephony networks and IP-based PBX systems. Featuring rich functionalities and easy configuration, NeoGate TA is ideal for small and medium enterprises that wish to integrate a traditional phone system into IP-based system. NeoGate TA helps them to preserve previous investment on legacy telephone system and reduce communication costs significantly with the true benefits of VoIP.

Fully compliant with SIP and IAX2
Provides high-quality voice compression with industry standard codecs
Line echo cancellation for 32, 64 or 128 ms echo delays
Excellent interoperability with a wide range of legacy and IP equipment

We supply and install NeoGate FXS Gateway TA1600 in Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Kaimah, Fujairah & Umm al quwain. Contact Us today to get free product consultation and quote.

NeoGate FXS Gateway TA1600 Specification

Number of Telephony Ports	16
Phone Interface	16 x RJ11 FXS ports
Protocol	SIP (RFC 3261), IAX2
Transport Protocol	UDP, TCP, TLS, SRTP
DTMF	RFC2833, SIP INFO, In-band
Codec	G.711 (alaw/ulaw), G.722, G.726, G.729A, GSM, ADPCM, Speex
Echo Cancellation	ITU-T G.168 LEC
FAX over IP	T.38 and pass-through
Signalling	Kewl Start, Loop Start
Caller ID	BELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID
Disconnect Method	Busy Tone, Polarity, Reversal
LAN	1 (10/100Mbps)
Network	Static IP, DHCP Client, Firewall, VLAN, DDNS, QoS, OpenVPN
NAT Traversal	Static NAT, STUN
Size	200 (L) mm × 137 (W) mm × 25.6 (H) mm
Power Supply	12V 1.5A
Operation Range	0°C to 40°C, 32°F to 104°F
Storage Range	-20°C to 65°C, -4°F to 149°F
Humidity	10-90% non-condensing
